4320-00-555-3300
Wearing Ring
4320005553300 005553300 C177 55-22159-19C0S R529PC76 H3299831
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
May 2023
2
Marketplace 4320-00-555-3300
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4320-00-555-3300 5+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Global Test Supply C177 Dickson C177
/fsg-43/fsc-4320/us 4320-00-555-3300 Wearing Ring 4320005553300005553300,C177 C17755-22159-19C0SR529PC76H3299831
Wearing Ring 4320005553300 005553300,C177 United States (US) 4. 4320-00-555-3300 Marketplace Restrictions
Datasheet Management C-177 RING,WEARING 92 EA NS Request Quotation FedMall Updated Every 15 Minutes 4320-00-555-3300
vendors Request Global Test Supply C177 Dickson C177 NE Related https//www.nsnlookup.com /fsg-99/fsc
NE Related https Dickson C177 NE Related Dickson C177 Dickson C177 NE Related https//www.nsnlookup.com
Dickson C177 RQST NE Updated Every Day 5940-99-828 Test Supply C177 Dickson C177 https//www.nsnlookup.com
NE Related https Dickson C177 NE Related Dickson C177 Dickson C177 NE Related https//www.nsnlookup.com
Wearing Ring 4320005553300 005553300,C177 4510/us 4510-01-119-5583 Double Faucet 4510011195583
Restrictions 4320-00-555-3300
4320-00-555-3300 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-555-3300
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-555-3300
- US Air Force (FGGC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Supplementary Collaborators:
- GTHD
Approved Sources 4320-00-555-3300
- Part Number
- Manufacturer
- Status
- C177
- Manufacturer
- 63857 - Circor Naval Solutions Llc (Active)
- Primary Buy
- Primary Buy
- 55-22159-19C0S
- 52081 - Euramco Safety Inc (Active)
- Secondary Buy
- Secondary Buy
- R529PC76
- 63857 - Circor Naval Solutions Llc (Active)
- Secondary Buy
- Secondary Buy
- H3299831
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4320-00-555-3300
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Distance From End [AYRS]
- 0.375 Inches Nominal
- Body Inside Diameter [ADAS]
- 9.735 Inches Minimum And 9.737 Inches Maximum
- Body Outside Diameter [ADAR]
- 10.499 Inches Minimum And 10.500 Inches Maximum

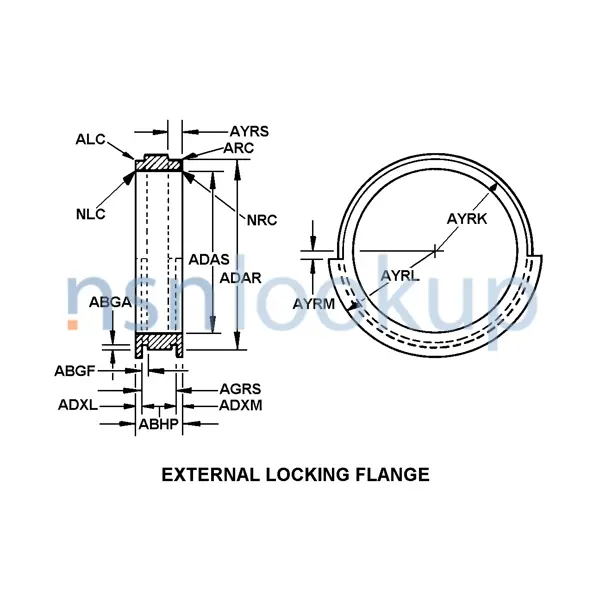

- Body Style [AAQL]
- External Locking Flange
- Corner Shape [BZLX]
- Square All Corners
- Distance Below Centerline [AYRM]
- 0.156 Inches Nominal
- Distance Between Flanges [AGRS]
- 0.750 Inches Minimum And 0.753 Inches Maximum
- Groove Depth [ABGA]
- 0.094 Inches Nominal
- Groove Width [ABGF]
- 0.125 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-C-390 Fed Spec Single Material Response
- Material [MATT]
- Copper Alloy
- Largest External Anchor Flange Radius [AYRL]
- 5.438 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.250 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.250 Inches Nominal
- Smallest External Anchor Flange Radius [AYRK]
- 5.156 Inches Nominal
- Overall Length [ABHP]
- 1.250 Inches Nominal
- Surface Finish [CSYM]
- 125.0 Microinches All Surfaces
Weapon Systems (WSDC) 4320-00-555-3300
DLA Procurement Analysis 4320-00-555-3300
Management Data 4320-00-555-3300
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-00-555-3300
Freight Information 4320-00-555-3300
4320-00-555-3300 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-00-555-3300 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-00-555-3300 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-555-3300 is not classified as a special type of cargo when transported by water. 4320-00-555-3300 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
