4320-00-520-8496
Wearing Ring
4320005208496 005208496 08-984-864-002
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
August 2023
3
Marketplace 4320-00-520-8496
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-520-8496 1+ Documents (More...)
United States (US) 4. 4320-00-520-8496 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 4320-00-520-8496 RQST Updated Every Day 4320-00-520-8496 RQST NE Related Documents
Restrictions 4320-00-520-8496
4320-00-520-8496 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-520-8496
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-520-8496
- National Security Agency (DGX1)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AX
Approved Sources 4320-00-520-8496
- Part Number
- Manufacturer
- Status
- 08-984-864-002
- Manufacturer
- 92392 - Allis-Chalmers Corp (Obsolete)
- Original Design
- Original Design
Datasheet 4320-00-520-8496
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Anchor Flange Width [AYRT]
- 0.240 Inches Minimum And 0.245 Inches Maximum
- Body Inside Diameter [ADAS]
- 7.860 Inches Nominal
- Body Outside Diameter [ADAR]
- 8.373 Inches Minimum And 8.374 Inches Maximum

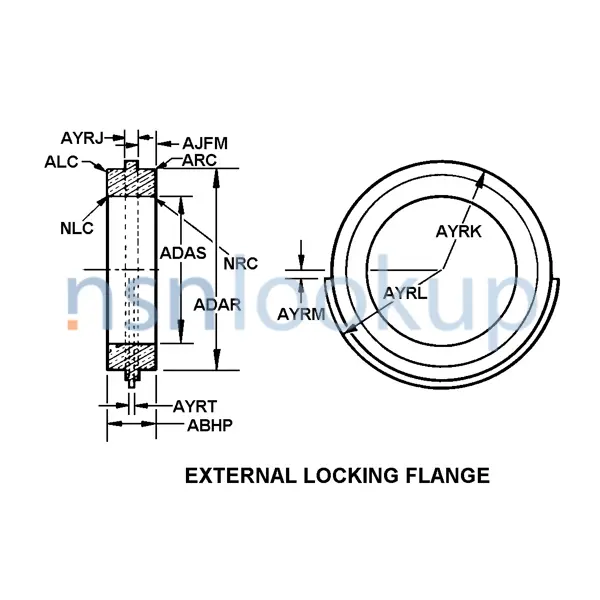

- Body Style [AAQL]
- External Locking Flange
- Center Flange Thickness [AYRJ]
- 0.250 Inches Nominal
- Corner Shape [BZLX]
- Square All Corners
- Distance Below Centerline [AYRM]
- 0.062 Inches Nominal
- End To Flange Distance [AJFM]
- 0.625 Inches Nominal
- Material [MATT]
- Copper Alloy
- Largest External Anchor Flange Radius [AYRL]
- 4.438 Inches Nominal
- Smallest External Anchor Flange Radius [AYRK]
- 4.281 Inches Nominal
- Overall Length [ABHP]
- 1.312 Inches Nominal
