4320-00-399-6258

Wearing Ring

4320003996258 003996258 234301-1PH 255429-2 H4320-399-6258 136719 1170P SL6204PC18 3617P SL4222PC5 SL5427PC33 SL5695PC18 1177P 47P SL5416APC5 SL5429PC33 SL6075PC18 16027

A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
21

NATO Data Quality

AAQL Style 18A for 4320-00-399-6258 1/1 — NSN 4320-00-399-6258 (Identification) 1/1

Marketplace 4320-00-399-6258

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

47P RING,WEARING 1 EA NS

Subscribe to View Vendor Details...

136719 RING,WEARING 25 EA NS

Subscribe to View Vendor Details...

16027 RING,WEARING 99 EA NS

Subscribe to View Vendor Details...

255429-2 RING,WEARING 1 EA NS

Subscribe to View Vendor Details...

47P RING,WEARING 225 EA NS

Subscribe to View Vendor Details...

16027 RING,WEARING 3 EA NS

Subscribe to View Vendor Details...

4320-00-399-6258 RING,WEARING 2 EA NS

Updated Every Day

4320-00-399-6258 RQST NE

Updated Every Day

4320-00-399-6258 RQST

Updated Every Day

4320-00-399-6258 RQST NE

Restrictions 4320-00-399-6258

4320-00-399-6258 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 4320-00-399-6258

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4320-00-399-6258

US Navy (N9BC)
Effective Date:: 1 Aug 2004
Former MOE Rule:: NICD
Supplementary Collaborators:: HD; AMC 1 AMSC G IMC Z IMCACTY GH

Spain (YB01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 4320-00-399-6258

Part Number
Manufacturer
Status
255429-2: 0UBG9 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
H4320-399-6258: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
136719: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
255429-2: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1170P: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL6204PC18: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
3617P: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL4222PC5: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL5427PC33: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL5695PC18: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1177P: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
47P: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL5416APC5: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL5429PC33: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
SL6075PC18: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
16027: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
234301-1PH: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 4320-00-399-6258

Characteristic
Specifications
FIIG: A19900
Material [MATT]: Copper Alloy

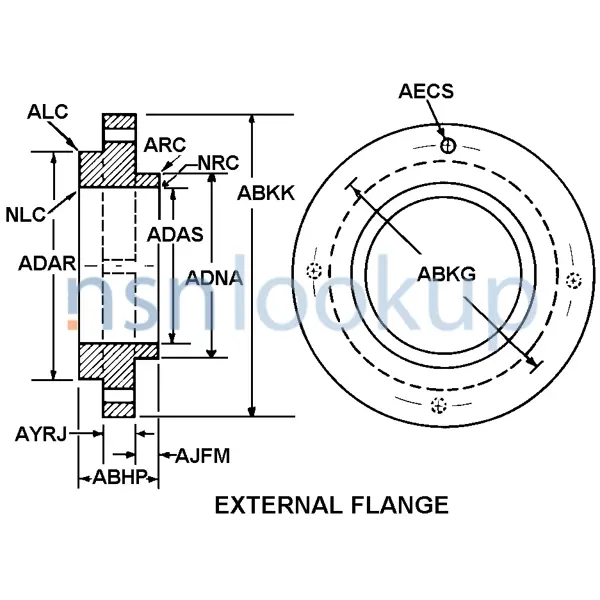

Body Style [AAQL]: External Flange
