4320-00-275-9374
Wearing Ring
4320002759374 002759374 962470-01 10202-1 RY-162470 962470-1PH 962470PH
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
November 2023
5
Marketplace 4320-00-275-9374
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-275-9374 1+ Documents (More...)
United States (US) 4. 4320-00-275-9374 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 4320-00-275-9374 RQST NE Updated Every Day 4320-00-275-9374 RQST
Restrictions 4320-00-275-9374
4320-00-275-9374 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-275-9374
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-275-9374
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDHX
Approved Sources 4320-00-275-9374
- Part Number
- Manufacturer
- Status
- 962470-01
- Manufacturer
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Primary Buy
- Primary Buy
- 962470-1PH
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Original Design
- Original Design
- 10202-1
- 54402 - Rps-Fl, Inc. (Active)
- Secondary Buy
- Secondary Buy
- RY-162470
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Secondary Buy
- Secondary Buy
- 962470PH
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- RY-162470
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4320-00-275-9374
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Material [MATT]
- Nickel Alloy

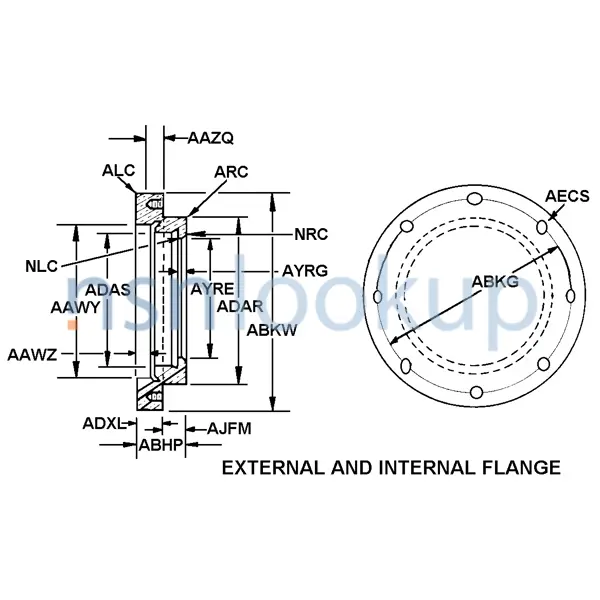

- Body Style [AAQL]
- External And Internal Flange
- Counterbore Diameter [AAWY]
- 10.875 Inches Nominal
- Counterbore Depth [AAWZ]
- 1.569 Inches Nominal
- Hole Depth [AAZQ]
- 0.500 Inches Nominal
- Overall Length [ABHP]
- 1.992 Inches Nominal
- Bolt Circle Diameter [ABKG]
- 13.000 Inches Nominal
- Flange Diameter [ABKK]
- 13.999 Inches Nominal
- Body Outside Diameter [ADAR]
- 12.000 Inches Nominal
- Body Inside Diameter [ADAS]
- 9.750 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 1.000 Inches Nominal
- End To Flange Distance [AJFM]
- 0.879 Inches Nominal
- Internal Flange Inside Diameter [AYRE]
- 9.625 Inches Nominal
- Internal Flange Width [AYRG]
- 9.750 Inches Nominal
- Bolt Hole Quantity [AECS]
- 6
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.558 Inches Nominal
- Corner Shape [BZLX]
- Square All Corners
Weapon Systems (WSDC) 4320-00-275-9374
DLA Procurement Analysis 4320-00-275-9374
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4320-00-275-9374
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-00-275-9374
Freight Information 4320-00-275-9374
4320-00-275-9374 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-00-275-9374 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-00-275-9374 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-275-9374 is not classified as a special type of cargo when transported by water. 4320-00-275-9374 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4320-00-275-9374
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Procurement History 4320-00-275-9374 1 Records
Contracting Technical Data File (CTDF) 4320-00-275-9374 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
