4320-00-267-3297

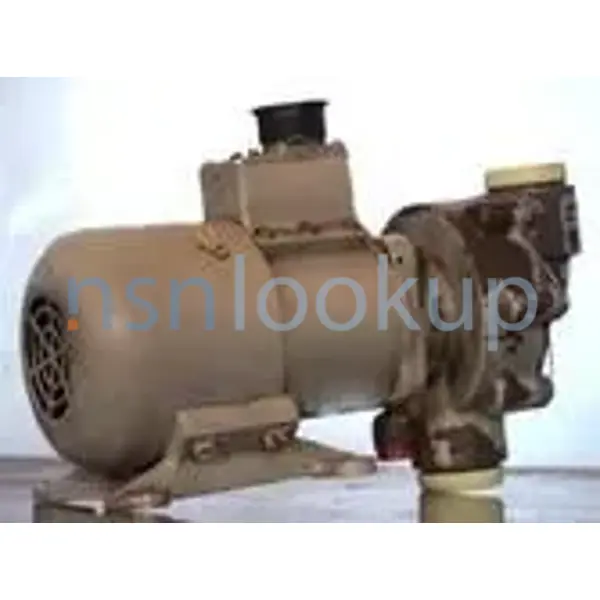

Centrifugal Pump Unit
4320002673297 002673297 BS4-1513 BS4-1513V1A
An assembled unit consisting of a commonly mounted centrifugal pump(s), prime mover(s), and the necessary components to provide for a complete operation. View more Centrifugal Pump Unit
May 2023
3
Marketplace 4320-00-267-3297
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-267-3297 2+ Documents (More...)
BUY NE FedMall Updated Every Day 4320-00-267-3297 RQST NE Updated Every Day 4320-00-267-3297 RQST
Updated Every Day 4320-00-267-3297 RQST NE Related Documents 4320-00-267-3297 2+ Documents ( More...
www.nsnlookup.com /fsg-43/fsc-4320/us 4320-00-360-1079 Centrifugal Pump Unit 4320003601079003601079 BS4-1513
Documents 4320-00-360-1079 2+ Documents ( More... https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320-00-267-3297
Restrictions 4320-00-267-3297
4320-00-267-3297 is a Centrifugal Pump Unit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-00-267-3297
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-267-3297
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4320-00-267-3297
- Part Number
- Manufacturer
- Status
- BS4-1513
- Manufacturer
- 63857 - Circor Naval Solutions Llc (Active)
- Incomplete Reference
- Incomplete Reference
- BS4-1513V1A
- 63857 - Circor Naval Solutions Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4320-00-267-3297
- Characteristic
- Specifications
- FIIG
- Specifications
- A19400
- Centrifugal Pump Design [AHZE]
- Radial Flow
- Centrifugal Pump Impeller Quantity [AHZF]
- 1
- Centrifugal Pump Impeller Suction Type [AHZG]
- Single
- Cooling Method [AENK]
- Self Ventilated
- Current Rating In Amps [AMPS]
- 4.3
- Current Type [ACDC]
- Dc
- Discharge Connection Quantity [AAYV]
- 1
- Discharge Connection Type [AAYW]
- Round Flange
- Environmental Protection [ADZC]
- Dripproof
- Maximum Discharge Flow Rate [AHYV]
- 4.0 Gallons Per Minute
- Media For Which Designed [ACKL]
- Water, Fresh
- Operating Speed At Rated Capacity [AHYZ]
- 2650.0 Revolutions Per Minute
- Inclosure Type [AKNA]
- Partially Inclosed
- Intake Connection Type [AAYU]
- Round Flange
- Intake Connection Quantity [AAYT]
- 1
- Prime Mover Quantity [AAXH]
- 1
- Prime Mover Type [AKDJ]
- Electric Motor
- Prime Mover Cooling Medium [AAXS]
- Air
- Pump Quantity [AENC]
- 1
- Pumping Element Operating Position [AHZA]
- Horizontal
- Reference Number Differentiating Characteristics [ZZZY]
- Provided W/Controller
- Voltage In Volts [ELEC]
- 250.0
- Stage Quantity [AAYD]
- 1
- Total Head [AHYX]
- 67.000 Feet
DLA Procurement Analysis 4320-00-267-3297
Management Data 4320-00-267-3297
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-00-267-3297
Freight Information 4320-00-267-3297
4320-00-267-3297 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-00-267-3297 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 4320-00-267-3297 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-00-267-3297 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-267-3297 is not classified as a special type of cargo when transported by water. 4320-00-267-3297 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
