4320-00-258-7797
Piston Connecting Rod
4320002587797 002587797 1263906
A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead. View more Piston Connecting Rod
May 2023
9
Marketplace 4320-00-258-7797
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-258-7797 1+ Documents (More...)
United States (US) 4. 4320-00-258-7797 Marketplace Restrictions Approved Sources Datasheet Management
CONNECTING ROD,PISTON 46 EA NS Request Quotation Updated Every Day 4320-00-258-7797 RQST NE Updated
Restrictions 4320-00-258-7797
4320-00-258-7797 is a Piston Connecting Rod that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-258-7797
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-258-7797
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4320-00-258-7797
- Part Number
- Manufacturer
- Status
- 1263906
- Manufacturer
- 50492 - Idsc Holdings Dba Equiserv (Active)
- Primary Buy
- Primary Buy
- 1263906
- 06350 - Asset Systems, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4320-00-258-7797
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-D
- Edge Radius [BQBN]
- 0.438 Inches Nominal
- End Hole Inside Diameter [BQBP]
- 0.312 Inches Nominal
- Bearing Replaceability [BQBW]
- Replaceable
- Body Width At Piston Connecting End [BRNH]
- 0.688 Inches Nominal
- Body Width At Shaft Connecting End [BRNJ]
- 0.750 Inches Nominal
- Body Thickness At Piston Connecting End [BRNK]
- 0.625 Inches Nominal
- Body Thickness At Shaft Connecting End [BRNL]
- 0.625 Inches Nominal
- Center To Center Effective Length [BRNG]
- 4.917 Inches Nominal
- Cross-Sectional Shape Style [AAGR]

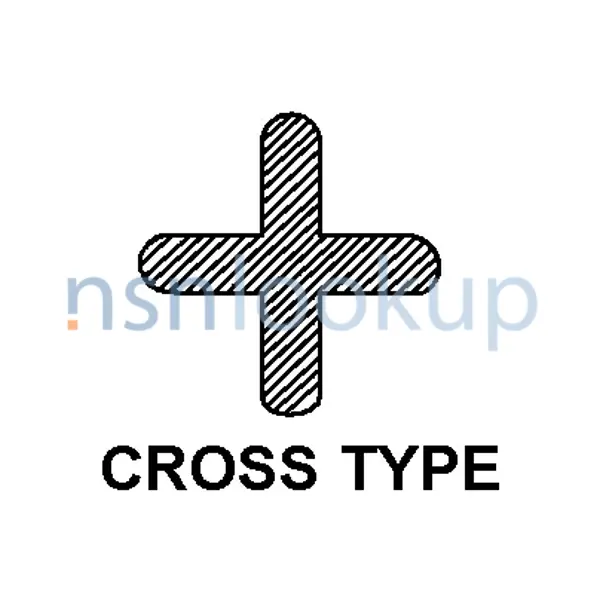

- Cross Type
- End Thickness [AXPW]
- 0.656 Inches Nominal
- Fabrication Method [AARN]
- Cast
- Material [MATT]
- Aluminum Alloy
- Shaft Connecting End Bearing [BQCB]
- Not Included
- Shaft Connecting End Edge Radius [BQCF]
- 0.656 Inches Nominal
- Shaft Connecting End Hole Inside Diameter [BQCC]
- 0.481 Inches Nominal
- Shaft Connecting End Lubrication Method [BQDB]
- Splash
- Shaft Connecting End Style [AKEU]
- Automotive Standard Split Bearing 2 Bolt
- Shaft Connecting End Lubrication Drill Feature [BQCZ]
- Not Included
- Shaft Connecting End Width [BQCG]
- 1.937 Inches Nominal
- Piston Connecting End Lubrication Drill Feature [BQBY]
- Not Included
- Piston Connecting End Lubrication Method [BQBZ]
- Splash
- Piston Connecting End Bearing [BQBT]
- Included
- Piston End Connection Style [BXYS]
- Small Engine And Automotive Standard
DLA Procurement Analysis 4320-00-258-7797
Management Data 4320-00-258-7797
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4320-00-258-7797
Freight Information 4320-00-258-7797
4320-00-258-7797 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 104340. A Sub NMFC of X. It has a NMFC Description of BARS/RODS NOI I/S. 4320-00-258-7797 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53760 which rates the freight between FCL and LCL. 4320-00-258-7797 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4320-00-258-7797 is not classified as a special type of cargo when transported by water. 4320-00-258-7797 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
