4320-00-062-8255
Wearing Ring
4320000628255 000628255 035-42661
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
November 2023
11
Marketplace 4320-00-062-8255
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-062-8255 5+ Documents (More...)
United States (US) 4. 4320-00-062-8255 Marketplace Restrictions Approved Sources Datasheet Management
PLATE 18 EA NS Request Quotation Updated Every Day 4320-00-062-8255 RQST NE Updated Every Day 4320-00
www.nsnlookup.com /fsg-43/fsc-4320/fr 4320-14-346-4515 Hydraulic Motor-Pump Valve Plate 143464515 035-42661
-42661Y035-42661 A rigid item of various shapes https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320-00-062-8255
Wearing Ring 4320000628255 000628255 for $1 a day Upgrade your Account Upgrade 4320-00-062-8255Wearing
Ring4320000628255 000628255 035-42661 a Quotation from participating marketplace vendors Request Subscribe
Wearing Ring 4320000628255 000628255 Motor-Pump Valve Plate 143464515 -0 035-42661Y035 https//www.nsnlookup.com
-0 035-42661Y 035-42661 A rigid item of various shapes, with a centrally located aperture designed with
Restrictions 4320-00-062-8255
4320-00-062-8255 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-062-8255
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-062-8255
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Jun 1995
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4320-00-062-8255
- Part Number
- Manufacturer
- Status
- 035-42661
- Manufacturer
- 9F512 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 4320-00-062-8255
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Material [MATT]
- Iron

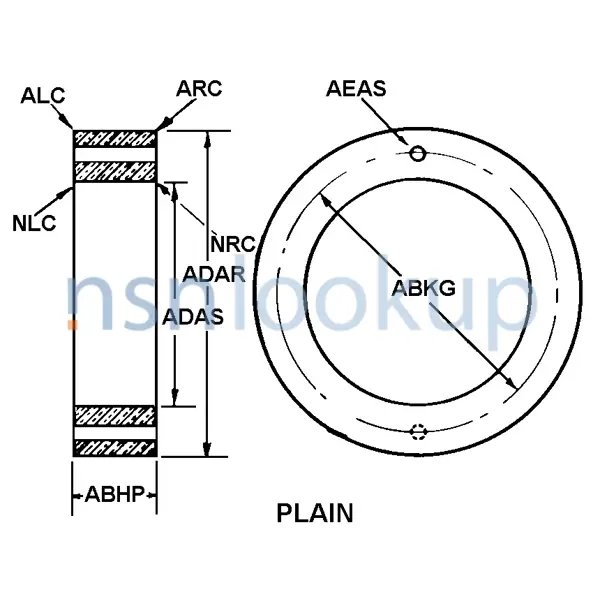

- Body Style [AAQL]
- Plain
- Overall Length [ABHP]
- 0.750 Inches Nominal
- Bolt Circle Diameter [ABKG]
- 5.000 Inches Nominal
- Body Outside Diameter [ADAR]
- 7.500 Inches Nominal
- Body Inside Diameter [ADAS]
- 3.375 Inches Nominal
- Bolt Hole Quantity [AECS]
- 2
- Mounting Hole Thread Series Designator [CMLK]
- Unc
- Mounting Hole Nominal Thread Size [CQLT]
- 0.250 Inches
- Corner Shape [BZLX]
- Chamfered Inside Left Corner
- Corner Shape [BZLX]
- Square Inside Right Corner
- Corner Shape [BZLX]
- Chamfered Outside Left Corner
- Corner Shape [BZLX]
- Square Outside Right Corner
- Chamfer Angle [CSYT]
- 15.0 Degrees Nominal Inside Left Corner
- Chamfer Angle [CSYT]
- 25.0 Degrees Nominal Outside Left Corner
- Chamfer Length [AAZP]
- 0.250 Inches Nominal Inside Left Corner
- Chamfer Length [AAZP]
- 0.438 Inches Nominal Outside Left Corner
Weapon Systems (WSDC) 4320-00-062-8255
DLA Procurement Analysis 4320-00-062-8255
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4320-00-062-8255
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-00-062-8255
Freight Information 4320-00-062-8255
4320-00-062-8255 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-00-062-8255 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-00-062-8255 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-062-8255 is not classified as a special type of cargo when transported by water. 4320-00-062-8255 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
