4310-01-594-6974

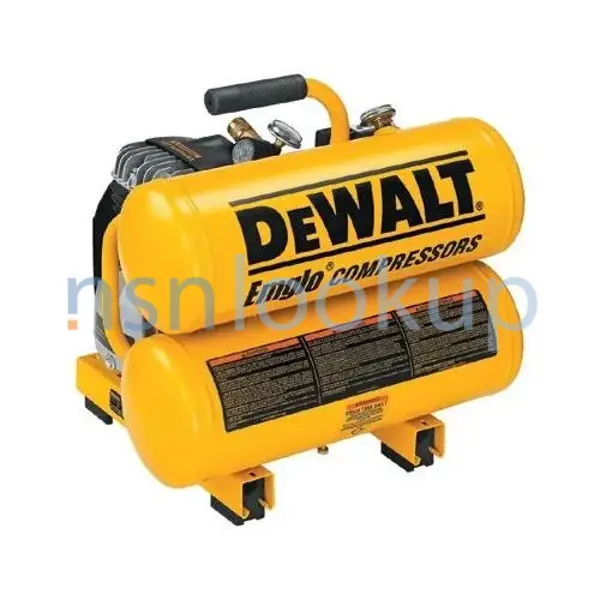

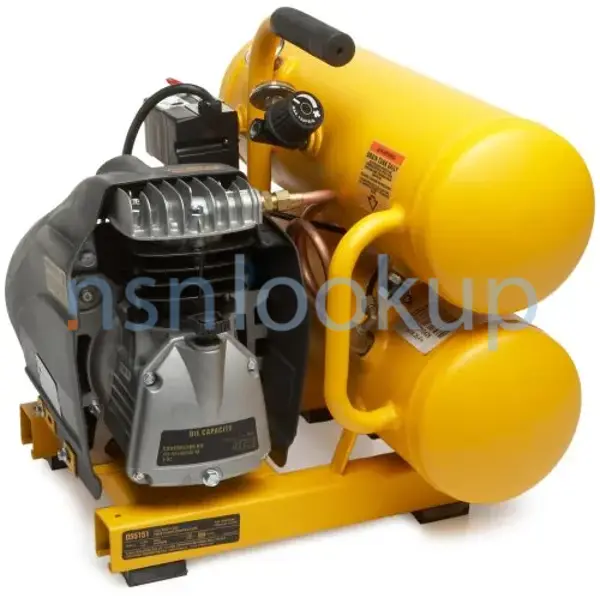

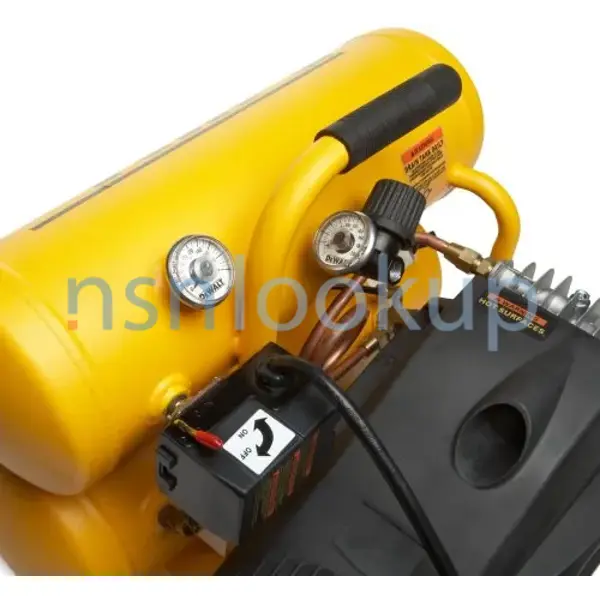

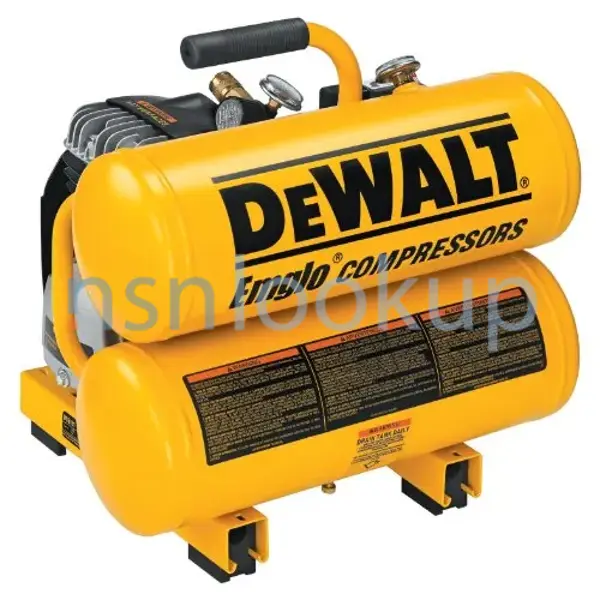

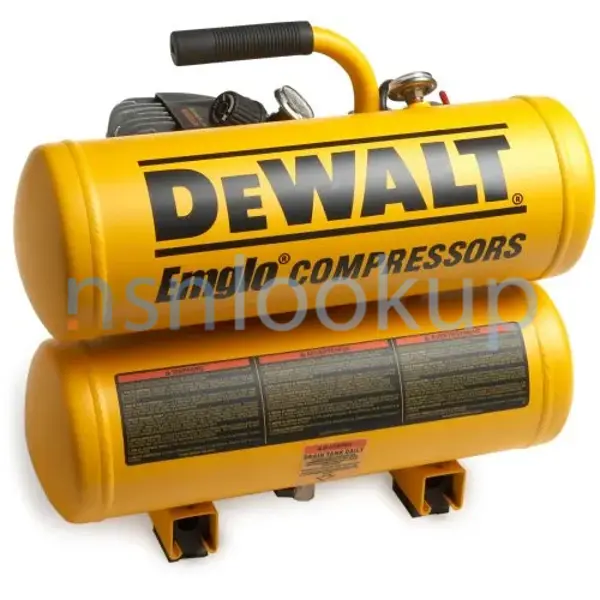

Reciprocating Compressor Unit
4310015946974 015946974 D55151
An assembled unit consisting of a commonly mounted reciprocating compressor(s) and a prime mover(s). For items with additional equipment which extends the function of the unit beyond the delivery of compressed air or gas, see PNEUMATIC TOOL AND COMPRESSOR OUTFIT, or more specific names, as applicable. Excludes AUXILIARY SET, ENGINE DRIVEN. View more Reciprocating Compressor Unit
May 2023
4
Marketplace 4310-01-594-6974
Request a Quotation from participating marketplace vendors
Related Documents 4310-01-594-6974 2+ Documents (More...)
Every Day 4310-01-594-6974 RQST NE Updated Every Day 4310-01-594-6974 RQST Updated Every Day 4310-01
/fsg-43/fsc-4310/us 4310-01-594-6974 Reciprocating Compressor Unit 4310015946974 Photo 1/5 4310-01-594
Restrictions 4310-01-594-6974
4310-01-594-6974 is a Reciprocating Compressor Unit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4310-01-594-6974
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-01-594-6974
- Canada (ZC01)
- Effective Date:
- 1 Apr 2011
Approved Sources 4310-01-594-6974
- Part Number
- Manufacturer
- Status
- D55151
- Manufacturer
- 07429 - Black And Decker Us Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4310-01-594-6974
- Characteristic
- Specifications
- FIIG
- Specifications
- A026A0
- Gas For Which Designed [AAXK]
- Air
- Discharge Flow Rate [AAXL]
- 3.2 Cubic Feet Per Minute
- Compressor Speed At Rated Capacity In Rpm [AAYS]
- 3400.0
- Compressor Cooling Medium [AAXR]
- Oil
- Mounting Type [AAXX]
- Hand Carry
- Prime Mover Type [AKDJ]
- Electric Motor
- Voltage In Volts And Current Type [CSBH]
- 120.0 Ac
- Frequency In Hertz [FREQ]
- 60.0
- Receiver Tank Capacity [AAYR]
- 4.0 Cubic Feet
- Unpackaged Unit Length [AJAF]
- 18.5 Inches Nominal
- Unpackaged Unit Width [AJAG]
- 15.0 Inches Nominal
- Unpackaged Unit Height [AJAH]
- 16.75 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Electric Hand Carry Compressor
Similar Supply Items to 4310-01-594-6974
Freight Information 4310-01-594-6974
4310-01-594-6974 has freight characteristics managed by the Department of the Air Force.. 4310-01-594-6974 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
