4310-01-445-5525
Valve Spring Retainer Lock
4310014455525 014455525 22461-1 N-830
A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers. View more Valve Spring Retainer Lock
May 2023
2
Marketplace 4310-01-445-5525
Request a Quotation from participating marketplace vendors
Related Documents 4310-01-445-5525 4+ Documents (More...)
BUY NE FedMall Updated Every Day 4310-01-445-5525 RQST NE Updated Every Day 4310-01-445-5525 RQST
) https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310-01-445-5525 Valve Spring Retainer Lock 4310014455525
for $1 a day Upgrade your Account Upgrade 4820-01-276 -3396Globe Valve4820012763396 012763396 SW-22461 1
Valve Spring Retainer Lock 4310014455525 RQST NE Updated Every Day 4310-01-445-5525 RQST https/
PIECE 75L1 N-830 PIECE 75 N-830 SHT 1 PC 75C 104-01230L1 N-830 SHT 1 PC 75CL1 An instrument that senses
Valve Spring Retainer Lock 4310014455525 932-7879 Part NumberManufacturerStatus215-22461-1 https
ZP01) Effective Date:1 Apr 1991 Approved Sources 1650-00-932-7879 Part NumberManufacturerStatus215-22461-1
Restrictions 4310-01-445-5525
4310-01-445-5525 is a Valve Spring Retainer Lock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4310-01-445-5525
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-01-445-5525
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4310-01-445-5525
- Part Number
- Manufacturer
- Status
- 22461-1
- Manufacturer
- 26505 - Grove Valve Operations (Active)
- Incomplete Reference
- Incomplete Reference
- N-830
- 26505 - Grove Valve Operations (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4310-01-445-5525
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-H
- End Item Identification [AGAV]
- Navy Weapons Code Jm, Emory Class As
- Material [MATT]
- Steel Corrosion Resisting
- Largest Outside Diameter [AGWM]
- 0.375 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Unf
- Smallest Outside Diameter [AGWL]
- 0.312 Inches Nominal
- Overall Length [ABHP]
- 0.531 Inches Nominal
- Special Features [FEAT]
- Specially Cleaned For Oxygen Use For Underwater Diving System; Next Higher Assembly 4820-01-440-8574
- Thread Provision [AFEW]
- Threaded
- Thread Size [ABUJ]
- 7/16-20
- Width Across Flats [ASDB]
- 0.500 Inches Nominal

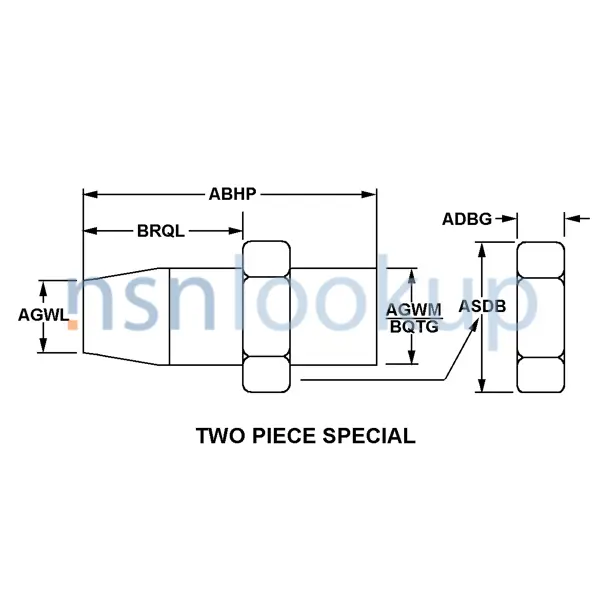

- Style Designator [STYL]
- Two Piece Special
- Thread Direction [AAJF]
- Right-Hand
DLA Procurement Analysis 4310-01-445-5525
Management Data 4310-01-445-5525
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4310-01-445-5525
Freight Information 4310-01-445-5525
4310-01-445-5525 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 4310-01-445-5525 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4310-01-445-5525 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 4310-01-445-5525 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4310-01-445-5525 is not classified as a special type of cargo when transported by water. 4310-01-445-5525 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4310-01-445-5525 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
