4310-00-967-4743
Piston Pin
4310009674743 009674743 62F69
A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin
May 2023
4
Marketplace 4310-00-967-4743
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-967-4743 1+ Documents (More...)
4310-00-967-4743 RQST NE Related Documents 4310-00-967-4743 1+ Documents ( More... ) https//www.nsnlookup.com
/fsg-43/fsc-4310/us 4310-00-967-4743 Piston Pin 4310009674743 009674743,62F69 Updated Every Day 4310
Restrictions 4310-00-967-4743
4310-00-967-4743 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-967-4743
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-967-4743
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDHX
Approved Sources 4310-00-967-4743
- Part Number
- Manufacturer
- Status
- 62F69
- Manufacturer
- 6X081 - Cooper Industries (Obsolete)
- Primary Buy
- Primary Buy
- 62F69
- 24047 - Cooper Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4310-00-967-4743
- Characteristic
- Specifications
- FIIG
- Specifications
- A09500
- Distance From End To Slot Center [ANTW]
- 2.688 Inches Nominal
- Body Length [ADAQ]
- 5.3750 Inches Nominal

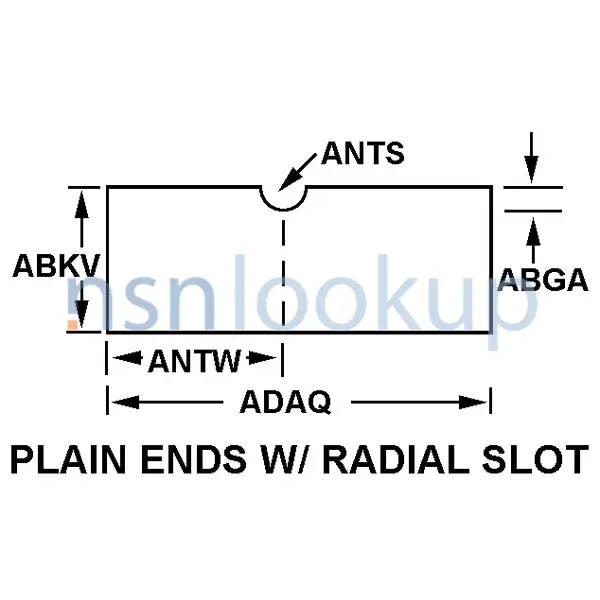

- Body Style [AAQL]
- Plain Ends W/Radial Slot
- Bore Diameter [ABXV]
- 0.8750 Inches Nominal
- Bore Style [ANTP]
- Straight-Thru Bore
- Casehardening Indicator [AASG]
- Not Casehardened
- Groove Depth [ABGA]
- 0.0781 Inches Nominal
- Material [MATT]
- Steel
- Outside Diameter [ABKV]
- 1.28100 Inches Nominal
- Radial Groove Radius [ANTS]
- 0.438 Inches Nominal
- Special Features [FEAT]
- Locking Slot
Weapon Systems (WSDC) 4310-00-967-4743
DLA Procurement Analysis 4310-00-967-4743
Management Data 4310-00-967-4743
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4310-00-967-4743
Freight Information 4310-00-967-4743
4310-00-967-4743 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126670. A Sub NMFC of X. It has a NMFC Description of PINS,BAR SHOCK ABSORBER. 4310-00-967-4743 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 4310-00-967-4743 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4310-00-967-4743 is not classified as a special type of cargo when transported by water. 4310-00-967-4743 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4310-00-967-4743
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Vendor's Fiberboard Box
Contracting Technical Data File (CTDF) 4310-00-967-4743 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
