4310-00-966-7143
Piston Ring
4310009667143 009667143 960145-29
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
November 2023
8
Marketplace 4310-00-966-7143
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-966-7143 1+ Documents (More...)
RQST Updated Every Day 4310-00-966-7143 RQST NE Related Documents 4310-00-966-7143 1+ Documents ( More
... ) https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310-00-966-7143 Piston Ring 4310009667143 009667143,960145
Restrictions 4310-00-966-7143
4310-00-966-7143 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-966-7143
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-966-7143
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Supplementary Collaborators:
- GTKE
- Israel (YD01)
- Effective Date:
- 1 Mar 2017
- Singapore (YJ)
- United States of America (ZZ)
Approved Sources 4310-00-966-7143
- Part Number
- Manufacturer
- Status
- 960145-29
- Manufacturer
- 82106 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 960145-29
- 09257 - Trelleborg Sealing Solutions Us, (Active)
- Secondary Buy
- Secondary Buy
- 960145-29
- 93835 - Parker-Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4310-00-966-7143
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Distance From Pin Hole Centerline To Ring Joint Centerline [ACXS]
- 0.903 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Plain Rectangular, Straight Face, W/Expander
- Fsc Application Data [ZZZV]
- Serocylinder,Hydraulic Aircraft
- Material Document And Classification [MDCL]
- Zz53 Tfe Conpound Mfr Ref Single Material Response Overall
- Material [MATT]
- Plastic Overall
- Joint Style [ADTE]
- Vertical Joint
- Pinhole Diameter [ACXU]
- 0.046 Inches Minimum And 0.050 Inches Maximum
- Radial Wall Thickness [ACXF]
- 0.1850 Inches Minimum And 0.1890 Inches Maximum
- Ring Style [ACXD]
- Concentric
- Ring Width Pin Hole Depth [ACXR]
- 0.090 Inches Minimum And 0.096 Inches Maximum
- Overall Width [ACXJ]
- 0.0590 Inches Minimum And 0.0610 Inches Maximum

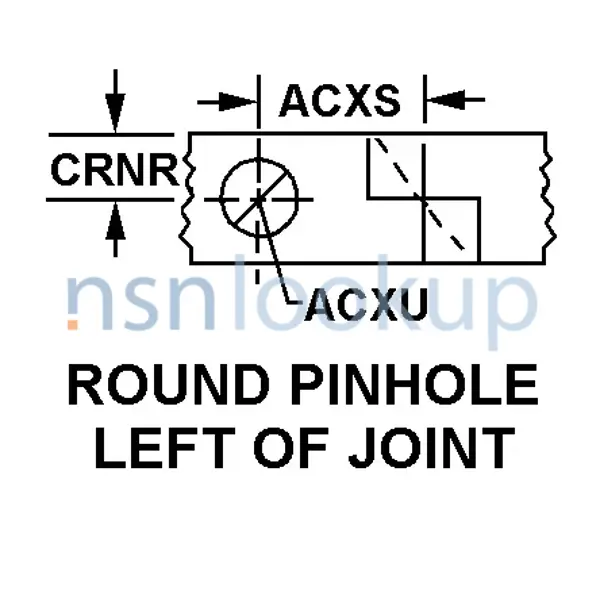

- Pin Hole Style [ACXL]
- Round Pinhole Left Of Joint
- Standard Bore Diameter [ACXZ]
- 1.807 Inches
Weapon Systems (WSDC) 4310-00-966-7143
DLA Procurement Analysis 4310-00-966-7143
- Last Stock Position:
- 43 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4310-00-966-7143
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 1650
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 1650
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4310-00-966-7143
Freight Information 4310-00-966-7143
4310-00-966-7143 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 4310-00-966-7143 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 4310-00-966-7143 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4310-00-966-7143 is not classified as a special type of cargo when transported by water. 4310-00-966-7143 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 4310-00-966-7143 1 Records
Contracting Technical Data File (CTDF) 4310-00-966-7143 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
