4310-00-892-4906
Piston Pin
4310008924906 008924906 6088B 200113P PC154 200113PPC154
A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin
November 2023
20
Marketplace 4310-00-892-4906
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-892-4906 2+ Documents (More...)
RQST NE Updated Every Day 4310-00-892-4906 RQST Updated Every Day 4310-00-892-4906 RQST NE Related
Documents 4310-00-892-4906 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310
Piston Pin 4310008924906 008924906,,6088B for $1 a day Upgrade your Account Upgrade 4310-00-892
-4906Piston Pin4310008924906 008924906 6088B 200113P Unloader Plug 4730009368810009368810 RQST NE Updated
Restrictions 4310-00-892-4906
4310-00-892-4906 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-892-4906
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-892-4906
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHX
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4310-00-892-4906
- Part Number
- Manufacturer
- Status
- 6088B
- Manufacturer
- 0AT62 - Siemens Energy, Inc. (Active)
- Original Design
- Original Design
- 200113P PC154
- 57140 - Salem Manufacturing & Sales Inc (Active)
- Secondary Buy
- Secondary Buy
- 200113PPC154
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6088B
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6088B
- 93236 - Dresser-Rand Co Worthington (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 200113PPC154
- 93236 - Dresser-Rand Co Worthington (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6088B
- 830Q4 - Curtiss-Wright Electro-Mechanical (Active)
- Advisory Reference
- Advisory Reference
- 200113PPC154
- 0AT62 - Siemens Energy, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 6088B
- 8FGX3 - Curtiss-Wright Electro-Mechanical (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4310-00-892-4906
- Characteristic
- Specifications
- FIIG
- Specifications
- A09500
- Distance From Centerline Of Hole To End Of Pin [ABRE]
- 0.344 Inches Nominal
- End Chamfer Angle In Deg [ABQM]
- 45.0
- Body Length [ADAQ]
- 3.6880 Inches Nominal

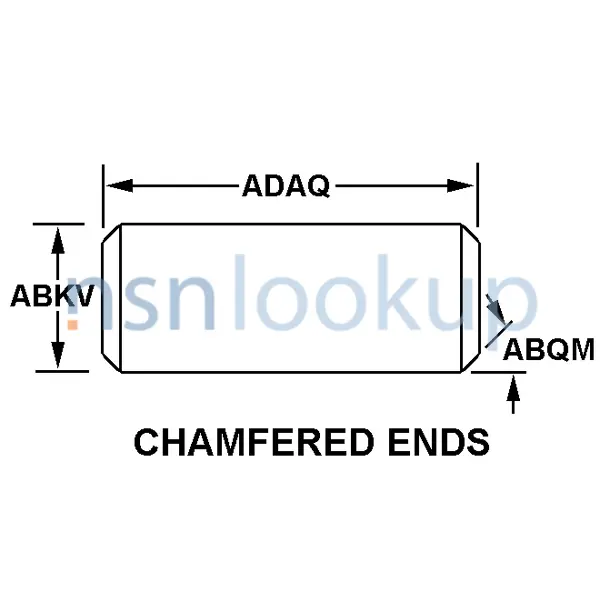

- Body Style [AAQL]
- Chamfered Ends
- Casehardening Indicator [AASG]
- Casehardened
- Center To Center Distance Between Holes [ABRF]
- 3.0000 Inches Nominal
- First Hole Diameter [ABRC]
- 0.281 Inches Nominal
- Hole Depth [AAZQ]
- 0.3747 Inches Nominal
- Hole Arrangement Style [ABRB]
- Two Holes In Solid Pin
- Material Document And Classification [MDCL]
- Mil-S-866, Class 8615 Mil Spec Single Material Response
- Material [MATT]
- Steel Comp 8615
- Metallic Hardness Rating [AETC]
- 55.0 Minimum Rockwell C And 60.0 Maximum Rockwell C
- Outside Diameter [ABKV]
- 2.24900 Inches Minimum And 2.24950 Inches Maximum
- Second Hole Diameter [ABRD]
- 0.281 Inches Nominal
Weapon Systems (WSDC) 4310-00-892-4906
DLA Procurement Analysis 4310-00-892-4906
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4310-00-892-4906
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4310-00-892-4906
Freight Information 4310-00-892-4906
4310-00-892-4906 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126670. A Sub NMFC of X. It has a NMFC Description of PINS,BAR SHOCK ABSORBER. 4310-00-892-4906 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 4310-00-892-4906 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4310-00-892-4906 is not classified as a special type of cargo when transported by water. 4310-00-892-4906 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4310-00-892-4906
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 4310-00-892-4906 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
