4310-00-589-1483
Piston Ring
4310005891483 005891483 5205-228000 GI 18107 205-228 5205-22800
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
May 2023
12
Marketplace 4310-00-589-1483
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-589-1483 1+ Documents (More...)
(Identification) 1/3 NSN 4310-00-589-1483 (Identification) 2/3 NSN 4310-00-589-1483 (Identification
Day 4310-00-589-1483 RQST NE Updated Every Day 4310-00-589-1483 RQST Updated Every Day 4310-00-589-1483
Restrictions 4310-00-589-1483
4310-00-589-1483 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-589-1483
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-589-1483
- US Air Force (FGGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- KE
Approved Sources 4310-00-589-1483
- Part Number
- Manufacturer
- Status
- 5205-228000
- Manufacturer
- 81833 - Transdigm Inc (Active)
- Primary Buy
- Primary Buy
- GI 18107
- 60251 - Dover Resources Inc Dba C. Lee Cook (Active)
- Secondary Buy
- Secondary Buy
- 205-228
- 81833 - Transdigm Inc (Active)
- Secondary Buy
- Secondary Buy
- 5205-22800
- 81833 - Transdigm Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4310-00-589-1483
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Material [MATT]
- Graphite Overall
- Cross-Sectional Shape Style [AAGR]
- Straight Face, Bottom Relief

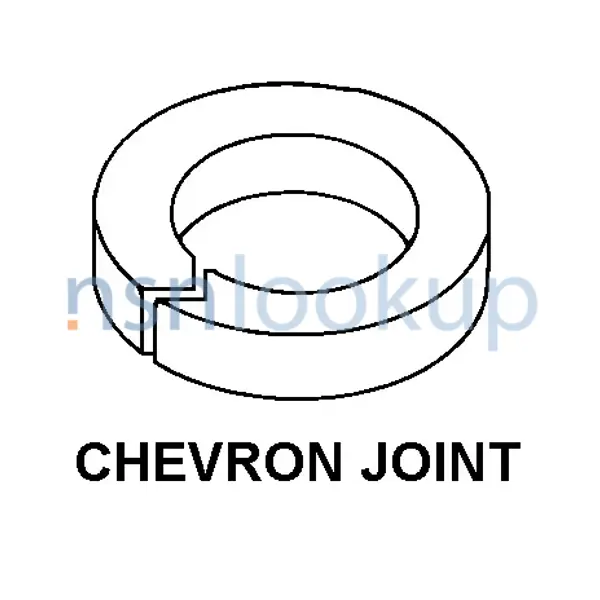

- Joint Style [ADTE]
- Chevron Joint
- Ring Style [ACXD]
- Concentric
- Radial Wall Thickness [ACXF]
- 0.1094 Inches Nominal
- Overall Width [ACXJ]
- 0.1562 Inches Nominal
- Standard Bore Diameter [ACXZ]
- 2.000 Inches
Weapon Systems (WSDC) 4310-00-589-1483
DLA Procurement Analysis 4310-00-589-1483
Management Data 4310-00-589-1483
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4310-00-589-1483
Freight Information 4310-00-589-1483
4310-00-589-1483 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 4310-00-589-1483 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 4310-00-589-1483 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4310-00-589-1483 is not classified as a special type of cargo when transported by water. 4310-00-589-1483 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4310-00-589-1483
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Vendor's Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4310-00-589-1483 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
