4310-00-420-3547

Piston Pin

4310004203547 004203547 N277PC41 N287PC41 N279PC41 N288PC41 N266PC41 N254PC41 N257PC41 N290PC41 P4092 N255PC41 N268PC41 N276PC41 N265PC41

A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
November 2023

NATO Update Count
19

NATO Data Quality

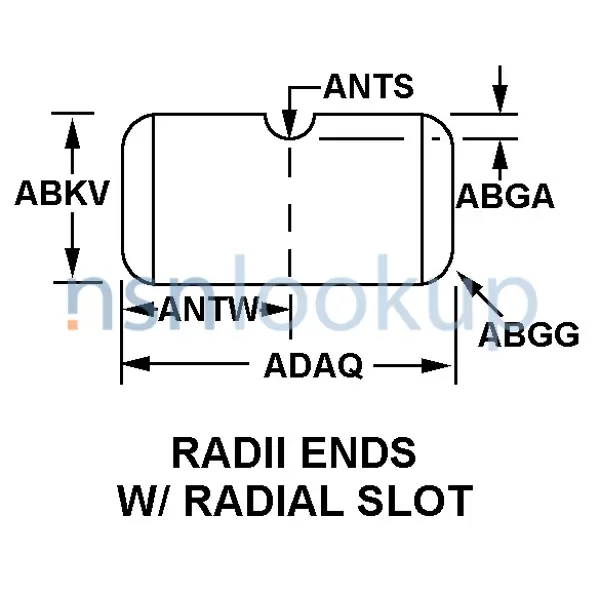

AAQL Style 16 for 4310-00-420-3547 1/1 — NSN 4310-00-420-3547 (Identification) 1/1

Marketplace 4310-00-420-3547

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

4310-00-420-3547 RQST NE

Updated Every Day

4310-00-420-3547 RQST

Updated Every Day

4310-00-420-3547 RQST NE

Restrictions 4310-00-420-3547

4310-00-420-3547 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 4310-00-420-3547

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4310-00-420-3547

US Navy (N9BC)
Effective Date:: 1 Apr 2005
Former MOE Rule:: N9CD
Supplementary Collaborators:: HD; AMC 0 AMSC 0 IMC Z IMCACTY HD

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 4310-00-420-3547

Part Number
Manufacturer
Status
N290PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N266PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N277PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N287PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N279PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N288PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N254PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N255PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N257PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N268PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N276PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N265PC41: 830Q4 - Curtiss-Wright Electro-Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
N266PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N254PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N257PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N290PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
P4092: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
N255PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N255PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N257PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N268PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N266PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N276PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N277PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N254PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N277PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N279PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N276PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N279PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N288PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N255PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N257PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N279PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N287PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N265PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N277PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N287PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N290PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N265PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N288PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N276PC41: 88663 - Dresser-Rand Co Ingersoll-Rand Opns (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N290PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N254PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N268PC41: 0AT62 - Siemens Energy, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N266PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N268PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N265PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N287PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
N288PC41: 30760 - Ingersoll Rand Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 4310-00-420-3547

Characteristic
Specifications
FIIG: A09500
Distance From End To Slot Center [ANTW]: 1.8750 Inches Nominal
Body Length [ADAQ]: 3.7500 Inches Nominal
Body Style [AAQL]: Radii Ends W/Radial Slot
Casehardening Indicator [AASG]: Not Casehardened
Groove Depth [ABGA]: 0.1250 Inches Nominal
Material Document And Classification [MDCL]: Mil-S-890, Class B Mil Spec Single Material Response
Material [MATT]: Steel
Outside Diameter [ABKV]: 0.99800 Inches Minimum And 0.99900 Inches Maximum
Radial Groove Radius [ANTS]: 0.2500 Inches Nominal
Radius [ABGG]: 0.0625 Inches Nominal

Subscribe
View Data

DLA Procurement Analysis 4310-00-420-3547

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4310-00-420-3547

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Oct 2019: Department of the Navy (DN); EA; Subscribe; 1

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 4310-00-420-3547

2815-12-337-4774 2815-19-001-9792 4310-12-376-7900 2805-37-006-5579 4130-99-967-8354 2815-12-340-0765 4310-37-526-5981 2815-22-606-4241 4310-12-198-8680 2815-12-143-4316 4310-66-067-2869 2805-00-430-0321 4310-12-356-0041 2815-99-597-0041 2815-21-796-2996 2805-99-405-7735 5315-37-015-5475 2805-99-895-1555

Freight Information 4310-00-420-3547

4310-00-420-3547 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 4310-00-420-3547 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 4310-00-420-3547 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4310-00-420-3547 is not classified as a special type of cargo when transported by water. 4310-00-420-3547 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Contracting Technical Data File (CTDF) 4310-00-420-3547 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
