4310-00-264-3019
Piston Pin
4310002643019 002643019 1587 RC340-16-1686PC1587
A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin
May 2023
16
Marketplace 4310-00-264-3019
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-264-3019 3+ Documents (More...)
(Identification) 1/3 NSN 4310-00-264-3019 (Identification) 2/3 NSN 4310-00-264-3019 (Identification
RQST Updated Every Day 4310-00-264-3019 RQST NE Related Documents 4310-00-264-3019 2+ Documents ( More
Piston Pin 4310002643019 002643019,1587 Upgrade for $1 a day Upgrade your Account Upgrade 4310-
00-264-3019Piston Pin4310002643019 002643019 1587 RC340 Subscribe to View Vendor Details... 1587 PIN,
Restrictions 4310-00-264-3019
4310-00-264-3019 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-264-3019
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-264-3019
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1998
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4310-00-264-3019
- Part Number
- Manufacturer
- Status
- 1587
- Manufacturer
- 49576 - Quincy Compressor Division Of Coltec (Active)
- Primary Buy
- Primary Buy
- RC340-16-1686PC1587
- 49576 - Quincy Compressor Division Of Coltec (Active)
- Primary Buy
- Primary Buy
Datasheet 4310-00-264-3019
- Characteristic
- Specifications
- FIIG
- Specifications
- A09500
- Distance From Centerline Of Hole To End Of Pin [ABRE]
- 0.313 Inches Nominal
- End Chamfer Angle In Deg [ABQM]
- 45.0
- Body Length [ADAQ]
- 2.7500 Inches Nominal

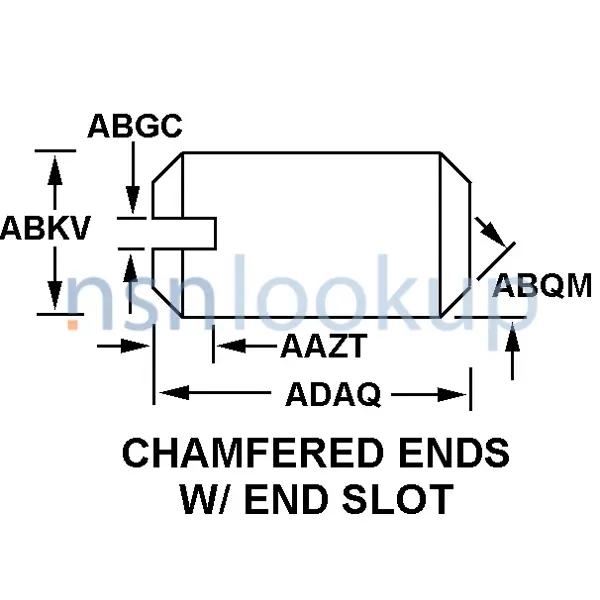

- Body Style [AAQL]
- Chamfered Ends W/End Slot
- Bore Diameter [ABXV]
- 0.6250 Inches Nominal
- Bore Style [ANTP]
- Straight-Thru Bore
- Casehardening Indicator [AASG]
- Casehardened
- Hole Arrangement Style [ABRB]
- One Hole Thru One Side Of Bore
- Hole Depth [AAZQ]
- 0.1250 Inches Nominal
- Hole Diameter [AAUB]
- 0.2344 Inches Nominal
- Material [MATT]
- Steel Comp 1020
- Metallic Hardness Rating [AETC]
- 45.0 Minimum Rockwell C And 50.0 Maximum Rockwell C
- Outside Diameter [ABKV]
- 0.87480 Inches Minimum And 0.87520 Inches Maximum
- Fsc Application Data [ZZZV]
- Air Compressor
- Material Document And Classification [MDCL]
- Fed Std 66 Fed Std Single Material Response Or Aisi 1020 Assn Std Single Material Response Or Sae 1020 Assn Std Single Material Response
- Slot Depth [AAZT]
- 0.1562 Inches Nominal
- Slot Width [ABGC]
- 0.125 Inches Nominal
- Special Features [FEAT]
- 0.063 In. Radius At Bottom Of Slot
Weapon Systems (WSDC) 4310-00-264-3019
DLA Procurement Analysis 4310-00-264-3019
Management Data 4310-00-264-3019
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4310-00-264-3019
Freight Information 4310-00-264-3019
4310-00-264-3019 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126670. A Sub NMFC of X. It has a NMFC Description of PINS,BAR SHOCK ABSORBER. 4310-00-264-3019 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 4310-00-264-3019 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4310-00-264-3019 is not classified as a special type of cargo when transported by water. 4310-00-264-3019 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4310-00-264-3019
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4310-00-264-3019 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
