4310-00-141-9814
Piston Ring
4310001419814 001419814 041948-01 DX85973PC90S 1514-010 DY108404PC90S DX86981PC90S DR108013ITEM21 DX87145PC90S DX83343PC90S 1457P DR107179PC7-3
A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL. View more Piston Ring
November 2023
5
Marketplace 4310-00-141-9814
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-141-9814 5+ Documents (More...)
1457P DR107179PC7-3 A circular, single or multipiece item, metallic or nonmetallic in composition, designed
(Identification) 1/3 NSN 4310-00-141-9814 (Identification) 2/3 NSN 4310-00-141-9814 (Identification
5747 Electrical Engine Starter Switch 004555747 https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310-00-141-9814
Piston Ring 4310001419814 001419814,041948-01 041948-01 DX85973PC90S 1514-010 DY108404PC90S DX86981PC90S
/www.nsnlookup.com /fsg-59/fsc-5950/nl 5950-17-034-5898 Power Transformer 5950170345898170345898 1514-010
www.nsnlookup.com /fsg-59/fsc-5950/nl 5950-17-034-5898 https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310-00-141-9814
Piston Ring 4310001419814 001419814,041948-01 Upgrade for $1 a day Upgrade your Account Upgrade
4310-00-141-9814Piston Ring4310001419814 001419814 041948 www.nsnlookup.com /fsg-43/fsc-4310/us 4310
JavaScript in your web browser . 5950-17-024-7368Power https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310-00-141-9814
Piston Ring 4310001419814 001419814,041948-01 01DX85973PC90S1514-010DY108404PC90SDX86981PC90S https
Restrictions 4310-00-141-9814
4310-00-141-9814 is a Piston Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-141-9814
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-141-9814
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4310-00-141-9814
- Part Number
- Manufacturer
- Status
- 041948-01
- Manufacturer
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Original Design
- Original Design
- 1514-010
- 75370 - Kaydon Ring & Seal Inc (Active)
- Secondary Buy
- Secondary Buy
- DY108404PC90S
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DX86981PC90S
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DR108013ITEM21
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DX85973PC90S
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DX87145PC90S
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DX83343PC90S
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1457P
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DR107179PC7-3
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 041948-01
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Advisory Reference
- Advisory Reference
- DX85973PC90S
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4310-00-141-9814
- Characteristic
- Specifications
- FIIG
- Specifications
- A08400
- Bore Diameter Oversize [ACYA]
- 0.010 Inches

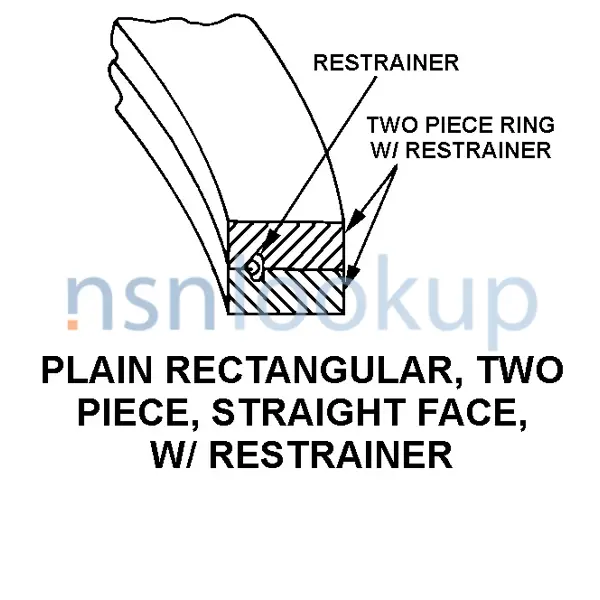

- Cross-Sectional Shape Style [AAGR]
- Plain Rectangular, Two Piece, Straight Face, W/Restrainer
- Fsc Application Data [ZZZV]
- Pump,Reciprocating,Power Driven
- Material [MATT]
- Copper Alloy Top
- Material [MATT]
- Iron Bottom
- Joint Style [ADTE]
- Vertical Joint
- Radial Wall Thickness [ACXF]
- 0.4220 Inches Minimum And 0.4420 Inches Maximum
- Ring Style [ACXD]
- Concentric
- Overall Width [ACXJ]
- 0.8690 Inches Minimum And 0.8720 Inches Maximum
- Standard Bore Diameter [ACXZ]
- 14.000 Inches
Weapon Systems (WSDC) 4310-00-141-9814
DLA Procurement Analysis 4310-00-141-9814
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4310-00-141-9814
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 4320
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 4320
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4310-00-141-9814
Freight Information 4310-00-141-9814
4310-00-141-9814 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126700. A Sub NMFC of X. It has a NMFC Description of PISTON RINGS,IRON. 4310-00-141-9814 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 4310-00-141-9814 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64230 which rates the freight between FCL and LCL. 4310-00-141-9814 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4310-00-141-9814 is not classified as a special type of cargo when transported by water. 4310-00-141-9814 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4310-00-141-9814
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-21260, Preservative and Break-in Lubricating Oil, Internal Combustion Engine, Grade 10, 30 or 50
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4310-00-141-9814 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
