4310-00-097-5930
Piston Pin
4310000975930 000975930 200110DPC62 3083B 157437PC135 157440PC135 157013PC135 156414PC135 157016PC135
A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW. View more Piston Pin
November 2023
24
Marketplace 4310-00-097-5930
Request a Quotation from participating marketplace vendors
Related Documents 4310-00-097-5930 2+ Documents (More...)
(Identification) 1/3 NSN 4310-00-097-5930 (Identification) 2/3 NSN 4310-00-097-5930 (Identification
Updated Every Day 4310-00-097-5930 RQST NE Updated Every Day 4310-00-097-5930 RQST Updated Every Day
www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-643-1558 https//www.nsnlookup.com /fsg-43/fsc-4310/us 4310-00-097-5930
Piston Pin 4310000975930 000975930 $1 a day Upgrade your Account Upgrade 4310-00-097-5930Piston
Restrictions 4310-00-097-5930
4310-00-097-5930 is a Piston Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4310-00-097-5930
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4310-00-097-5930
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4310-00-097-5930
- Part Number
- Manufacturer
- Status
- 3083B
- Manufacturer
- 8FGX3 - Curtiss-Wright Electro-Mechanical (Active)
- Primary Buy
- Primary Buy
- 3083B
- 93236 - Dresser-Rand Co Worthington (Replaced)
- Original Design
- Original Design
- 200110DPC62
- 8FGX3 - Curtiss-Wright Electro-Mechanical (Active)
- Secondary Buy
- Secondary Buy
- 3083B
- 0AT62 - Siemens Energy, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 157437PC135
- 93234 - Worthington Compressors Inc Air (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 157440PC135
- 93234 - Worthington Compressors Inc Air (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 157013PC135
- 93234 - Worthington Compressors Inc Air (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 200110DPC62
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 200110DPC62
- 93236 - Dresser-Rand Co Worthington (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 156414PC135
- 93234 - Worthington Compressors Inc Air (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 200110DPC62
- 830Q4 - Curtiss-Wright Electro-Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 200110DPC62
- 0AT62 - Siemens Energy, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3083B
- 830Q4 - Curtiss-Wright Electro-Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 157016PC135
- 93234 - Worthington Compressors Inc Air (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4310-00-097-5930
- Characteristic
- Specifications
- FIIG
- Specifications
- A09500
- Distance From Centerline Of Hole To End Of Pin [ABRE]
- 0.383 Inches Nominal
- Body Length [ADAQ]
- 3.7250 Inches Nominal
- Body Style [AAQL]
- Plain Ends
- Bore Diameter [ABXV]
- 1.0000 Inches Nominal
- Bore Style [ANTP]
- Straight-Thru Bore
- Casehardening Indicator [AASG]
- Not Casehardened
- Center To Center Distance Between Holes [ABRF]
- 2.9910 Inches Nominal
- First Hole Diameter [ABRC]
- 0.316 Inches Nominal

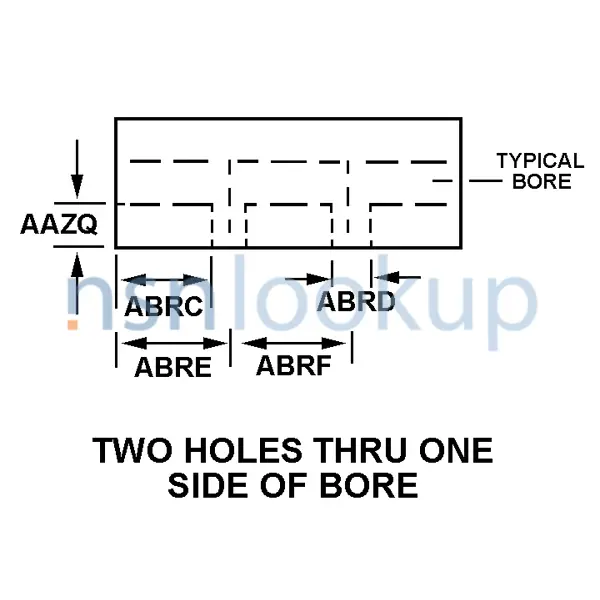

- Hole Arrangement Style [ABRB]
- Two Holes Thru One Side Of Bore
- Hole Depth [AAZQ]
- 0.3650 Inches Nominal
- Material [MATT]
- Steel
- Outside Diameter [ABKV]
- 1.75000 Inches Nominal
- Second Hole Diameter [ABRD]
- 0.316 Inches Nominal
Weapon Systems (WSDC) 4310-00-097-5930
DLA Procurement Analysis 4310-00-097-5930
Management Data 4310-00-097-5930
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4310-00-097-5930
Freight Information 4310-00-097-5930
4310-00-097-5930 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 4310-00-097-5930 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 4310-00-097-5930 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4310-00-097-5930 is not classified as a special type of cargo when transported by water. 4310-00-097-5930 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4310-00-097-5930
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 4310-00-097-5930 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Y
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
