4140-01-284-5722
Axial Vane Fan
4140012845722 012845722 12268231
A nonpositive displacement mechanical device with guide vanes and having an axial fan impeller(s) inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes and pressures. View more Vaneaxial Fan
March 2025
20
Product Information 4140-01-284-5722

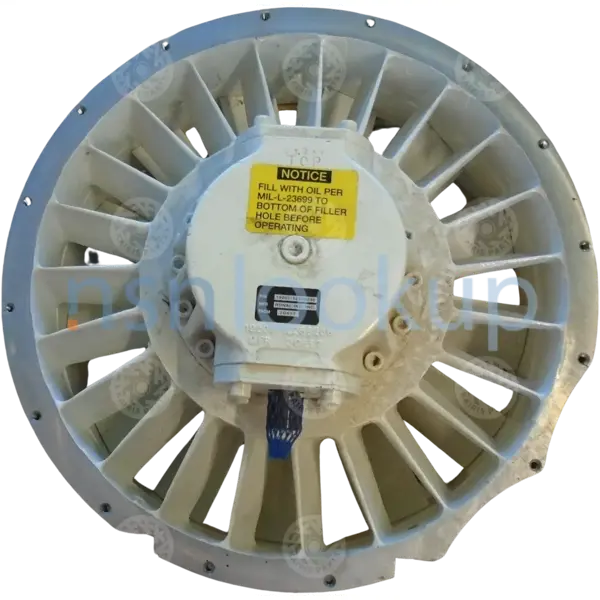

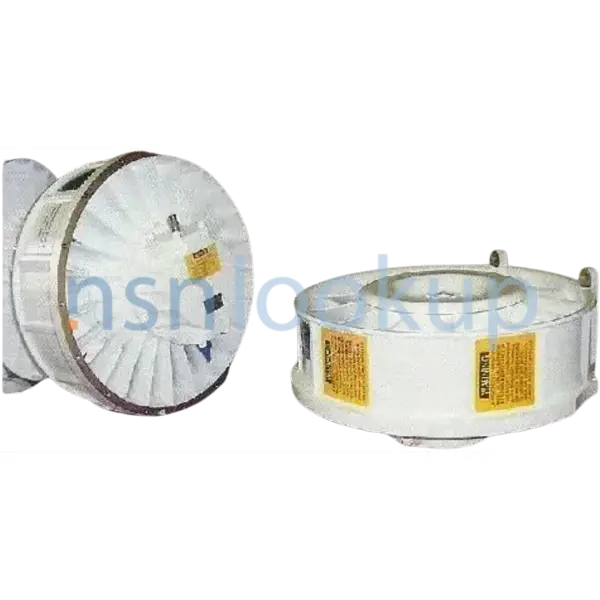

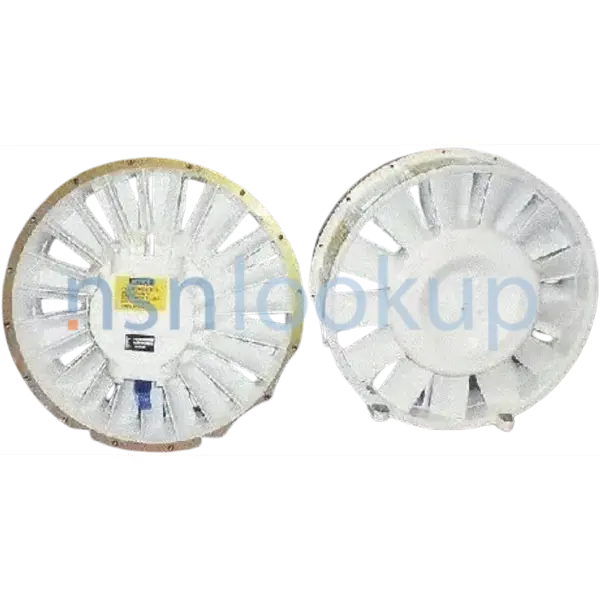

Axial Vane Cooling Fan
Shaft driven axial fan for transferring air through the powerpack cooling radiators of the M109 Howitzer and the M992 Ammunition Supply Vehicle FAASV CAT.
Used on vehicles:
- M109
- M109A2
- M109A3
- M109A4
- M109A5
- M992 FAASV CAT
- M992A1
- M992A2
Marketplace 4140-01-284-5722
Request a Quotation from participating marketplace vendors
Related Documents 4140-01-284-5722 3+ Documents (More...)
United States (US) 4. 4140-01-284-5722 Marketplace Restrictions Approved Sources Datasheet Management
FAN,VANEAXIAL 10 EA NS Request Quotation Updated Every Day 4140-01-284-5722 RQST NE Updated Every
/fsg-41/fsc-4140/us
FAN,AXIAL VANE 10 EA NS Request Quotation Updated Every Day 4140-01-284-5722 RQST NE Updated Every
Day 4140-01-284-5722 RQST Updated Every Day 4140-01-284-5722 RQST NE Related Documents 4140-01-284-5722
Restrictions 4140-01-284-5722
IUID Required
4140-01-284-5722 is a Axial Vane Fan The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4140-01-284-5722
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-01-284-5722
- US Army (A203)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BDBF
- US Marine Corps (MC02)
- Effective Date:
- 1 Apr 1991
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1998
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Norway (ZT01)
- Effective Date:
- 1 Jul 2000
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
Approved Sources 4140-01-284-5722
- Part Number
- Manufacturer
- Status
- 12268231
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 4140012845722
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4140-01-284-5722
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Style Designator [STYL]
- Fixed
- Length [ABRY]
- 6.125 Inches Nominal
- Housing Inside Diameter [CWLX]
- 17.000 Inches Nominal
- Drive Type [AKCV]
- Gear
- Rotation Direction For Which Designed [AYSY]
- Counterclockwise
- Air Flow Rate [CQKX]
- 10000.0 Cubic Feet Per Minute Nominal
- Static Pressure At Specified Air Flow Rate [AJLY]
- 8.0 Inches Of Water
- Flow Direction [ADNK]
- Inward
- Mounting Facility Type And Quantity [AXHR]
- 15 Threaded Insert
- End Item Identification [AGAV]
- 2350-01-031-0586
Management Data 4140-01-284-5722
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Nov 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- 7
- Substitute For 4140-00-756-3612
- AAA
- 7
- Department of the Army (DA)
- A
- Dod I&S Family Master Nsn - - -
- ABA
- Department of the Army (DA)
- I
- 7
- Substitute For 4140-00-756-3612
- AAA
- 7
- Department of the Army (DA)
- A
- R
- Refer To Net Price 5476.00
- NET PRICE 5476.00
- R
- Department of the Army (DA)
- I
- Dod I&S Family Master Nsn - - -
- ABA
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- A2
- Operational Test:
- No Special Procedures
