4140-01-278-1527
Circulating Fan
4140012781527 012781527 4140-01-278-1527 37088 OSC 343P FCNE 88-458 FCNE 88-458 SZ3
A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface. View more Circulating Fan
November 2023
7
Marketplace 4140-01-278-1527
Request a Quotation from participating marketplace vendors
Related Documents 4140-01-278-1527 5+ Documents (More...)
Updated Every Day 4140-01-278-1527 RQST NE Updated Every Day 4140-01-278-1527 RQST Updated Every Day
RQST NE Updated Every Day 4140-01-278-1527 RQST Updated Every Day RQST NE Updated Every Day 4140
Angle Bracket 5340170441153 170441153,37088 Wiring Harness 6150270474962270474962 13C25-37088 https
for $1 a day Upgrade your Account Upgrade 5340-01 https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-278-1527
/fsg-61/fsc-6150/tr
enable JavaScript in your web browser . 6150-27-051-1424Wiring Harness6150270511424 270511424 16F00-37088
Angle Bracket 5340170441153 170441153,37088 051 https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-278-1527
//www.nsnlookup.com /fsg-61/fsc-6150/us 6150-00-980-3754 Electrical Special Purpose Cable Assembly 37088
www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-565-5809 Rigid Connecting Link 3040015655809 015655809 37088
electrical; and wiring harness, branched. https https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-278-1527
Circulating Fan 4140012781527 012781527 Upgrade 4140-01-278-1527Circulating Fan4140012781527 012781527
Restrictions 4140-01-278-1527
4140-01-278-1527 is a Circulating Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4140-01-278-1527
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-01-278-1527
- NASA (G751)
- Effective Date:
- 1 Nov 1993
- Former MOE Rule:
- G750
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GGGT
Approved Sources 4140-01-278-1527
- Part Number
- Manufacturer
- Status
- 4140-01-278-1527
- Manufacturer
- 80244 - General Services Administration (Active)
- Primary Buy
- Primary Buy
- 37088
- 00388 - Airmaster Fan Company (Active)
- Secondary Buy
- Secondary Buy
- OSC 343P
- 00383 - Frigid Div Of Robeson Sales Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- FCNE 88-458
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FCNE 88-458 SZ3
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4140-01-278-1527
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Drive Type [AKCV]
- Direct
- Electrical Connection Type [AGBD]
- Cord W/Attached Plug
- Air Flow Rate [CQKX]
- 8050.0 Cubic Feet Per Minute Nominal
- Extended Height [AJLT]
- 84.000 Nominal Inches
- Features Provided [CBBL]
- Safety Impeller Guard
- Flow Direction [ADNK]
- Outward
- Frequency In Hertz [FREQ]
- 60.0
- Inclosure Type [AKNA]
- Fully Inclosed
- Prime Mover Power Rating [CSYL]
- 260.0 Watts
- Prime Mover Type [AKDJ]
- Electric Motor
- Quantity [NMBR]
- 1
- Rotation Direction For Which Designed [AYSY]
- Clockwise
- Shortest Height [AJLS]
- 54.000 Inches Nominal
- Phase [FAAZ]
- Single
- Special Features [FEAT]
- Blade Made Of Plastic Or Metal
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Speed Adjustments [ABBB]
- Two Speed

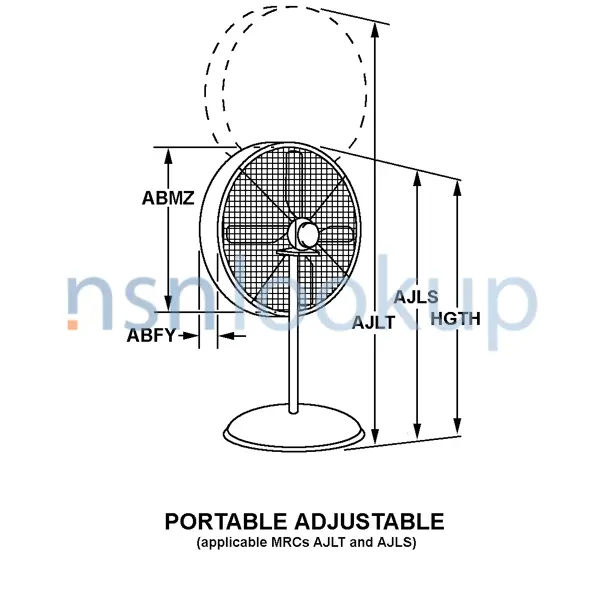

- Style Designator [STYL]
- Portable Adjustable
DLA Procurement Analysis 4140-01-278-1527
Management Data 4140-01-278-1527
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 4140-01-278-1527
Freight Information 4140-01-278-1527
4140-01-278-1527 has freight characteristics.. 4140-01-278-1527 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
