4140-01-227-1341
Centrifugal Fan
4140012271341 012271341 K10 4140-001-0001
A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing. View more Centrifugal Fan
November 2023
5
Marketplace 4140-01-227-1341
Request a Quotation from participating marketplace vendors
Related Documents 4140-01-227-1341 5+ Documents (More...)
K10 FAN,CENTRIFUGAL 21 EA NS Request Quotation FedMall Updated Every 15 Minutes 4140-01-227-1341 BUY
NE FedMall Updated Every Day 4140-01-227-1341 RQST NE Updated Every Day 4140-01-227-1341 RQST Updated
https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-227-1341 Centrifugal Fan 4140012271341 012271341
,K10 K10 FAN,CENTRIFUGAL 17 EA NS Request Quotation Subscribe to View Vendor Details...
-01-626-9923 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-58/fsc-5855/us 5855-01-626-9923 K10
uk 5355- https//www.nsnlookup.com /fsg-53/fsc-5355/uk 5355-99-972-1293 Knob 5355999721293 999721293,K10
,KL10 ,K10,KL10 ,K10,KL10 holding ,KL10 6530999023799999023799 6530990109602990109602,K10,KL10 6530999023799999023799
,K10,KL10 6530999023799999023799 to 6530-00-720-9885 6530 -9602 6530-99- 902- ,K10,KL10 99-902-3799
-X503T30777-K10-X403 A component which converts available alternating current or direct current RQST
//www.nsnlookup.com /fsg-76/fsc-7610/tr 7610-27-027-8230 Book 7610270278230 270278230,OZGE-K10 K10 ..
Restrictions 4140-01-227-1341
4140-01-227-1341 is a Centrifugal Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4140-01-227-1341
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-01-227-1341
- US Air Force (FUGI)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FUKZ
Approved Sources 4140-01-227-1341
- Part Number
- Manufacturer
- Status
- K10
- Manufacturer
- 57797 - Appleton Electric Co (Replaced)
- Original Design
- Original Design
- K10
- 03743 - Egs Electrical Group (Active)
- Secondary Buy
- Secondary Buy
- 4140-001-0001
- 04614 - Textron Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4140-01-227-1341
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Drive Type [AKCV]
- Belt
- Air Flow Rate [CQKX]
- 115.0 Cubic Feet Per Minute Minimum And 700.0 Cubic Feet Per Minute Maximum
- Ambient Temp At Full Rated Power [AEHY]
- 150.0 Deg Fahrenheit
- Discharge Direction [CXCB]
- Horizontal
- Height [HGTH]
- 13.250 Inches Nominal
- Material [MATT]
- Steel Overall
- Operating Speed At Rated Capacity In Rpm [AEQC]
- 2900.0
- Outlet Inside Diameter [AJLW]
- 10.000 Inches Nominal
- Length [ABRY]
- 9.000 Inches Nominal
- Prime Mover Power Rating [CSYL]
- 0.333 Horsepower
- Prime Mover Type [AKDJ]
- Electric Motor
- Shaft Bearing Type [CXHN]
- Ball
- Phase [FAAZ]
- Single
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Static Pressure At Specified Air Flow Rate [AJLY]
- 2.000 Inches Of Water

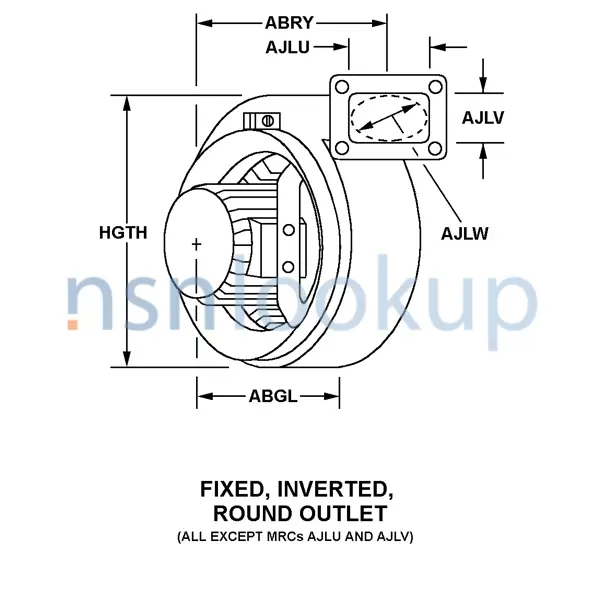

- Style Designator [STYL]
- Fixed,Inverted,Round Outlet
- Surface Treatment [SFTT]
- Zinc Overall
Weapon Systems (WSDC) 4140-01-227-1341
DLA Procurement Analysis 4140-01-227-1341
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4140-01-227-1341
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- AI
- ADVANCED INTERCONTINENTAL BALLISTIC (MX)
- Price Validation Code:
- P
- The current standard price is the initial negotiated provisioned price.
This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 4140-01-227-1341
Freight Information 4140-01-227-1341
4140-01-227-1341 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-01-227-1341 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. 4140-01-227-1341 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4140-01-227-1341 is not classified as a special type of cargo when transported by water. 4140-01-227-1341 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
