4140-01-042-0661

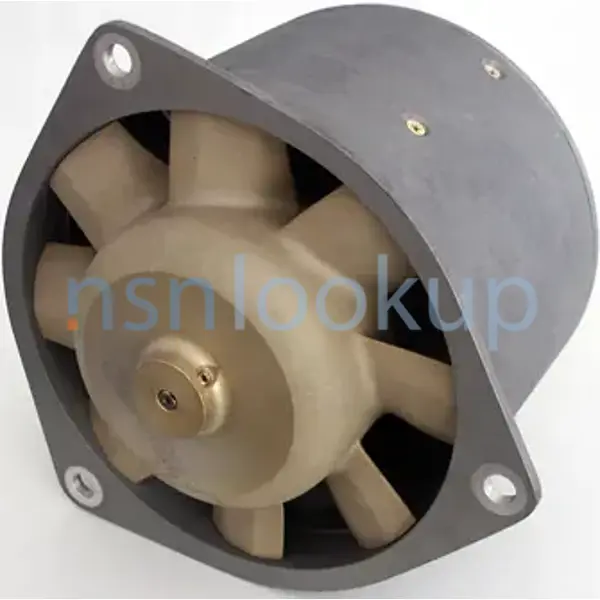

Vaneaxial Fan
4140010420661 010420661 4189823
A nonpositive displacement mechanical device with guide vanes and having an axial fan impeller(s) inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes and pressures. View more Vaneaxial Fan
September 2023
15
Marketplace 4140-01-042-0661
Request a Quotation from participating marketplace vendors
Related Documents 4140-01-042-0661 5+ Documents (More...)
/fsg-41/fsc-4140/us
United States (US) 4. 4140-01-042-0661 Marketplace Restrictions Approved Sources Datasheet Management
4140-01-042-0661 RQST Updated Every Day 4140-01-042-0661 RQST NE Related Documents 4140-01-042-0661
Every Day 4140-32-072-3376 RQST NE Restrictions https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-01-042-0661
Vaneaxial Fan 4140010420661 010420661, Restrictions Approved Sources Datasheet Management https
Restrictions 4140-01-042-0661
4140-01-042-0661 is a Vaneaxial Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4140-01-042-0661
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-01-042-0661
- Morocco (YP01)
- Effective Date:
- 1 Jul 2010
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4140-01-042-0661
- Part Number
- Manufacturer
- Status
- 4189823
- Manufacturer
- 80212 - Bae Systems Land & Armaments L.P. (Active)
- Primary Buy
- Primary Buy
- 4140010420661
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4140010420661
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4140-01-042-0661
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Style Designator [STYL]
- Fixed
- Quantity [NMBR]
- 1
- Drive Type [AKCV]
- Direct
- Rotation Direction For Which Designed [AYSY]
- Clockwise
- Prime Mover Type [AKDJ]
- Electric Motor
- Speed Adjustments [ABBB]
- Three Speed
- Inclosure Type [AKNA]
- Partially Inclosed
- Ambient Temp At Full Rated Power [AEHY]
- 115.0 Deg Fahrenheit
- Electrical Connection Type [AGBD]
- Cord W/Attached Plug
- Voltage In Volts And Current Type [CSBH]
- 24.0 Dc
- Air Flow Rate [CQKX]
- 350.000 Cubic Feet Per Minute Maximum
- Flow Direction [ADNK]
- Inward
- Stage Quantity [AAYD]
- 1
- Mounting Facility Type And Quantity [AXHR]
- 3 Unthreaded Hole
Similar Supply Items to 4140-01-042-0661
Freight Information 4140-01-042-0661
4140-01-042-0661 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-01-042-0661 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 4140-01-042-0661 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 752 for ocean manifesting and military sealift. 4140-01-042-0661 is not classified as a special type of cargo when transported by water. 4140-01-042-0661 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
