4140-00-732-5444
Centrifugal Fan
4140007325444 007325444 1C982 434291-1
A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing. View more Centrifugal Fan
May 2023
10
Marketplace 4140-00-732-5444
Request a Quotation from participating marketplace vendors
Related Documents 4140-00-732-5444 5+ Documents (More...)

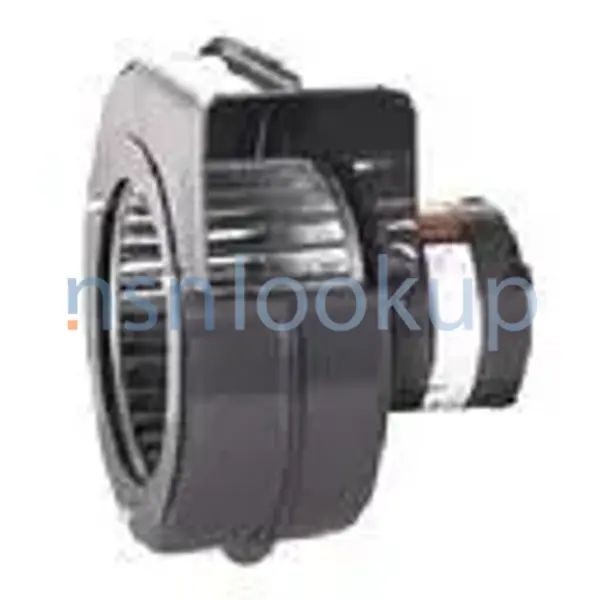

Photo 1/2 NSN 4140-00-732-5444 (Identification) 2/2 - - 1.
Every Day 4140-00-732-5444 RQST NE Updated Every Day 4140-00-732-5444 RQST Updated Every Day 4140-00
www.nsnlookup.com /fsg-41/fsc-4140/us 4140-00-894-1793 Vaneaxial Fan 4140008941793 008941793,1C982 1C982
a day Upgrade your Account Upgrade 1740-00-200-0148Ground Handling Trailer1740002000148 002000148 1C982
TRAILER,GROUND HANDLING 9 EA NS Request Quotation Subscribe to View Vendor Details... 1C982 TRAILER,
Centrifugal Fan 4140007325444 007325444,1C982 Upgrade for $1 a day Upgrade your Account Upgrade
Centrifugal Fan 4140007325444 007325444,1C982 $1 a day Upgrade your Account Upgrade 4140-00-732
-5444Centrifugal Fan4140007325444 007325444 1C982 434291 Dental Spatula 6520016726761 016726761,434291
Restrictions 4140-00-732-5444
4140-00-732-5444 is a Centrifugal Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4140-00-732-5444
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-00-732-5444
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4140-00-732-5444
- Part Number
- Manufacturer
- Status
- 1C982
- Manufacturer
- 25795 - W.W. Grainger, Inc. (Active)
- Primary Buy
- Primary Buy
- 434291-1
- 99251 - Mission Systems Davenport Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4140-00-732-5444
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Drive Type [AKCV]
- Direct
- Electrical Connection Type [AGBD]
- Wire Lead
- Air Flow Rate [CQKX]
- 160.0 Cubic Feet Per Minute Maximum
- Ambient Temp At Full Rated Power [AEHY]
- 40.0 Deg Celsius
- Discharge Direction [CXCB]
- Vertical Up
- Height [HGTH]
- 8.375 Inches Nominal
- Material [MATT]
- Steel Overall
- Operating Speed At Rated Capacity In Rpm [AEQC]
- 1440.0
- Outlet Location [CRWJ]
- Top
- Outlet Inside Height [AJLV]
- 3.313 Inches Nominal
- Outlet Inside Width [AJLU]
- 2.938 Inches Nominal
- Inclosure Type [AKNA]
- Fully Inclosed
- Length [ABRY]
- 8.062 Inches Nominal
- Prime Mover Power Rating [CSYL]
- 0.020 Horsepower
- Prime Mover Type [AKDJ]
- Electric Motor
- Prime Mover Drive Shaft Bearing Type [CWLY]
- Sleeve
- Rotation Direction For Which Designed [AYSY]
- Counterclockwise
- Phase [FAAZ]
- Single
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Width [ABGL]
- 6.906 Inches Nominal
- Speed Adjustments [ABBB]
- Single Speed
- Stage Quantity [AAYD]
- 1
- Static Pressure At Specified Air Flow Rate [AJLY]
- 0.0 Inches Of Water
- Style Designator [STYL]
- Fixed, Rectangular Outlets
- Surface Treatment [SFTT]
- Enamel Housing Inside
- Surface Treatment [SFTT]
- Enamel Housing Outside
Weapon Systems (WSDC) 4140-00-732-5444
DLA Procurement Analysis 4140-00-732-5444
Management Data 4140-00-732-5444
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4140-00-732-5444
Freight Information 4140-00-732-5444
4140-00-732-5444 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-00-732-5444 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. 4140-00-732-5444 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4140-00-732-5444 is not classified as a special type of cargo when transported by water. 4140-00-732-5444 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
