4140-00-344-0365
Centrifugal Fan Impeller
4140003440365 003440365 H65059CCW S3801-3120148PC2CCW H63762CCW
An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation. View more Centrifugal Fan Impeller
May 2023
5
Marketplace 4140-00-344-0365
Request a Quotation from participating marketplace vendors
Related Documents 4140-00-344-0365 1+ Documents (More...)
/fsg-41/fsc-4140/us
United States (US) 4. 4140-00-344-0365 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 4140-00-344-0365 RQST Updated Every Day 4140-00-344-0365 RQST NE Related Documents
Restrictions 4140-00-344-0365
4140-00-344-0365 is a Centrifugal Fan Impeller that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4140-00-344-0365
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-00-344-0365
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4140-00-344-0365
- Part Number
- Manufacturer
- Status
- H65059CCW
- Manufacturer
- 07077 - Howden Buffalo, Inc (Obsolete)
- Original Design
- Original Design
- S3801-3120148PC2CCW
- 80064 - Naval Ship Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- H63762CCW
- 07077 - Howden Buffalo, Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4140-00-344-0365
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Attachment Method [AYAY]
- Keyway
- Blade Quantity [AJLB]
- 6
- Diameter [ABMZ]
- 41.750 Inches Nominal
- Material [MATT]
- Steel Blade
- Width [ABGL]
- 17.312 Inches Nominal

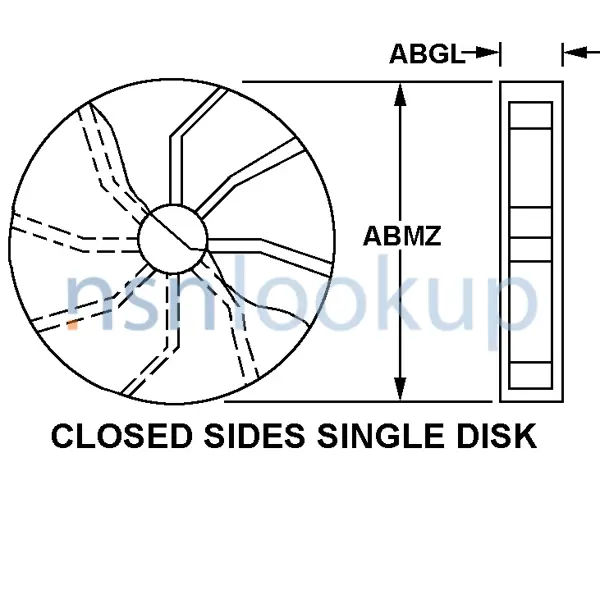

- Style Designator [STYL]
- Closed Sides Single Disk
DLA Procurement Analysis 4140-00-344-0365
Management Data 4140-00-344-0365
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4140-00-344-0365
Freight Information 4140-00-344-0365
4140-00-344-0365 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-00-344-0365 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. 4140-00-344-0365 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 4140-00-344-0365 is not classified as a special type of cargo when transported by water. 4140-00-344-0365 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4140-00-344-0365 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
