4140-00-288-8021
Centrifugal Fan
4140002888021 002888021 ARCRF-AD620CW-204JF 020666 A0-2516 2143093
A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing. View more Centrifugal Fan
May 2023
6
Marketplace 4140-00-288-8021
Request a Quotation from participating marketplace vendors
Related Documents 4140-00-288-8021 4+ Documents (More...)
RQST NE Updated Every Day 4140-00-288-8021 RQST Updated Every Day 4140-00-288-8021 RQST NE Related Documents
4140-00-288-8021 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-00-288-8021
www.nsnlookup.com /fsg-59/fsc-5998/us 5998-01-142-6795 Circuit Card Assembly 5998011426795011426795 150-020666
Centrifugal Fan 4140002888021 002888021 Day 4140-00-288-8021 RQST NE Related Documents https//www.nsnlookup.com
403-28 CX255506-16 3111-1620-002 B17461 A218/A16 https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-00-288-8021
Centrifugal Fan 4140002888021 002888021 Upgrade 4140-00-288-8021Centrifugal Fan4140002888021 https
Restrictions 4140-00-288-8021
4140-00-288-8021 is a Centrifugal Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4140-00-288-8021
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-00-288-8021
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4140-00-288-8021
- Part Number
- Manufacturer
- Status
- 020666
- Manufacturer
- 82877 - Rotron Incorporated (Active)
- Primary Buy
- Primary Buy
- ARCRF-AD620CW-204JF
- 82877 - Rotron Incorporated (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- A0-2516
- 82877 - Rotron Incorporated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2143093
- 28527 - L3harris Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4140-00-288-8021
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Drive Type [AKCV]
- Direct
- Electrical Connection Type [AGBD]
- Terminal Block
- Air Flow Rate [CQKX]
- 950.0 Cubic Feet Per Minute Maximum
- Ambient Temp At Full Rated Power [AEHY]
- -54.0 Deg Celsius And 85.0 Deg Celsius
- Discharge Direction [CXCB]
- Angular Up
- Environmental Protection [ADZC]
- Dripproof
- Frequency In Hertz [FREQ]
- 400.0
- Height [HGTH]
- 9.700 Inches Minimum And 9.820 Inches Maximum
- Material [MATT]
- Steel Overall
- Operating Speed At Rated Capacity In Rpm [AEQC]
- 3350.0
- Outlet Inside Diameter [AJLW]
- 3.060 Inches Minimum And 3.180 Inches Maximum
- Outlet Location [CRWJ]
- Bottom
- Inclosure Type [AKNA]
- Partially Inclosed
- Length [ABRY]
- 8.190 Inches Minimum And 8.310 Inches Maximum
- Prime Mover Drive Shaft Bearing Type [CWLY]
- Ball
- Prime Mover Power Rating [CSYL]
- 1.250 Horsepower
- Prime Mover Type [AKDJ]
- Electric Motor
- Rotation Direction For Which Designed [AYSY]
- Clockwise And Counterclockwise
- Phase [FAAZ]
- Three
- Voltage In Volts And Current Type [CSBH]
- 208.0 Ac
- Width [ABGL]
- 17.560 Inches Minimum And 17.680 Inches Maximum
- Speed Adjustments [ABBB]
- Single Speed
- Static Pressure At Specified Air Flow Rate [AJLY]
- 1.5 Inches Of Water

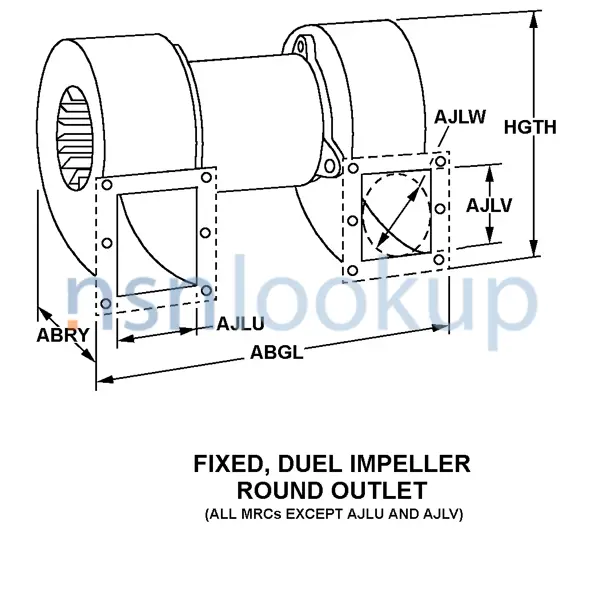

- Style Designator [STYL]
- Fixed, Dual Impeller, Round Outlet
- Surface Treatment [SFTT]
- Cadmium Blade
- Surface Treatment [SFTT]
- Paint Housing
DLA Procurement Analysis 4140-00-288-8021
Management Data 4140-00-288-8021
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4140-00-288-8021
Freight Information 4140-00-288-8021
4140-00-288-8021 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-00-288-8021 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. 4140-00-288-8021 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 752 for ocean manifesting and military sealift. 4140-00-288-8021 is not classified as a special type of cargo when transported by water. 4140-00-288-8021 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
