4140-00-203-3807
Circulating Fan
4140002033807 002033807 4140-00-203-3807 W-F-95
A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface. View more Circulating Fan
June 2023
10
Marketplace 4140-00-203-3807
Request a Quotation from participating marketplace vendors
Related Documents 4140-00-203-3807 1+ Documents (More...)
United States (US) 4. 4140-00-203-3807 Marketplace Restrictions Approved Sources Datasheet Management
W-F-95 FAN,CIRCULATING 6 EA NS Request Quotation Updated Every Day 4140-00-203-3807 RQST NE Updated Every
Restrictions 4140-00-203-3807
4140-00-203-3807 is a Circulating Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4140-00-203-3807
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-00-203-3807
- Spain (YB01)
- Effective Date:
- 1 Jul 2014
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4140-00-203-3807
- Part Number
- Manufacturer
- Status
- 4140-00-203-3807
- Manufacturer
- 80244 - General Services Administration (Active)
- Primary Buy
- Primary Buy
- W-F-95
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4140-00-203-3807
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0

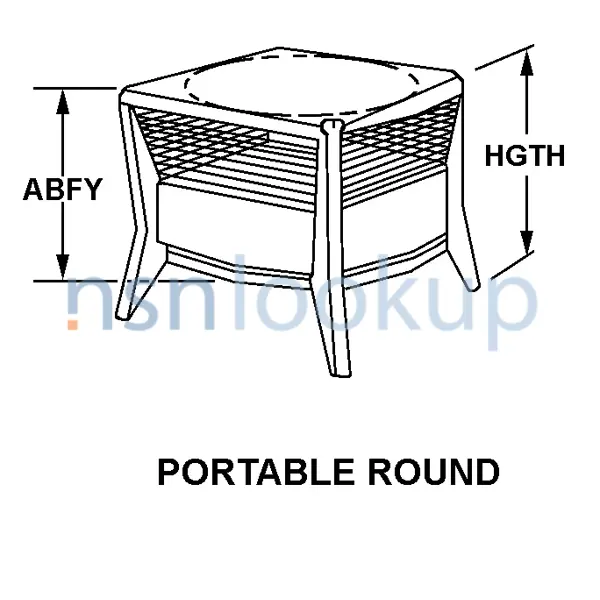

- Style Designator [STYL]
- Portable Round
- Diameter [ABMZ]
- 12.000 Inches Nominal
- Length [ABRY]
- 17.000 Inches Nominal
- Height [HGTH]
- 22.000 Inches Nominal
- Quantity [NMBR]
- 1
- Material [MATT]
- Steel Housing
- Surface Treatment [SFTT]
- Enamel Housing
- Drive Type [AKCV]
- Direct
- Rotation Direction For Which Designed [AYSY]
- Counterclockwise
- Prime Mover Type [AKDJ]
- Electric Motor
- Speed Adjustments [ABBB]
- Two Speed
- Inclosure Type [AKNA]
- Fully Inclosed
- Ambient Temp At Full Rated Power [AEHY]
- 40.0 Deg Celsius
- Electrical Connection Type [AGBD]
- Cord W/Attached Plug
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Phase [FAAZ]
- Single
- Air Flow Rate [CQKX]
- 2300.0 Cubic Feet Per Minute Minimum
- Static Pressure At Specified Air Flow Rate [AJLY]
- 0.0 Inches Of Water
- Environmental Protection [ADZC]
- Dustproof
- Flow Direction [ADNK]
- Outward
- Features Provided [CBBL]
- Safety Impeller Guard
- Special Features [FEAT]
- Non-Oscillating
- Test Data Document [TEST]
- 81348-F-0095 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Nondefinitive Spec/Std Data [ZZZT]
- 12 Size
Similar Supply Items to 4140-00-203-3807
Freight Information 4140-00-203-3807
4140-00-203-3807 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-00-203-3807 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. 4140-00-203-3807 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 752 for ocean manifesting and military sealift. 4140-00-203-3807 is not classified as a special type of cargo when transported by water. 4140-00-203-3807 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
