4140-00-095-3831

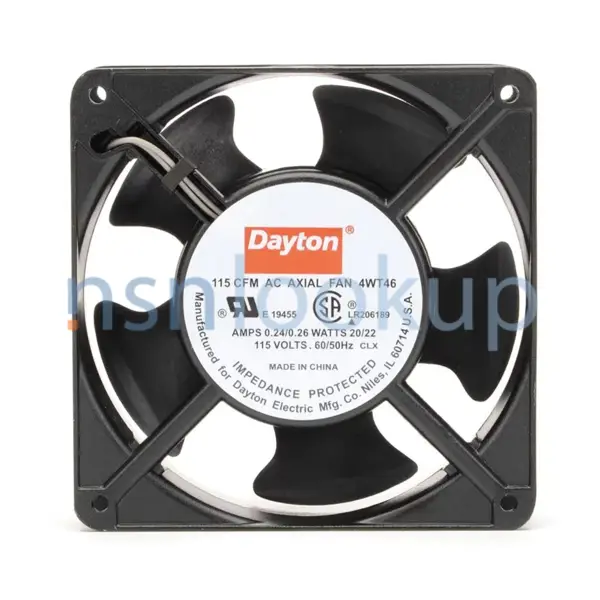

Tubeaxial Fan
4140000953831 000953831 A30122-10 4715FS-12T-B50 1209403 FAN-0051 4C550 AQ-TTS-100 19925 9100051 4715FS-12TB50-D00 23747 BS2107F-1110 1400013 4715FS-12TB50 77200044 02105908-010 02105908PC2 3-15-4475
A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures. View more Tubeaxial Fan
Managed by United States
NSN Created on 8 Dec 1972
Data Last Changed
November 2023
November 2023
NATO Update Count
80
80
NATO Data Quality
Marketplace 4140-00-095-3831
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated 20 Days Ago
4715FS-12TB50 FAN 3 EA NS
4C550 FAN,TUBEAXIAL 1 EA NS
23747 FAN,TUBEAXIAL 1 EA NS
19925 FAN,TUBEAXIAL 1 EA NS
BS2107F-1110 FAN,TUBEAXIAL 1 EA NS
1400013 FAN,TUBEAXIAL 1 EA NS
02105908PC2 FAN,TUBEAXIAL 1 EA NS
77200044 FAN,TUBEAXIAL 1 EA NS
1209403 FAN,TUBEAXIAL 1 EA NS
A30122-10 FAN,TUBEAXIAL 1 EA NS
02105908-010 FAN,TUBEAXIAL 1 EA NS
4715FS-12TB50 FAN,TUBEAXIAL 1 EA NS
4715FS-12T-B50 FAN,TUBEAXIAL 1 EA NS
9100051 FAN,TUBEAXIAL 1 EA NS
Updated Every Day 4C550 RQST NE
Updated Every Day 4140-00-095-3831 RQST NE
Updated Every Day 4140-00-095-3831 RQST
Updated Every Day 4140-00-095-3831 RQST NE
Related Documents 4140-00-095-3831 5+ Documents (More...)
A30122-10 4715FS-12T-B50 1209403 FAN-0051 4C550 AQ-TTS-100 19925 9100051 4715FS-12TB50-D00 23747 BS2107F
-1110 1400013 4715FS-12TB50 77200044 02105908-010 02105908PC2 3-15-4475 A nonpositive displacement mechanical
1 EA NS Request Quotation BS2107F-1110 FAN,TUBEAXIAL 1 EA NS Request Quotation 1400013 FAN,TUBEAXIAL
-1110 1400013 4715FS-12TB50 77200044 02105908-010 02105908PC2 3-15-4475 A nonpositive displacement mechanical
1 EA NS Request Quotation BS2107F-1110 FAN,TUBEAXIAL 1 EA NS Request Quotation 1400013 FAN,TUBEAXIAL
BS2107F-1110 FAN,TUBEAXIAL 2 EA NS Request Quotation Subscribe to View Vendor Details... 4715FS-12T-B50
FAN,TUBEAXIAL 1 EA NS Request Quotation 4C550 FAN,TUBEAXIAL 1 EA NS Request Quotation 23747 FAN
1 EA NS Request Quotation BS2107F-1110 FAN,TUBEAXIAL 1 EA NS Request Quotation 1400013 FAN,TUBEAXIAL
FAN,TUBEAXIAL 1 EA NS Request Quotation 4C550 FAN,TUBEAXIAL 1 EA NS Request Quotation 23747 FAN
1 EA NS Request Quotation BS2107F-1110 FAN,TUBEAXIAL 1 EA NS Request Quotation 1400013 FAN,TUBEAXIAL
BS2107F-1110 FAN,TUBEAXIAL 2 EA NS Request Quotation Subscribe to View Vendor Details... 4715FS-12T-B50
FAN,TUBEAXIAL 1 EA NS Request Quotation 23747 FAN,TUBEAXIAL 1 EA NS Request Quotation BS2107F-1110 FAN
FAN,TUBEAXIAL 1 EA NS Request Quotation 02105908PC2 FAN,TUBEAXIAL 1 EA NS Request Quotation 9100051
FAN,TUBEAXIAL 1 EA NS Request Quotation 23747 FAN,TUBEAXIAL 1 EA NS Request Quotation BS2107F-1110 FAN
FAN,TUBEAXIAL 1 EA NS Request Quotation 02105908PC2 FAN,TUBEAXIAL 1 EA NS Request Quotation 9100051
for $1 a day Upgrade your Account Upgrade 4140-01-422-7283Tubeaxial Fan4140014227283 014227283 AQ-TTS-100
-B1 AQ-TTS-100 A nonpositive displacement mechanical device without guide vanes and having an axial
Upgrade your Account Upgrade 5930-01-422-7078Thermostatic Switch5930014227078 014227078 CA-160-0C AQ-TTS-100
-B1 AQ-TTS-100 A nonpositive displacement mechanical device without guide vanes and having an axial
Upgrade your Account Upgrade 5930-01-422-7078Thermostatic Switch5930014227078 014227078 CA-160-0C AQ-TTS-100
Upgrade your Account Upgrade 5930-01-422-7078Thermostatic Switch5930014227078 014227078 CA-160-0C AQ-TTS-100
Upgrade your Account Upgrade 5930-01-422-7078Thermostatic Switch5930014227078 014227078CA-160-0C AQ-TTS-100
Switch5930014227078 014227078 https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-00-095-3831 Tubeaxial
Upgrade your Account Upgrade 5930-01-422-7078Thermostatic Switch5930014227078 014227078CA-160-0C AQ-TTS-100
Switch5930014227078 014227078 https//www.nsnlookup.com /fsg-41/fsc-4140/us 4140-00-095-3831 Tubeaxial
Restrictions 4140-00-095-3831
4140-00-095-3831 is a Tubeaxial Fan that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4140-00-095-3831
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4140-00-095-3831
- US Army (A920)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- CL
- US Coast Guard (C918)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- C003
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJBHD
- MOE Rule:
- S911
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- S006
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Brazil (YA01)
- Effective Date:
- 1 Jan 2004
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Australia (ZA01)
- Effective Date:
- 1 Mar 1998
- Canada (ZC01)
- Effective Date:
- 1 Apr 1998
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Aug 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4140-00-095-3831
- Part Number
- Manufacturer
- Status
- 4715FS-12TB50-D00
- Manufacturer
- 0D1M6 - Nmb Technologies Corporation (Active)
- Primary Buy
- Primary Buy
- 4715FS-12TB50-D00
- Z5B11 - Milspec Services Pty Limited (Active)
- Secondary Buy
- Secondary Buy
- 4715FS-12TB50
- U1683 - Nmb-Minebea Uk Ltd, Nhbb (Europe) (Active)
- Secondary Buy
- Secondary Buy
- A30122-10
- U2768 - Ultra Electronics Pmes Underwater (Active)
- Secondary Buy
- Secondary Buy
- 23747
- 60298 - Tandem Computers Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- BS2107F-1110
- 28875 - Imc Magnetics Corp New Hampshire Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1400013
- 02304 - Univox-California (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 4715FS-12TB50
- 0D1M6 - Nmb Technologies Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 77200044
- 29641 - International Video Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 02105908-010
- 29641 - International Video Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 02105908PC2
- 29641 - International Video Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 3-15-4475
- 81041 - Howard Industries (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A30122-10
- 60399 - Regal-Beloit Corporation (Active)
- Advisory Reference
- Advisory Reference
- 4715FS-12T-B50
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 1209403
- 15476 - Compaq Federal Llc (Active)
- Advisory Reference
- Advisory Reference
- FAN-0051
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 4C550
- 25795 - W.W. Grainger, Inc. (Active)
- Advisory Reference
- Advisory Reference
- AQ-TTS-100
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 19925
- 23905 - L-3 Communications Westwood (Active)
- Advisory Reference
- Advisory Reference
- 9100051
- 02304 - Univox-California (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4140-00-095-3831
- Characteristic
- Specifications
- FIIG
- Specifications
- A087A0
- Drive Type [AKCV]
- Direct
- Electrical Connection Type [AGBD]
- Terminal
- Air Flow Rate [CQKX]
- 110.0 Cubic Feet Per Minute Minimum
- Ambient Temp At Full Rated Power [AEHY]
- -25.0 Deg Fahrenheit And 185.0 Deg Fahrenheit
- End Item Identification [AGAV]
- W/S:Support Equipment, B-1 Aircraft; Support Equipment, B-52 Aircraft; Helicopter, Advance Attack, Ah-1W; Power Conditioning Continuation Interface Equip (Pccie); Sonar, An/Bsy-1 (V); Helicopter, Mh-53E; Defense Meteorological Satellite Program (Dmsp); Engine, Aircraft, F100-Pw-200 (F-16A/B/Cv/D); Deep Submergence Systems Programs (Dssp)
- Flow Direction [ADNK]
- Inward
- Frequency In Hertz [FREQ]
- 50.0 And 60.0
- Height [HGTH]
- 4.688 Inches Nominal
- Housing Inside Diameter [CWLX]
- 4.125 Inches Nominal
- Material [MATT]
- Plastic Blade
- Material [MATT]
- Zinc Housing
- Mounting Facility Type And Quantity [AXHR]
- 2 Flange And 8 Unthreaded Hole
- Operating Speed At Rated Capacity In Rpm [AEQC]
- 3000.0
- Inclosure Type [AKNA]
- Fully Inclosed
- Length [ABRY]
- 1.500 Inches Nominal
- Prime Mover Drive Shaft Bearing Type [CWLY]
- Sleeve
- Prime Mover Power Rating [CSYL]
- 19.0 Watts
- Prime Mover Type [AKDJ]
- Electric Motor
- Rotation Direction For Which Designed [AYSY]
- Counterclockwise
- Phase [FAAZ]
- Single
- Voltage In Volts And Current Type [CSBH]
- 115.0 Ac
- Width [ABGL]
- 4.688 Inches Nominal
- Speed Adjustments [ABBB]
- Single Speed
- Static Pressure At Specified Air Flow Rate [AJLY]
- 0.0 Inches Of Water
- Style Designator [STYL]
- Fixed
Weapon Systems (WSDC) 4140-00-095-3831
DLA Procurement Analysis 4140-00-095-3831
- Last Stock Position:
- 52 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4140-00-095-3831
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4140-00-095-3831
Freight Information 4140-00-095-3831
4140-00-095-3831 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061920. A Sub NMFC of X. It has a NMFC Description of FANS ELEC NOI IN BARREL/BOX/CRATE. 4140-00-095-3831 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34690 which rates the freight between FCL and LCL. 4140-00-095-3831 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4140-00-095-3831 is not classified as a special type of cargo when transported by water. 4140-00-095-3831 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4140-00-095-3831
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4140-00-095-3831 2 Records
Contracting Technical Data File (CTDF) 4140-00-095-3831 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
