4130-00-142-3055
Refrigerant Filter-Drier
4130001423055 001423055 S3603J3162312PC6 DN84A 504 1352SH2PC1 1352SH1PC1 309-1PC66 875-2
A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer. View more Refrigerant Filter-Drier
June 2023
28
Marketplace 4130-00-142-3055
Request a Quotation from participating marketplace vendors
Related Documents 4130-00-142-3055 1+ Documents (More...)
/fsg-41/fsc-4130/us
RQST NE Updated Every Day 4130-00-142-3055 RQST Updated Every Day 4130-00-142-3055 RQST NE Related
Documents 4130-00-142-3055 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-41/fsc-4130/us 4130
Restrictions 4130-00-142-3055
4130-00-142-3055 is a Refrigerant Filter-Drier that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4130-00-142-3055
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4130-00-142-3055
- Part Number
- Manufacturer
- Status
- S3603J3162312PC6
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- DN84A
- 97765 - Refrigeration Research, Inc. (Active)
- Primary Buy
- Primary Buy
- 504
- 58445 - Sunroc Corp (Active)
- Primary Buy
- Primary Buy
- 1352SH2PC1
- 92435 - Alco Standard Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1352SH1PC1
- 92435 - Alco Standard Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 309-1PC66
- 92435 - Alco Standard Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 875-2
- 92435 - Alco Standard Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4130-00-142-3055
- Characteristic
- Specifications
- FIIG
- Specifications
- T247-D
- End Connection Type And Location [AWPR]
- Threaded External Tube First End
- End Connection Type And Location [AWPR]
- Threaded External Tube Second End
- Connection Special Design [AWPS]
- Union
- Desiccant Capacity [AZZN]
- 18.189 Cubic Inches
- Desiccant Type [AZSZ]
- Silica Gel
- Seat Angle [CQRB]
- 45.0 Degrees
- Screw Thread Series Designator [AJYP]
- Unable To Decode
- Shape [SHPE]
- Straight
- Shell Diameter [AZZT]
- 2.000 Inches Nominal
- Shell Length [AMRQ]
- 4.000 Inches Nominal
- Shell Material [AEUG]
- Brass
- Shell Surface Treatment [AFRU]
- Lacquer, Clear
- Overall Length [ABHP]
- 0.750 Inches Nominal
- Tube Outside Diameter For Which Designed [ACSV]
- Unable To Decode
- Unit Type [APQB]
- Nonrefillable

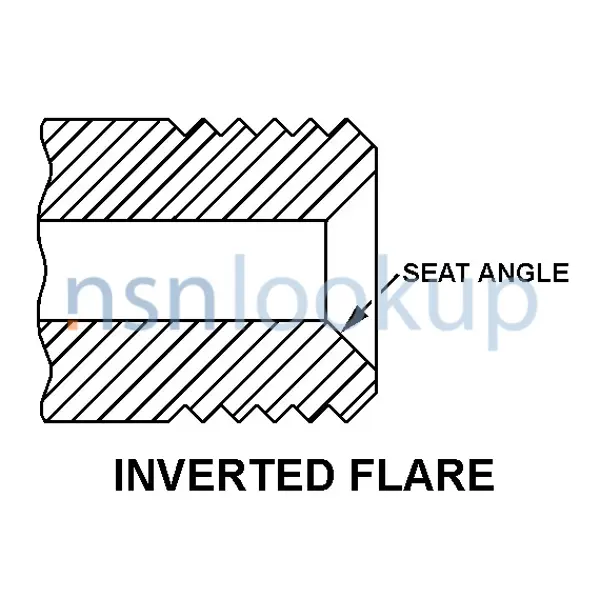

- Style Designator [STYL]
- Inverted Flare
- Thread Class [AAJD]
- Unable To Decode
- Thread Direction [AAJF]
- Unable To Decode
- Thread Size [ABUJ]
- Unable To Decode
NATO Stock Numbers Related to 4130-00-142-3055
Freight Information 4130-00-142-3055
4130-00-142-3055 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 123290. A Sub NMFC of X. It has a NMFC Description of CONDENSER/EQUALIZER/ETC. 4130-00-142-3055 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 62610 which rates the freight between FCL and LCL. 4130-00-142-3055 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4130-00-142-3055 is not classified as a special type of cargo when transported by water. 4130-00-142-3055 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
