4030-01-631-0593
S Chain Hook
4030016310593 016310593 342-8203686ITEM51
A wire formed in the shape of the letter S, used to attach wire chain to other objects. View more S Chain Hook
November 2023
1
Marketplace 4030-01-631-0593
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-631-0593 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4030-01-631-0593 RQST NE Updated Every Day 4030-01-631-0593 RQST
Updated Every Day 4030-01-631-0593 RQST NE Related Documents 4030-01-631-0593 1+ Documents ( More...
Restrictions 4030-01-631-0593
4030-01-631-0593 is a S Chain Hook that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-631-0593
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2014
- Supplementary Collaborators:
- HX
Approved Sources 4030-01-631-0593
- Part Number
- Manufacturer
- Status
- 342-8203686ITEM51
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-01-631-0593
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Copper Alloy
- Part Name Assigned By Controlling Agency [CXCY]
- Hook
- Inside Length [ADJU]
- 1.007 Inches Nominal
- Lower Loop Inside Diameter [AHMT]
- 0.560 Inches Nominal
- Material Diameter [AJRB]
- 0.093 Inches Nominal
- Material Document And Classification [MDCL]
- Astm B134 Assn Std Single Material Response
- Upper Loop Inside Diameter [AHMS]
- 0.370 Inches Nominal

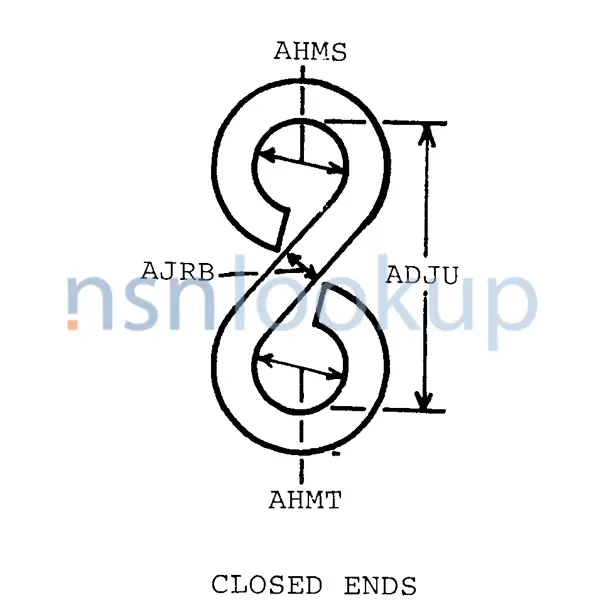

- Style Designator [STYL]
- Closed Ends
Weapon Systems (WSDC) 4030-01-631-0593
DLA Procurement Analysis 4030-01-631-0593
- Last Stock Position:
- 127 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-01-631-0593
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-01-631-0593
Freight Information 4030-01-631-0593
4030-01-631-0593 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 4030-01-631-0593 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 4030-01-631-0593 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-01-631-0593 is not classified as a special type of cargo when transported by water. 4030-01-631-0593 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 4030-01-631-0593 1 Records
Contracting Technical Data File (CTDF) 4030-01-631-0593 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
