4030-01-623-8714
Shackle
4030016238714 016238714 AK58100
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
November 2023
1
Marketplace 4030-01-623-8714
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-623-8714 2+ Documents (More...)
Updated Every Day 4030-01-623-8714 RQST NE Related Documents 4030-01-623-8714 2+ Documents ( More...
) https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-623-8714 Shackle 4030016238714016238714,AK58100
/fsg-40/fsc-4030/us
https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-624-1956 Swivel And Link Assembly 4030016241956 AK58100
Shackle 4030016238714 016238714,AK58100 RQST NE Updated Every Day 4030-01-623-8714 RQST https//
Restrictions 4030-01-623-8714
4030-01-623-8714 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-623-8714
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- HX
Approved Sources 4030-01-623-8714
- Part Number
- Manufacturer
- Status
- AK58100
- Manufacturer
- 06RG4 - Actek Mfg And Engineering Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-01-623-8714
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Features Provided [CBBL]
- W/Bolt
- Material [MATT]
- Steel Comp 316
- Opening Width [ABPP]
- 1.00 Inches Nominal
- Material Diameter [AJRB]
- 0.375 Inches Nominal
- Special Features [FEAT]
- Shackle Has A 1/4-20Unc Bolt That Has A Hex Internal Drive Style. The Shackle Swivels 360 Degrees And Pivots 180 Degrees.

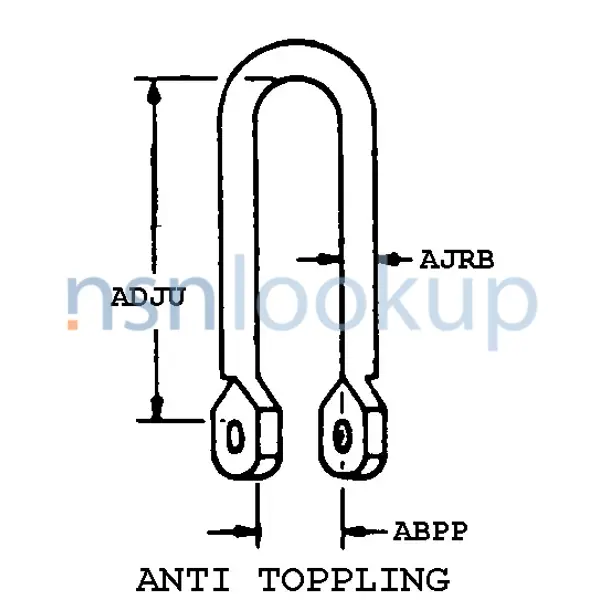

- Style Designator [STYL]
- Antitoppling
Weapon Systems (WSDC) 4030-01-623-8714
DLA Procurement Analysis 4030-01-623-8714
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-01-623-8714
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4030-01-623-8714
Freight Information 4030-01-623-8714
4030-01-623-8714 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 4030-01-623-8714 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 4030-01-623-8714 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4030-01-623-8714 is not classified as a special type of cargo when transported by water. 4030-01-623-8714 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Open Solicitations 4030-01-623-8714 1 Records
Procurement History 4030-01-623-8714 1 Records
Contracting Technical Data File (CTDF) 4030-01-623-8714 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
