4030-01-623-7961

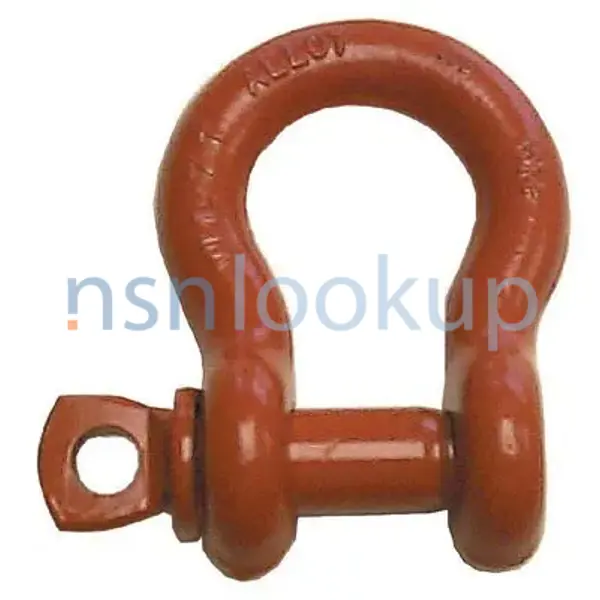

Shackle
4030016237961 016237961 M648P
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
November 2023
1
Marketplace 4030-01-623-7961
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-623-7961 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4030-01-623-7961 RQST NE Updated Every Day 4030-01-623-7961 RQST
Updated Every Day 4030-01-623-7961 RQST NE Related Documents 4030-01-623-7961 1+ Documents ( More...
Restrictions 4030-01-623-7961
4030-01-623-7961 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-623-7961
- US Air Force (FGGC)
- Effective Date:
- 1 Dec 2013
Approved Sources 4030-01-623-7961
- Part Number
- Manufacturer
- Status
- M648P
- Manufacturer
- 90202 - Columbus Mckinnon Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-01-623-7961
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- End Condition [AHNV]
- Threaded
- End Item Identification [AGAV]
- C130 Acft
- Closure Head Style [CTWJ]
- Shoulder Eye
- Material [MATT]
- Steel
- Material Diameter [AJRB]
- 0.375 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Screw Pin Midland Super Strong Anchor Shackle
- Special Features [FEAT]
- Shackle Has A Working Load Limit Of 1.5 Tons.
- Style Designator [STYL]
- Anchor
- Surface Treatment [SFTT]
- Paint
Weapon Systems (WSDC) 4030-01-623-7961
DLA Procurement Analysis 4030-01-623-7961
- Last Stock Position:
- 138 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-01-623-7961
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-01-623-7961
Freight Information 4030-01-623-7961
4030-01-623-7961 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 4030-01-623-7961 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 4030-01-623-7961 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4030-01-623-7961 is not classified as a special type of cargo when transported by water. 4030-01-623-7961 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 4030-01-623-7961 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A416V0775
- 19 Oct 2015
- Subscribe
- 250
- Subscribe
- Subscribe
- Subscribe
- SPE4A415V7162
- 30 Jan 2015
- Subscribe
- 126
- Subscribe
- Subscribe
- Subscribe
- SPE4A614VL446
- 21 Aug 2014
- Subscribe
- 69
- Subscribe
- Subscribe
- Subscribe
- SPE4A614ME625
- 09 Jun 2014
- Subscribe
- 41
- Subscribe
- Subscribe
- Subscribe
- SPE4A614VE907
- 23 May 2014
- Subscribe
- 69
- Subscribe
- Subscribe
- Subscribe
- SPE4A414VA112
- 07 Mar 2014
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4030-01-623-7961 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- G
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
