4030-01-616-2428
Eye And Link Swivel
4030016162428 016162428 1016644
A round or oval part and either a D-shaped or a heart-shaped part mounted on a common axis so as to permit relative rotation between the parts. View more Eye And Link Swivel
January 2023
3
Marketplace 4030-01-616-2428
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-616-2428 5+ Documents (More...)
4030-01-616-2428 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-616-2428
/fsg-40/fsc-4030/us 4030-01-616-2428 Sources Datasheet Management RQST NE Updated Every Day 4030-01-
www.nsnlookup.com /fsg-39/fsc-3940/be 3940-13-119-8500 Hoisting Link 3940131198500131198500 HR-125M 1016644
enable JavaScript in your web browser . 3940-13-119-8500Hoisting Link3940131198500 131198500HR-125M 1016644
Eye And Link Swivel 4030016162428 016162428 394-1400 -2428 Eye And Link Swivel 4030016162428 https
www.nsnlookup.com /fsg-40/fsc-4030/fr 4030-14-393-7520 Eye And Link Swivel 4030143937520143937520 4030016162428
www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-686-3499 Eye And Link Swivel 4030016863499016863499 1016644
Eye And Link Swivel 4030016162428 016162428 $1 a day Upgrade your Account Upgrade 4030-01-616-2428Eye
Eye And Link Swivel 4030016162428 016162428 Upgrade your Account Upgrade 4030-01-616-2428Eye https
Restrictions 4030-01-616-2428
4030-01-616-2428 is a Eye And Link Swivel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-616-2428
- Canada (ZC01)
- Effective Date:
- 1 Feb 2013
Approved Sources 4030-01-616-2428
- Part Number
- Manufacturer
- Status
- 1016644
- Manufacturer
- 51606 - Crosby Group Inc The National Swage (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-01-616-2428
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0

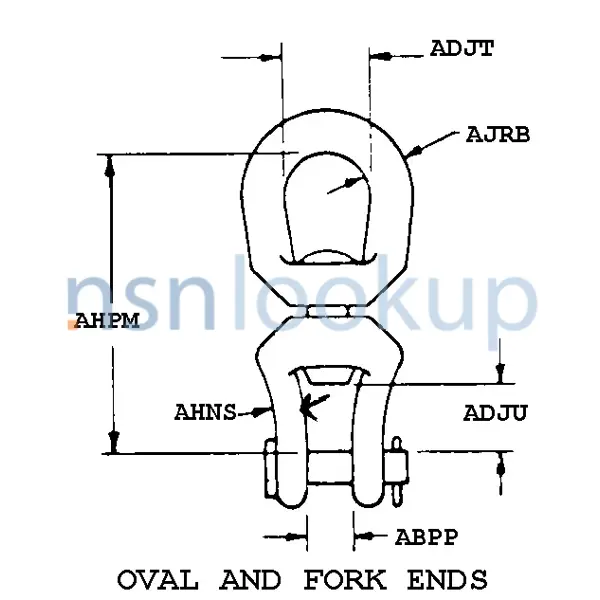

- Style Designator [STYL]
- Oval And Fork Ends
- Opening Width [ABPP]
- 50.8 Millimeters Nominal
- Inside Length [ADJU]
- 52.1 Millimeters Nominal
- Material Diameter [AJRB]
- 17.5 Millimeters Nominal
- Safe Operating Load Rating [CTXK]
- 2700.0 Kilograms Maximum
- Features Provided [CBBL]
- W/Bolt
- Special Features [FEAT]
- Individually Proof Loaded To 2-1/2 Times Working Load Limit Based On 4:1 Design Factor; Bolt Specification Is A Grade 12,9 Alloy Socket Head Cap Screw To Din 912, Size M20 X 2.50 X 65
- End Item Identification [AGAV]
- Victoria Class Submarine
- Part Name Assigned By Controlling Agency [CXCY]
- Metric Swival Hoist Ring
Similar Supply Items to 4030-01-616-2428
Freight Information 4030-01-616-2428
4030-01-616-2428 has freight characteristics managed by the Department of the Air Force.. 4030-01-616-2428 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
