4030-01-601-1419
Shackle
4030016011419 016011419 1403
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
October 2023
1
Marketplace 4030-01-601-1419
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-601-1419 2+ Documents (More...)

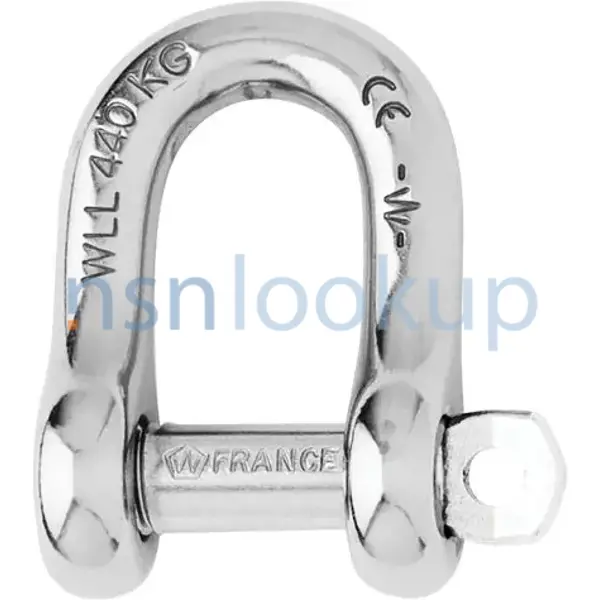

/fsc-4030/us 4030-01-601-1419 Shackle 4030016011419 016011419,1403 Photo 1/3 NSN 4030-01-601-1419 (Identification
) 2/3 NSN 4030-01-601-1419 (Identification) 3/3 - Day 4030-01-601-1419 RQST NE Updated Every Day 4030
Restrictions 4030-01-601-1419
4030-01-601-1419 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-601-1419
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2012
Approved Sources 4030-01-601-1419
- Part Number
- Manufacturer
- Status
- 1403
- Manufacturer
- 0KWT7 - Wichard, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-01-601-1419
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Steel Comp 316
- Material Document And Classification [MDCL]
- Stainless Steel 316L Mfr Ref Single Material Response
- Style Designator [STYL]
- Anchor
- Opening Width [ABPP]
- 12.0 Millimeters Nominal
- Inside Length [ADJU]
- 20.0 Millimeters Nominal
- Material Diameter [AJRB]
- 7.0 Millimeters Nominal
- Closure Head Style [CTWJ]
- Shoulder Eye
- Part Name Assigned By Controlling Agency [CXCY]
- Captive Pin Shackle
Similar Supply Items to 4030-01-601-1419
Freight Information 4030-01-601-1419
4030-01-601-1419 has freight characteristics.. 4030-01-601-1419 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
