4030-01-528-7060
Shackle
4030015287060 015287060 7521393-1 1203 K-10-08
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
October 2023
1
Marketplace 4030-01-528-7060
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-528-7060 4+ Documents (More...)

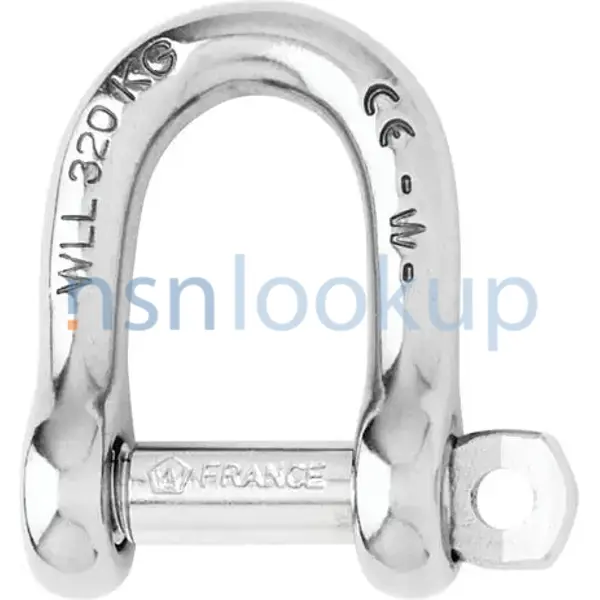

Photo 1/3 NSN 4030-01-528-7060 (Identification) 2/3 NSN 4030-01-528-7060 (Identification) 3/3 -
Quotation FedMall Updated Every 15 Minutes 4030-01-528-7060 BUY NE FedMall Updated Every Day 4030-01
Shackle 4030015287060 015287060,7521393-1 Upgrade for $1 a day Upgrade your Account Upgrade 4030
-01-528-7060Shackle4030015287060 015287060 7521393 /www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-528
Restrictions 4030-01-528-7060
4030-01-528-7060 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-528-7060
- US Navy (N9BC)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4030-01-528-7060
- Part Number
- Manufacturer
- Status
- 7521393-1
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Source Control
- Source Control
- 1203
- 0KWT7 - Wichard, Inc. (Active)
- Primary Buy
- Primary Buy
- K-10-08
- 7J136 - U.S. Rigging Supply Corp. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4030-01-528-7060
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- End Condition [AHNV]
- Threaded
- End Item Identification [AGAV]
- Mk75 Mod0, Versatile Exercise
- Breaking Strength [BZQQ]
- 3500.0 Pounds Nominal
- Closure Head Style [CTWJ]
- Shoulder Eye
- Material [MATT]
- Steel Corrosion Resisting
- Opening Width [ABPP]
- 0.472 Inches Nominal
- Inside Length [ADJU]
- 0.787 Inches Nominal
- Locking Device Type [AZAF]
- Pin
- Material Diameter [AJRB]
- 0.236 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Straight Shackle, Non-Magnetic
- Special Features [FEAT]
- Material 316 Stainless Steel; Threaded Pin
- Style Designator [STYL]
- Chain
DLA Procurement Analysis 4030-01-528-7060
Management Data 4030-01-528-7060
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-01-528-7060
Freight Information 4030-01-528-7060
4030-01-528-7060 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 4030-01-528-7060 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 4030-01-528-7060 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4030-01-528-7060 is not classified as a special type of cargo when transported by water. 4030-01-528-7060 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-01-528-7060
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4030-01-528-7060 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
