4030-01-478-4274

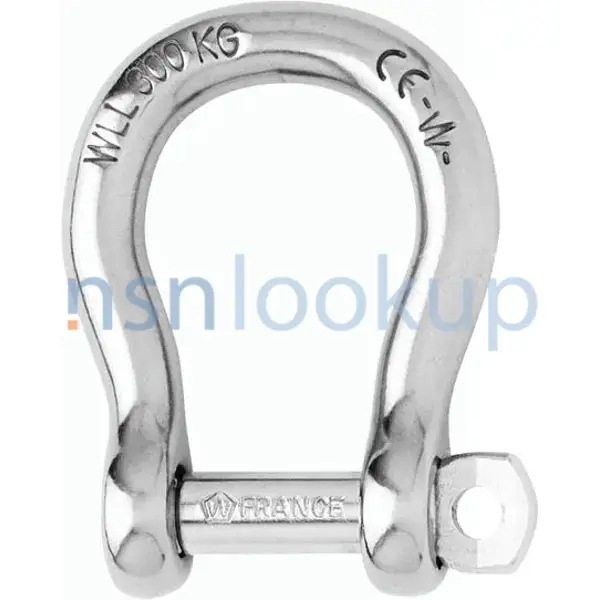

Shackle
4030014784274 014784274 1244
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
November 2023
1
Marketplace 4030-01-478-4274
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-478-4274 4+ Documents (More...)
SHACKLE 100 EA NS Request Quotation Updated Every Day 4030-01-478-4274 RQST NE Updated Every Day 4030
( More... ) https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-478-4274 Shackle 4030014784274 014784274,1244
Restrictions 4030-01-478-4274
4030-01-478-4274 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-478-4274
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- United Kingdom (ZK01)
- Effective Date:
- 1 Sep 2000
Approved Sources 4030-01-478-4274
- Part Number
- Manufacturer
- Status
- 1244
- Manufacturer
- 0KWT7 - Wichard, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-01-478-4274
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Steel Comp 316
- Style Designator [STYL]
- Anchor
- Opening Width [ABPP]
- 0.6299 Inches Nominal
- Inside Length [ADJU]
- 1.4567 Inches Nominal
- Breaking Strength [BZQQ]
- 2700.0 Kilograms Nominal
- Safe Operating Load Rating [CTXK]
- 1250.000 Kilograms Nominal
- Special Features [FEAT]
- Diameter 8Mm; Drop Forged For Superior Strength; Pin Lock
DLA Procurement Analysis 4030-01-478-4274
- Last Stock Position:
- 63 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-01-478-4274
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-01-478-4274
Freight Information 4030-01-478-4274
4030-01-478-4274 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 4030-01-478-4274 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 4030-01-478-4274 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4030-01-478-4274 is not classified as a special type of cargo when transported by water. 4030-01-478-4274 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-01-478-4274
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4030-01-478-4274 1 Records
Contracting Technical Data File (CTDF) 4030-01-478-4274 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
