4030-01-247-9481
Wire Rope Swaging Sleeve
4030012479481 012479481 4030-005-0001 LOWER 4030-005 RW4-8
A compression fitting designed to make a permanent eye, lap, or running splice on an item. View more Wire Rope Swaging Sleeve
November 2023
3
Marketplace 4030-01-247-9481
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-247-9481 1+ Documents (More...)
/fsg-40/fsc-4030/us
BUY NE FedMall Updated Every Day 4030-01-247-9481 RQST NE Updated Every Day 4030-01-247-9481 RQST
Updated Every Day 4030-01-247-9481 RQST NE Related Documents 4030-01-247-9481 1+ Documents ( More...
Restrictions 4030-01-247-9481
4030-01-247-9481 is a Wire Rope Swaging Sleeve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4030-01-247-9481
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4030-01-247-9481
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4030-01-247-9481
- Part Number
- Manufacturer
- Status
- 4030-005-0001 LOWER
- Manufacturer
- 04614 - Textron Systems Corporation (Active)
- Primary Buy
- Primary Buy
- RW4-8
- 91796 - Detroit Diamond Drilling, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4030-005
- 04614 - Textron Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4030-01-247-9481
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Steel

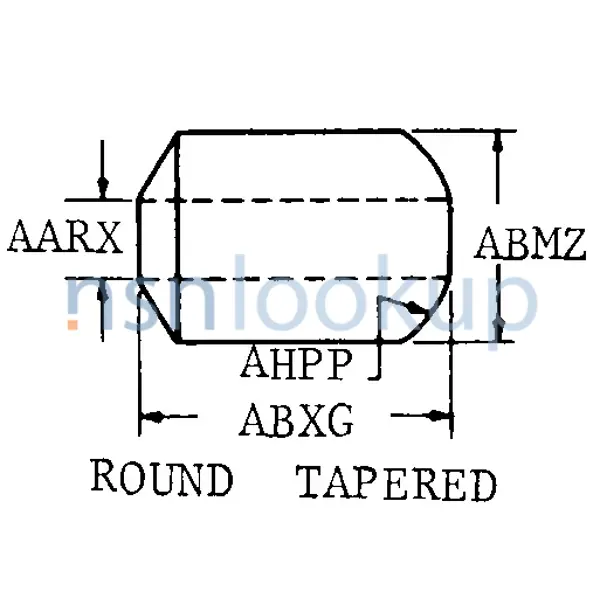

- Style Designator [STYL]
- Round Tapered
- Inside Diameter [AARX]
- 0.380 Inches Nominal
- Diameter [ABMZ]
- 0.480 Inches Nominal
- Overall Length [ABXG]
- 0.860 Inches Nominal
- Outer Radius [AHPP]
- 0.060 Inches Nominal
- Accommodated Material Diameter [AHNK]
- 0.250 Inches Nominal
- Safe Operating Load Rating [CTXK]
- 6800.000 Pounds Nominal
Weapon Systems (WSDC) 4030-01-247-9481
DLA Procurement Analysis 4030-01-247-9481
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-01-247-9481
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-01-247-9481
Freight Information 4030-01-247-9481
4030-01-247-9481 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 053390. A Sub NMFC of Z. It has a NMFC Description of CORD/CORDAGE/ROPE/ETC. 4030-01-247-9481 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 28110 which rates the freight between FCL and LCL. 4030-01-247-9481 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 709 for ocean manifesting and military sealift. 4030-01-247-9481 is not classified as a special type of cargo when transported by water. 4030-01-247-9481 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-01-247-9481
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 4030-01-247-9481 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
