4030-01-220-0628
Shackle
4030012200628 012200628 55465-2 LE148-0014-0002
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
May 2023
5
Marketplace 4030-01-220-0628
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-220-0628 3+ Documents (More...)
LE148-0014-0002 SHACKLE 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 4030-01-220-0628 BUY
//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-01-220-0628 Shackle 4030012200628 012200628,55465-2 55465
Shackle 4030012200628 012200628,55465-2 (Identification) 1/2 NSN 4030-01-220-0628 (Identification
NE FedMall Updated Every Day 4030-01-220-0628 RQST NE Updated Every Day 4030-01-220-0628 RQST Updated
Restrictions 4030-01-220-0628
4030-01-220-0628 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-01-220-0628
- US Air Force (FXGC)
- Effective Date:
- 1 Feb 2007
Approved Sources 4030-01-220-0628
- Part Number
- Manufacturer
- Status
- 55465-2
- Manufacturer
- 84256 - Avibank Mfg., Inc. (Active)
- Primary Buy
- Primary Buy
- LE148-0014-0002
- 43999 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4030-01-220-0628
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- End Item Identification [AGAV]
- B-1B Acft
- Breaking Strength [BZQQ]
- 300.0 Pounds Nominal

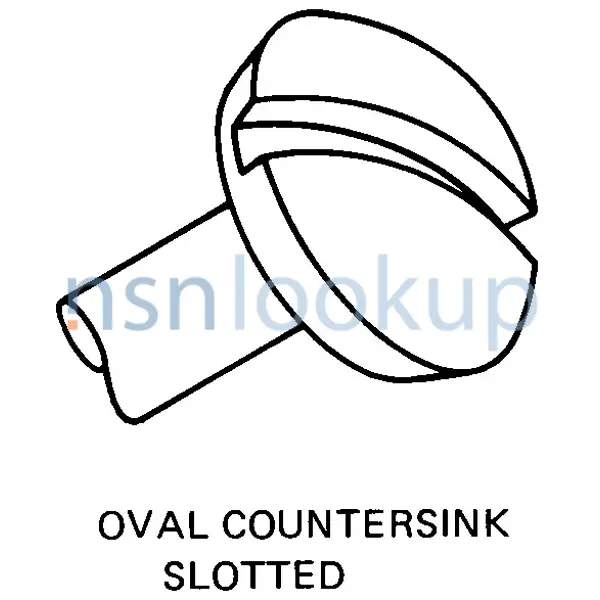

- Closure Head Style [CTWJ]
- Oval Countersink Slotted
- Material [MATT]
- Steel
- Opening Width [ABPP]
- 0.750 Inches Minimum And 0.780 Inches Maximum
- Inside Length [ADJU]
- 1.190 Inches Minimum And 1.220 Inches Maximum
- Material Diameter [AJRB]
- 0.190 Inches Minimum And 0.220 Inches Maximum
- Special Features [FEAT]
- Zinc Plate Per Astm-B633,Type 2,Sc 4,Except Cres Parts To Be Passivated Per Qq-P-35; Has Quick Release Pin 0.3720Min,0.3735Max In. Dia
- Style Designator [STYL]
- Anchor
Weapon Systems (WSDC) 4030-01-220-0628
DLA Procurement Analysis 4030-01-220-0628
Management Data 4030-01-220-0628
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 4030-01-220-0628
Freight Information 4030-01-220-0628
4030-01-220-0628 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 4030-01-220-0628 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 4030-01-220-0628 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 4030-01-220-0628 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-01-220-0628 is not classified as a special type of cargo when transported by water. 4030-01-220-0628 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4030-01-220-0628 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
