4030-01-213-4384
Guy Anchor
4030012134384 012134384 SPO-851 A3002126
An anchor which may be any one of several designs, such as a ribbed cone, an assembly of expanding blade or plates, or a helical balde or spring. The item must have either an integral driving rod or accommodations for affixing a driving rod which may not be included. It may include a cable assembly which facilitates installation and is an integral part of the item. Does not include guy wire(s) or rope(s). Excludes POST, SCREW METAL. View more Guy Anchor
November 2023
4
Marketplace 4030-01-213-4384
Request a Quotation from participating marketplace vendors
Related Documents 4030-01-213-4384 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4030-01-213-4384 RQST NE Updated Every Day 4030-01-213-4384 RQST
Updated Every Day 4030-01-213-4384 RQST NE Related Documents 4030-01-213-4384 1+ Documents ( More...
Restrictions 4030-01-213-4384
4030-01-213-4384 is a Guy Anchor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4030-01-213-4384
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4030-01-213-4384
- US Army (A920)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CL
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Supplementary Collaborators:
- HD
Approved Sources 4030-01-213-4384
- Part Number
- Manufacturer
- Status
- SPO-851
- Manufacturer
- 73569 - La Chance Ltd (Obsolete)
- Original Design
- Original Design
- A3002126
- 80063 - Us Army Communications & Electronics (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4030-01-213-4384
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Steel
- Surface Treatment [SFTT]
- Zinc
- Design Type [APGF]
- Corkscrew
- Overall Length [ABHP]
- 42.000 Inches Nominal
- Overall Width [ABMK]
- 4.000 Inches Nominal
- Material Thickness [ABPX]
- 0.750 Inches Nominal
- Rod Type [AHGW]
- Integral
- Upper End Style [AHGZ]
- Oval

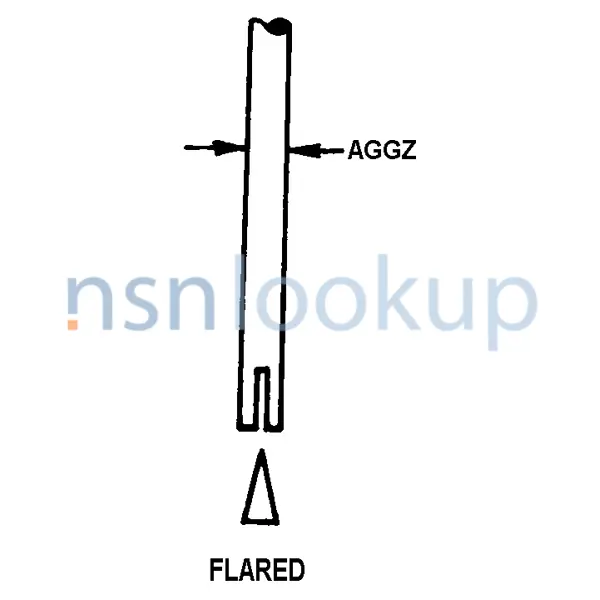

- Lower End Style [AHHA]
- Flared
- Shank Length [AAUG]
- 40.000 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.750 Inches Nominal
Weapon Systems (WSDC) 4030-01-213-4384
DLA Procurement Analysis 4030-01-213-4384
- Last Stock Position:
- 51 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-01-213-4384
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4030-01-213-4384
Freight Information 4030-01-213-4384
4030-01-213-4384 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 104030. A Sub NMFC of X. It has a NMFC Description of ANCHORS I/S BUILDING/MAST/POLE ETC. 4030-01-213-4384 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53620 which rates the freight between FCL and LCL. 4030-01-213-4384 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-01-213-4384 is not classified as a special type of cargo when transported by water. 4030-01-213-4384 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-01-213-4384
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- No Requirement
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4030-01-213-4384 1 Records
Contracting Technical Data File (CTDF) 4030-01-213-4384 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
