4030-00-914-4705
Shackle
4030009144705 009144705 7358028 7357960
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
May 2023
7
Marketplace 4030-00-914-4705
Request a Quotation from participating marketplace vendors
Related Documents 4030-00-914-4705 5+ Documents (More...)
Details... 7358028 SHACKLE 12 EA NS Request Quotation FedMall Updated Every 15 Minutes 4030-00-914-4705
//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-00-914-4705 Shackle 4030009144705 009144705,7358028 73580287357960
/www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-385-5486 Electrical-Electronic Component Heat Sink 7358028
RQST NE Updated Every Day 5999-01-385-5486 RQST https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-00-914-4705
SHACKLE RQST NS Request Quotation 7357960 SHACKLE RQST NS Request Quotation Updated Every Day 4030-00
009144705 7358028 7357960 Shackle 4030006759029 006759029,7357960 Upgrade for $1 a day Upgrade your
SHACKLE RQST NS Request Quotation 7357960 SHACKLE RQST NS Request Quotation Updated Every Day 4030-00
009144705 7358028 7357960 01173007973579657357960 for $1 a day Upgrade your Account Upgrade 4030-00-
SHACKLE RQST NS Request Quotation 7357960 SHACKLE RQST NS Request Quotation Updated Every Day 4030-00
RR-C-271 TY IV A CL 1 7357960-7357967 SCBX1 SDBX1 7357967 An open or closed link of various shapes with
Restrictions 4030-00-914-4705
4030-00-914-4705 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-00-914-4705
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4030-00-914-4705
- Part Number
- Manufacturer
- Status
- 7358028
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 7357960
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4030-00-914-4705
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- End Condition [AHNV]
- Threaded

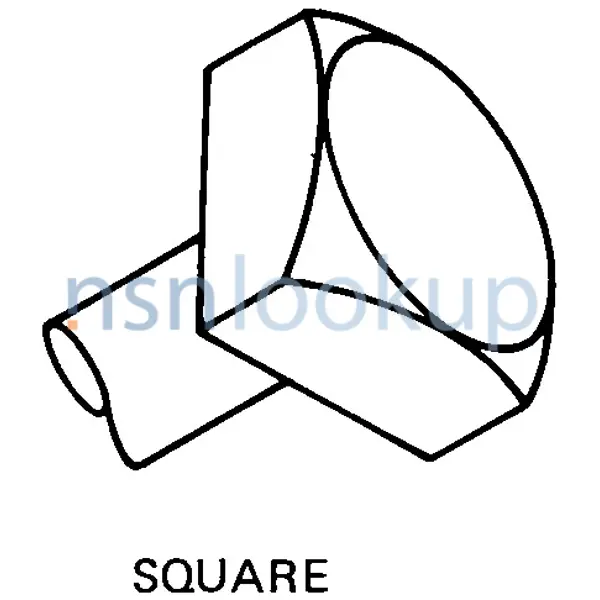

- Closure Head Style [CTWJ]
- Square
- Features Provided [CBBL]
- Forelock Pinhole And Retaining Chain
- Material [MATT]
- Steel
- Opening Width [ABPP]
- 1.812 Inches Nominal
- Inside Length [ADJU]
- 4.250 Inches Nominal
- Locking Device Type [AZAF]
- Cotter Pin
- Material Diameter [AJRB]
- 1.125 Inches Nominal
- Style Designator [STYL]
- Anchor
- Surface Treatment Document And Classification [STDC]
- Dod-P-16232 Fed Spec Single Treatment Response
- Surface Treatment [SFTT]
- Phosphate
Weapon Systems (WSDC) 4030-00-914-4705
DLA Procurement Analysis 4030-00-914-4705
Management Data 4030-00-914-4705
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-00-914-4705
Freight Information 4030-00-914-4705
4030-00-914-4705 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 4030-00-914-4705 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 4030-00-914-4705 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4030-00-914-4705 is not classified as a special type of cargo when transported by water. 4030-00-914-4705 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-00-914-4705
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4030-00-914-4705 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
