4030-00-871-1334
Hoist Hook
4030008711334 008711334 1050221 2 1000-2C 2C
A strongly constructed metal item having a relatively narrow, shallow throat. It may or may not have a safety throat closure. Excludes HOOK, LOGGING LINE and HOOK, CARGO. View more Hoist Hook
November 2023
5
Marketplace 4030-00-871-1334
Request a Quotation from participating marketplace vendors
Related Documents 4030-00-871-1334 5+ Documents (More...)
(Identification) 1/2 NSN 4030-00-871-1334 (Identification) 2/2 - - 1.
2C HOOK,HOIST 3 EA NS Request Quotation Subscribe to View Vendor Details... 2 HOOK,HOIST 1000 EA NS Request
FSG 61 Electric Wire, and Power and Distribution Equipment 2.
Hoist Hook 4030008711334 008711334,1050221,2 Upgrade for $1 a day Upgrade your Account Upgrade
FSG 59 Electrical and Electronic Equipment Components 2.
Hoist Hook 4030008711334 008711334,1050221,2 5349 Serie Di Connettori P830212RNCC: 3 | RNVC: 2
Hoist Hook 4030008711334 008711334,1050221,2 Vendor Details... 2 HOOK,HOIST 1000 EA NS Request
Interconnectors from Italy (IT) Feb 2013 6060-15-177-5349 Serie Di Connettori P830212RNCC: 3 | RNVC: 2
Interconnectors from Italy (IT) Feb 2013 6060-15-177 https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-00-871-1334
Hoist Hook 4030008711334 008711334,1050221,2 www.nsnlookup.com /fsg-40/fsc-4030/us 4030-00-871-
Restrictions 4030-00-871-1334
4030-00-871-1334 is a Hoist Hook that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4030-00-871-1334
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4030-00-871-1334
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Supplementary Collaborators:
- GT
Approved Sources 4030-00-871-1334
- Part Number
- Manufacturer
- Status
- 1050221
- Manufacturer
- 75535 - The Crosby Group Llc (Active)
- Primary Buy
- Primary Buy
- 2
- 09729 - E. D. Bullard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1000-2C
- 09729 - E. D. Bullard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2C
- 09729 - E. D. Bullard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4030-00-871-1334
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0

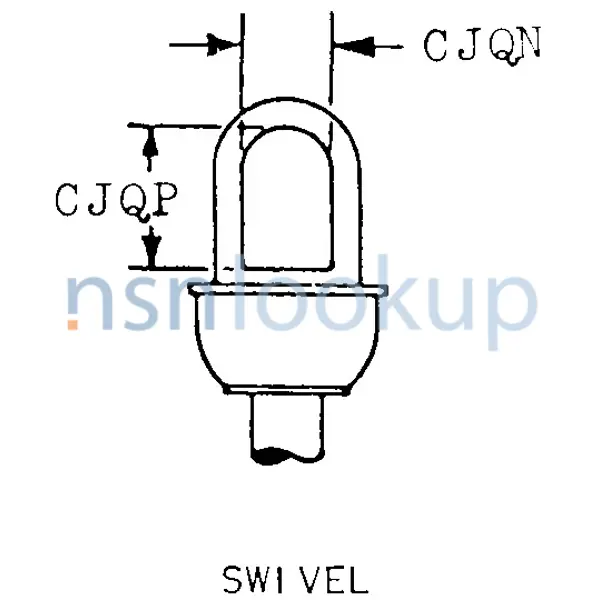

- Connection Style [AHNC]
- Swivel
- Connection To Body Relationship [AHNE]
- Parallel
- Connection Inside Length [CJQP]
- 1.438 Inches Nominal
- Connection Inside Width [CJQN]
- 1.125 Inches Nominal
- Features Provided [CBBL]
- Outward Safety Throat Closure
- Material Document And Classification [MDCL]
- Sae Assn Std All Material Responses
- Material [MATT]
- Steel Comp 1029 Or Steel Comp 1030
- Safe Operating Load Rating [CTXK]
- 1600.000 Pounds Minimum
- Style Designator [STYL]
- Regular
Weapon Systems (WSDC) 4030-00-871-1334
DLA Procurement Analysis 4030-00-871-1334
- Last Stock Position:
- 20 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-00-871-1334
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-00-871-1334
Freight Information 4030-00-871-1334
4030-00-871-1334 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095370. A Sub NMFC of X. It has a NMFC Description of HOOKS NOI I/S GALVANIZE/PLAIN ETC. 4030-00-871-1334 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49920 which rates the freight between FCL and LCL. 4030-00-871-1334 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4030-00-871-1334 is not classified as a special type of cargo when transported by water. 4030-00-871-1334 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-00-871-1334
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4030-00-871-1334 2 Records
Contracting Technical Data File (CTDF) 4030-00-871-1334 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- H
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
