4030-00-740-9864
Wire Rope Drum Clamp Wedge
4030007409864 007409864 HC75 7409864 113563R1 915601 1682N2 KC9303
A solid metallic item, longer in relation to its width and thickness, with flat parallel sides and one edge tapered along its entire length. One edge is grooved and the other edge is rounded to join a counterpart. When wedged into position it clamps the end of wire rope to a drum. Excludes WEDGE, WIRE ROPE SOCKET. View more Wire Rope Drum Clamp Wedge
May 2023
30
Marketplace 4030-00-740-9864
Request a Quotation from participating marketplace vendors
Related Documents 4030-00-740-9864 5+ Documents (More...)
HC75 WEDGE,DRUM CLAMP,WIRE ROPE 90 EA NS Request Quotation Subscribe to View Vendor Details... 7409864
HC75 WEDGE,DRUM CLAMP,WIRE ROPE 15 EA NS Request Quotation Subscribe to View Vendor Details... 7409864
HC75 WEDGE,DRUM CLAMP,WIRE ROPE 90 EA NS Request Quotation Subscribe to View Vendor Details... 7409864
//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-00-740-9864 Wire Rope Drum Clamp Wedge 4030007409864 day
HC75 WEDGE,DRUM CLAMP,WIRE ROPE 90 EA NS Request Quotation Subscribe to View Vendor Details... 7409864
HC75 WEDGE,DRUM CLAMP,WIRE ROPE 15 EA NS Request Quotation Updated Every Day 4030-00-594-3219 RQST Updated
163-1975 7025-21-882-3833 4030-14-553-1826 4030-21-909-1257 4030-33-209-8000 4030-14-489-3750 4030-00-740-9864
4030-14-524-3749 4030-01-606-6904 393-0536 https 7025218823833 489-3750 4030-00-740 489-3750 4030-00-740-9864
fsc-4030/fr 4030-14-524-3749 Wire Rope Drum Clamp Wedge 4030145243749 7025218823833 489-3750 4030-00-740-9864
Restrictions 4030-00-740-9864
4030-00-740-9864 is a Wire Rope Drum Clamp Wedge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-00-740-9864
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2000
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4030-00-740-9864
- Part Number
- Manufacturer
- Status
- 7409864
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 113563R1
- 89346 - Navistar Intl Corp Truck Br Ohio (Active)
- Secondary Buy
- Secondary Buy
- 915601
- 58275 - Sasco Inc Canadian Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- HC75
- 40152 - Vme Americas Inc Sub Of Vme Group N (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1682N2
- 56442 - Diamond Reo Truck Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- KC9303
- 56442 - Diamond Reo Truck Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 113563R1
- 31007 - Navistar International Corporation (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- HC75
- 1X0J7 - Volvo Construction Equipment North (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4030-00-740-9864
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Iron Malleable

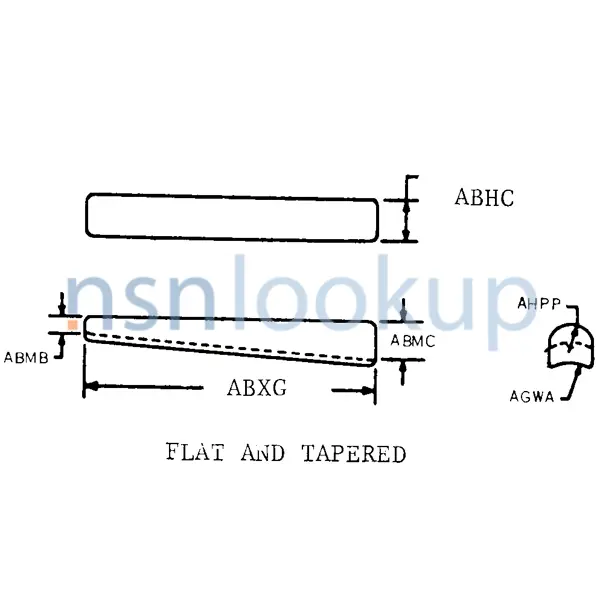

- Style Designator [STYL]
- Flat And Tapered
- Overall Width [ABHC]
- 0.625 Inches Nominal
- Minor Thickness [ABMB]
- 0.250 Inches Nominal
- Major Thickness [ABMC]
- 0.562 Inches Nominal
- Overall Length [ABXG]
- 4.500 Inches Nominal
- Groove Radius [AGWA]
- 0.438 Inches Nominal
- Outer Radius [AHPP]
- 0.125 Inches Nominal
Weapon Systems (WSDC) 4030-00-740-9864
DLA Procurement Analysis 4030-00-740-9864
Management Data 4030-00-740-9864
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 4030-00-740-9864
Freight Information 4030-00-740-9864
4030-00-740-9864 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 4030-00-740-9864 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 4030-00-740-9864 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-00-740-9864 is not classified as a special type of cargo when transported by water. 4030-00-740-9864 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-00-740-9864
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4030-00-740-9864 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
