4030-00-641-0605
Wire Rope Socket
4030006410605 006410605 92757-1
A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified). View more Wire Rope Socket
November 2023
3
Marketplace 4030-00-641-0605
Request a Quotation from participating marketplace vendors
Related Documents 4030-00-641-0605 3+ Documents (More...)
SOCKET,WIRE ROPE RQST NS Request Quotation Updated Every Day 4030-00-641-0605 RQST NE Updated Every
Day 4030-00-641-0605 RQST Updated Every Day 4030-00-641-0605 RQST NE Related Documents 4030-00-641-0605
Wire Rope Socket 4030006410605 006410605 for $1 a day Upgrade your Account Upgrade 4030-00-641-
0605Wire Rope Socket4030006410605 006410605 92757 Request a Quotation from participating marketplace
Wire Rope Socket 4030006410605 006410605 for $1 a day Upgrade your Account Upgrade 4030-00-641-
0605Wire Rope Socket4030006410605 006410605 92757 Request a Quotation from participating marketplace
Restrictions 4030-00-641-0605
4030-00-641-0605 is a Wire Rope Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4030-00-641-0605
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4030-00-641-0605
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- France (ZF01)
- Effective Date:
- 1 Oct 2005
Approved Sources 4030-00-641-0605
- Part Number
- Manufacturer
- Status
- 92757-1
- Manufacturer
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Primary Buy
- Primary Buy

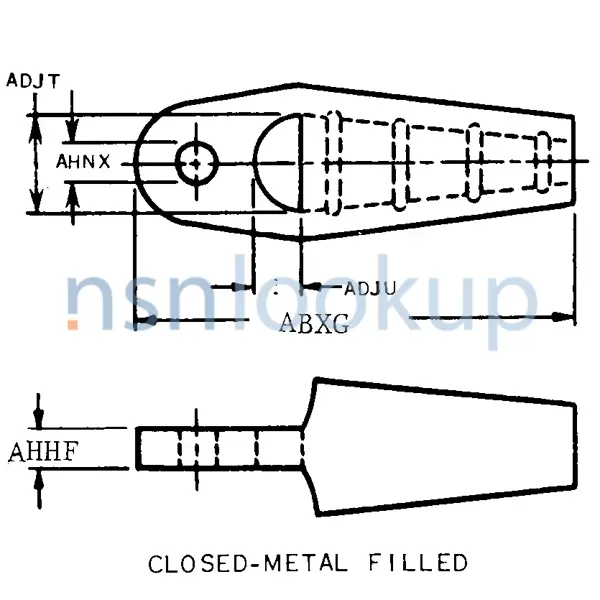

Datasheet 4030-00-641-0605
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Accommodated Material Diameter [AHNK]
- 0.875 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.875 Inches Minimum And 0.877 Inches Maximum
- Material [MATT]
- Steel
- Inside Length [ADJU]
- 2.156 Inches Nominal
- Inside Width [ADJT]
- 2.312 Inches Nominal
- Overall Length [ABXG]
- 9.000 Inches Nominal
- Tongue Thickness [AHHF]
- 0.865 Inches Minimum And 0.870 Inches Maximum
- Style Designator [STYL]
- Closed-Metal Filled
Weapon Systems (WSDC) 4030-00-641-0605
DLA Procurement Analysis 4030-00-641-0605
- Last Stock Position:
- 26 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-00-641-0605
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 4030-00-641-0605
Freight Information 4030-00-641-0605
4030-00-641-0605 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 4030-00-641-0605 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 4030-00-641-0605 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 4030-00-641-0605 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-00-641-0605 is not classified as a special type of cargo when transported by water. 4030-00-641-0605 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-00-641-0605
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4030-00-641-0605 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
