4030-00-526-7704
Socket Wire Rope Terminal
4030005267704 005267704 MIL-DTL-781 NAS1435E4 RA2482-4 SA361-4
An item designed to receive a swaged ball end termination. One end is spherical shaped and the opposite end is eye or fork shaped for attaching to another part. View more Socket Wire Rope Terminal
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
33
33
NATO Data Quality
Marketplace 4030-00-526-7704
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
RA2482-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS
SA361-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS
Updated Every Day 4030-00-526-7704 RQST NE
Updated Every Day 4030-00-526-7704 RQST
Updated Every Day 4030-00-526-7704 RQST NE
Related Documents 4030-00-526-7704 5+ Documents (More...)
MIL-DTL-781 NAS1435E4 RA2482-4 SA361-4 An item designed to receive a swaged ball end termination.
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET RQST NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET RQST
RA2482-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS Request Quotation NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 321
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET RQST NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET RQST
RA2482-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS Request Quotation NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 321
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 99 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET RQST NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET RQST
SA361-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS Request Quotation NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 321
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET RQST NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET RQST
SA361-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS Request Quotation NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 321
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET 99 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET RQST NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET RQST
SA361-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET 321
NAS1435E4 TERMINAL,WIRE ROPE,SOCKET RQST NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET RQST
SA361-4 TERMINAL,WIRE ROPE,SOCKET 321 EA NS Request Quotation RA2482-4 TERMINAL,WIRE ROPE,SOCKET 321
Wire Rope Terminal4030011082629 011082629 SA361 https//www.nsnlookup.com /fsg-40/fsc-4030/us 4030-00-526-7704
Socket Wire Rope Terminal 4030005267704 Upgrade 4030-00-526-7704Socket Wire Rope Terminal4030005267704
005267704 MIL-DTL-781 NAS1435E4 RA2482-4 SA361 SOCKET 321 EA NS Request Quotation NAS1435E4 TERMINAL
Socket Wire Rope Terminal 4030005267704 Upgrade 4030-00-526-7704Socket Wire Rope Terminal4030005267704
005267704 MIL-DTL-781 NAS1435E4 RA2482-4 SA361 SOCKET 321 EA NS Request Quotation NAS1435E4 TERMINAL
day Upgrade your Account Upgrade 4030-00-132-9197Stud Wire Rope Terminal4030001329197 001329197 MIL-DTL-781
Socket Wire Rope Terminal 4030005267704 day Upgrade your Account Upgrade 4030-00-526-7704Socket
Wire Rope Terminal4030005267704 005267704 MIL-DTL-781 321 EA NS Request Quotation NAS1435E4 TERMINAL
Socket Wire Rope Terminal 4030005267704 day Upgrade your Account Upgrade 4030-00-526-7704Socket
Wire Rope Terminal4030005267704 005267704 MIL-DTL-781 321 EA NS Request Quotation NAS1435E4 TERMINAL
Restrictions 4030-00-526-7704
4030-00-526-7704 is a Socket Wire Rope Terminal that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4030-00-526-7704
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4030-00-526-7704
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHX
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 May 2013
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Italy (ZR01)
- Effective Date:
- 1 Jan 1994
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4030-00-526-7704
- Part Number
- Manufacturer
- Status
- NAS1435E4
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MIL-DTL-781
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- RA2482-4
- 01976 - Acco Industries Inc Sub Of Babcock (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- SA361-4
- 37581 - Macwhyte Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

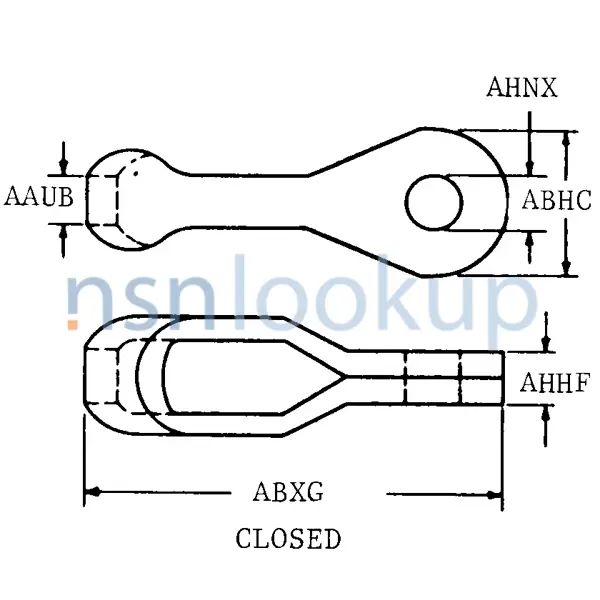

Datasheet 4030-00-526-7704
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Accommodated Material Diameter [AHNK]
- 0.125 Inches Nominal
- Bolt Hole Diameter [AHNX]
- 0.188 Inches Minimum And 0.192 Inches Maximum
- Hole Diameter [AAUB]
- 0.203 Inches Minimum And 0.210 Inches Maximum
- Material [MATT]
- Steel Corrosion Resisting
- Overall Height [CTHX]
- 0.190 Inches Nominal
- Overall Length [ABXG]
- 0.188 Inches Nominal
- Overall Width [ABHC]
- 0.500 Inches Nominal
- Style Designator [STYL]
- Closed
- Surface Treatment [SFTT]
- Passivate
- Tongue Thickness [AHHF]
- 0.190 Inches Nominal
Weapon Systems (WSDC) 4030-00-526-7704
DLA Procurement Analysis 4030-00-526-7704
- Last Stock Position:
- 305 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4030-00-526-7704
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4030-00-526-7704
4030-00-267-7112 4030-00-618-2903 4030-00-977-2197 4030-01-608-3492 4030-13-001-9697 4030-01-417-3825 4030-00-404-5714 4030-21-712-4100 4030-27-014-9174 4030-33-001-1135 4030-13-114-3492 4030-00-267-7113 4030-01-454-4659 4030-01-676-9189 4030-21-712-4102 4030-15-059-4750 4030-14-323-6597 4030-14-323-6596
Freight Information 4030-00-526-7704
4030-00-526-7704 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 4030-00-526-7704 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 4030-00-526-7704 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-00-526-7704 is not classified as a special type of cargo when transported by water. 4030-00-526-7704 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-00-526-7704
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4030-00-526-7704 10 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A523V3621
- 27 Sep 2023
- Subscribe
- 168
- Subscribe
- Subscribe
- Subscribe
- SPE4A523V2236
- 01 Jun 2023
- Subscribe
- 340
- Subscribe
- Subscribe
- Subscribe
- SPE4A523V1137
- 24 Feb 2023
- Subscribe
- 110
- Subscribe
- Subscribe
- Subscribe
- SPE4A522V2248
- 28 Jun 2022
- Subscribe
- 98
- Subscribe
- Subscribe
- Subscribe
- SPE4A522P6736
- 04 May 2022
- Subscribe
- 26
- Subscribe
- Subscribe
- Subscribe
- SPE4A521V2080
- 27 Jul 2021
- Subscribe
- 182
- Subscribe
- Subscribe
- Subscribe
- SPE4A619V5401
- 17 Dec 2018
- Subscribe
- 1018
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V1885
- 31 Oct 2017
- Subscribe
- 1011
- Subscribe
- Subscribe
- Subscribe
- SPE4A414VL212
- 14 Aug 2014
- Subscribe
- 1820
- Subscribe
- Subscribe
- Subscribe
- SPE4A613VJ547
- 22 Jul 2013
- Subscribe
- 807
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4030-00-526-7704 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
