4030-00-267-7076
Shackle
4030002677076 002677076 MILC18295
An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified). View more Shackle
May 2023
4
Marketplace 4030-00-267-7076
Request a Quotation from participating marketplace vendors
Related Documents 4030-00-267-7076 5+ Documents (More...)
Day 4030-00-267-7076 RQST NE Related Documents 4030-00-267-7076 5+ Documents ( More... ) https//www.nsnlookup.com
/fsg-40/fsc-4030/us 4030-00-267-7076 Shackle 4030002677076002677076,MILC18295 MILC18295 An open or closed
-00-267-7076Shackle4030002677076 002677076 MILC18295 MILC18295 An open or closed link of various shapes
MILC18295 An open or closed link of various shapes with extended legs. https//www.nsnlookup.com /fsg
/fsg-40/fsc-4010/us
Shackle 4030002677076 002677076,MILC18295 https//www.nsnlookup.com / fsg-40/fsc-4010/us 4010-00
Shackle 4030002677076 002677076,MILC18295 https//www.nsnlookup.com / fsg-40/fsc-4010/us 4010-00
Shackle 4030002677076 002677076,MILC18295 https//www.nsnlookup.com / https//www.nsnlookup.com /
Shackle 4030002677076 002677076,MILC18295 https//www.nsnlookup.com / https//www.nsnlookup.com /
/fsg-40/fsc-4010/us
. https//www.nsnlookup.com /fsg -40/fsc-4030/us 4030-00-267-7076 Shackle 4030002677076 002677076,MILC18295
Shackle 4030002923784002923784,MILC18295 Upgrade for $1 a day Upgrade your Account Upgrade 4030 https
Restrictions 4030-00-267-7076
4030-00-267-7076 is a Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-00-267-7076
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
Approved Sources 4030-00-267-7076
- Part Number
- Manufacturer
- Status
- MILC18295
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4030-00-267-7076
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- End Condition [AHNV]
- Plain
- Breaking Strength [BZQQ]
- 200000.0 Pounds Nominal

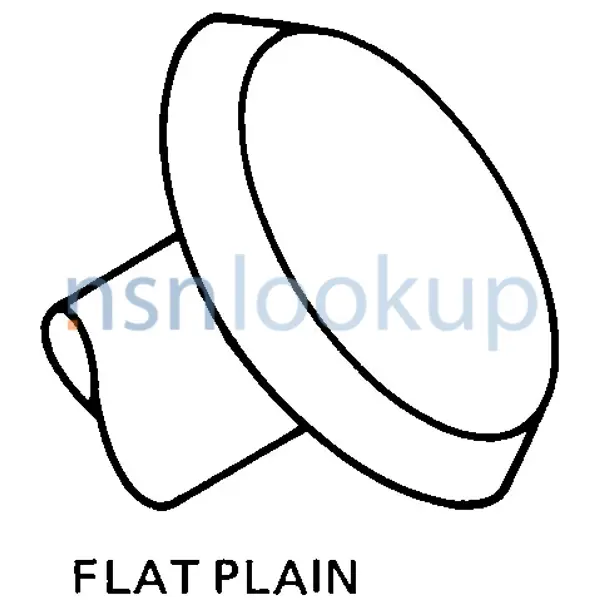

- Closure Head Style [CTWJ]
- Flat Plain
- Departure From Cited Designator [ZZZX]
- As Modified By Chain Size
- Features Provided [CBBL]
- Forelock Pinhole
- Material [MATT]
- Steel
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Group
- Opening Width [ABPP]
- 3.250 Inches Nominal
- Inside Length [ADJU]
- 13.875 Inches Nominal
- Locking Device Type [AZAF]
- Rivet
- Material Diameter [AJRB]
- 2.813 Inches Nominal
- Special Features [FEAT]
- W/Rd Cross-Sectional Shape Closure Pin,2.250 In. Dia
- Style Designator [STYL]
- Chain
DLA Procurement Analysis 4030-00-267-7076
Management Data 4030-00-267-7076
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4030-00-267-7076
Freight Information 4030-00-267-7076
4030-00-267-7076 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 4030-00-267-7076 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 4030-00-267-7076 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4030-00-267-7076 is not classified as a special type of cargo when transported by water. 4030-00-267-7076 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4030-00-267-7076 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
