4030-00-235-0737
Anchor Rod
4030002350737 002350737 J7528
A straight shank bar of circular cross section, having one end straight or angled and designed with an eye(s) or other provisions for securing a guy wire, cable, or rope. The opposite end is externally threaded or otherwise provided with a means of attaching to another item or a solid foundation. Has no designed means of anchoring into the ground. Excludes threaded end types with oval eye or round eye, for which, see BOLT, EYE. View more Anchor Rod
May 2023
2
Marketplace 4030-00-235-0737
Request a Quotation from participating marketplace vendors
Related Documents 4030-00-235-0737 2+ Documents (More...)
BUY NE FedMall Updated Every Day 4030-00-235-0737 RQST NE Updated Every Day 4030-00-235-0737 RQST
Updated Every Day 4030-00-235-0737 RQST NE Related Documents 4030-00-235-0737 1+ Documents ( More...
Restrictions 4030-00-235-0737
4030-00-235-0737 is a Anchor Rod that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4030-00-235-0737
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
Approved Sources 4030-00-235-0737
- Part Number
- Manufacturer
- Status
- J7528
- Manufacturer
- 74999 - Joslyn Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 4030-00-235-0737
- Characteristic
- Specifications
- FIIG
- Specifications
- A105A0
- Material [MATT]
- Steel
- Surface Treatment [SFTT]
- Zinc
- Accommodated Material Diameter [AHNK]
- 0.500 Inches Maximum

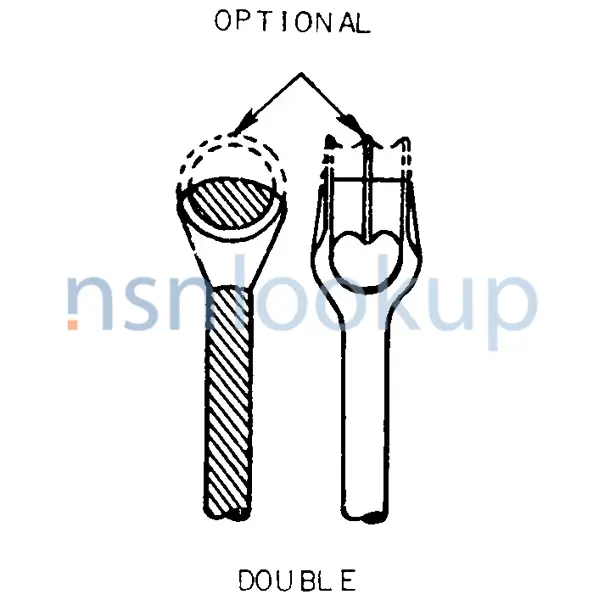

- Upper End Style [AHGZ]
- Double
- Lower End Style [AHHA]
- Threaded
- Shank Length [AAUG]
- 96.000 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.750 Inches Nominal
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 0.750 Inches
- Thread Quantity Per Inch [CMLP]
- 10
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 96.000 Inches Nominal
DLA Procurement Analysis 4030-00-235-0737
Management Data 4030-00-235-0737
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4030-00-235-0737
Freight Information 4030-00-235-0737
4030-00-235-0737 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 106510. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S PLAIN/GALVANIZED ETC. 4030-00-235-0737 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54760 which rates the freight between FCL and LCL. 4030-00-235-0737 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4030-00-235-0737 is not classified as a special type of cargo when transported by water. 4030-00-235-0737 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4030-00-235-0737
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 4030-00-235-0737 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
