4020-01-119-2159
Single Leg Fiber Rope Assembly
4020011192159 011192159 5166714
An assembly of fiber rope with or without terminal attachments in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain intermediate and/or end attachments such as sliding or fixed ring(s) or hook(s). View more Single Leg Fiber Rope Assembly
November 2023
7
Marketplace 4020-01-119-2159
Request a Quotation from participating marketplace vendors
Related Documents 4020-01-119-2159 1+ Documents (More...)
Updated Every Day 4020-01-119-2159 RQST NE Related Documents 4020-01-119-2159 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-40/fsc-4020/us 4020-01-119-2159 Single Leg Fiber Rope Assembly 4020011192159
Restrictions 4020-01-119-2159
4020-01-119-2159 is a Single Leg Fiber Rope Assembly that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4020-01-119-2159
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4020-01-119-2159
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Australia (ZA01)
- Effective Date:
- 1 Dec 2001
Approved Sources 4020-01-119-2159
- Part Number
- Manufacturer
- Status
- 5166714
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 4020-01-119-2159
- Characteristic
- Specifications
- FIIG
- Specifications
- A15300
- Attachment Style And Location [BWCR]
- 21 First Terminal Attachment First End
- Circumference [BWSQ]
- 1.500 Inches Nominal
- Color [HUES]
- White
- Length [ABTL]
- 10.000 Feet Minimum And 14.000 Feet Maximum
- Loop Retention Method [BWCM]
- Splice
- Rope End Conditioning Method [AJYH]
- Served
- Rope Style [AJXF]
- Thimble And Plain End

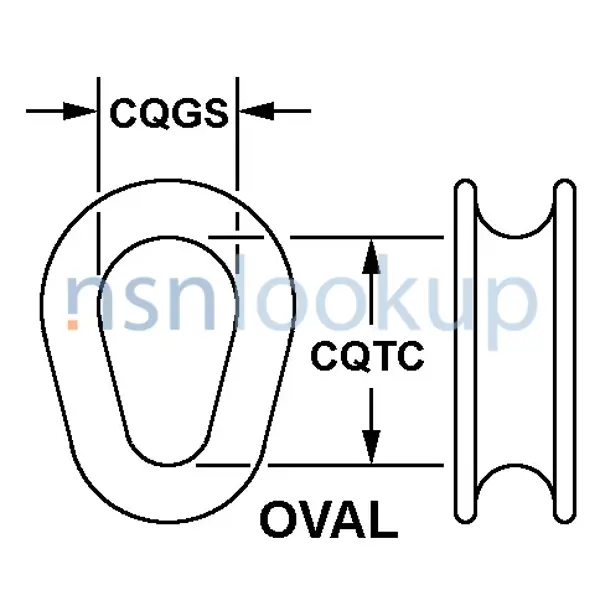

- Thimble Style [AJYE]
- Oval
Weapon Systems (WSDC) 4020-01-119-2159
DLA Procurement Analysis 4020-01-119-2159
- Last Stock Position:
- 93 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4020-01-119-2159
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4020-01-119-2159
Freight Information 4020-01-119-2159
4020-01-119-2159 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 053390. A Sub NMFC of Z. It has a NMFC Description of CORD/CORDAGE/ROPE/ETC. 4020-01-119-2159 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 28110 which rates the freight between FCL and LCL. 4020-01-119-2159 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 793 for ocean manifesting and military sealift. 4020-01-119-2159 is not classified as a special type of cargo when transported by water. 4020-01-119-2159 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4020-01-119-2159
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 4020-01-119-2159 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
