4010-01-050-1605
Wire Rope
4010010501605 010501605 RR-W-410 12408000-30
Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications. View more Wire Rope
November 2023
5
Marketplace 4010-01-050-1605
Request a Quotation from participating marketplace vendors
Related Documents 4010-01-050-1605 5+ Documents (More...)
RR-W-410 ROPE,WIRE 4 EA NS Request Quotation FedMall Updated Every 15 Minutes 4010-01-050-1605 BUY NE
/fsg-40/fsc-4010/us 4010-01-050-1605 Wire Rope 4010010501605010501605,RR-W-410 RR-W-41012408000-30 Three
Wire Rope 4010010501605 010501605,RR-W-410 US) 4. 4010-01-050-1605 Marketplace Restrictions https
Wire Rope 4010010501605 010501605,RR-W-410 FedMall Updated Every Day 4010-01-050-1605 RQST NE Updated
Every Day 4010-01-050-1605 RQST Updated Every fsc-4010/us 4010-01-050-1605 Wire Rope 4010010501605010501605
Promulgated (Active) Incomplete Standard RR-W-410-138 RRW410 RR-W-410 81348 - Federal Specifications
Promulgated (Active) Incomplete Standard RR-W-410-138 RRW410 RR-W-410 81348 - Federal Specifications
-138 RRW410 RR-W-410 81348 - Federal Specifications Promulgated (Active) Incomplete Standard RR-W-
RR-W-410 81348 - Federal Specifications Wire Rope 4010219076910219076910,RR-W-410 Promulgated (Active
Restrictions 4010-01-050-1605
4010-01-050-1605 is a Wire Rope that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4010-01-050-1605
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4010-01-050-1605
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 4010-01-050-1605
- Part Number
- Manufacturer
- Status
- RR-W-410
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 12408000-30
- 95310 - Unidynamics/Saint Louis Inc Conroe (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12408000-30
- 0DHG4 - Gulf Coast Holdings, Inc (Active)
- Advisory Reference
- Advisory Reference
- 12408000-30
- 98523 - Jered Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4010-01-050-1605
- Characteristic
- Specifications
- FIIG
- Specifications
- A082A0
- Breaking Strength [BZQQ]
- 8200.000 Pounds Minimum
- Core Construction [CTXX]
- Fiber
- Diameter [ABMZ]
- 0.375 Inches Nominal Rope
- Material [MATT]
- Steel Traction Strand
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 2 Class And 2 Construction
- Lay Method [AJXH]
- Right Regular All Layers
- Prefabrication Form [CTXY]
- Preformed
- Overall Length [ABHP]
- 100.000 Feet Nominal

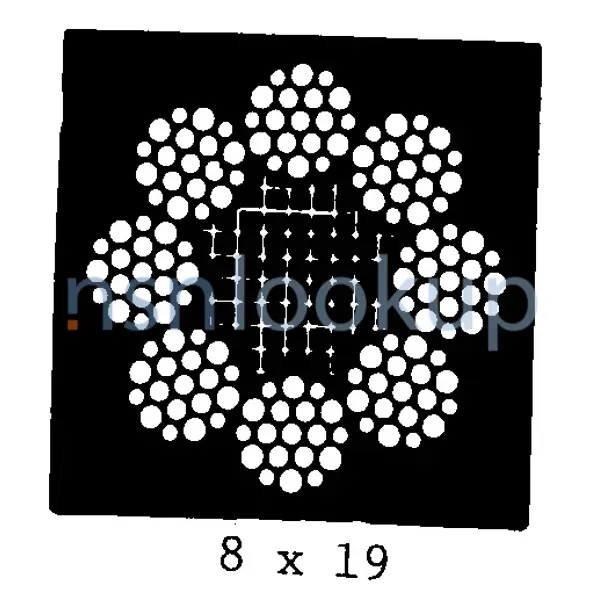

- Style Designator [STYL]
- 8 X 19
Weapon Systems (WSDC) 4010-01-050-1605
DLA Procurement Analysis 4010-01-050-1605
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4010-01-050-1605
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Jan 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4010-01-050-1605
Freight Information 4010-01-050-1605
4010-01-050-1605 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 107520. A Sub NMFC of X. It has a NMFC Description of WIRE ROPE/STRAND I/S. 4010-01-050-1605 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55290 which rates the freight between FCL and LCL. 4010-01-050-1605 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4010-01-050-1605 is not classified as a special type of cargo when transported by water. 4010-01-050-1605 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4010-01-050-1605
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4010-01-050-1605 1 Records
Contracting Technical Data File (CTDF) 4010-01-050-1605 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
