4010-00-907-0662

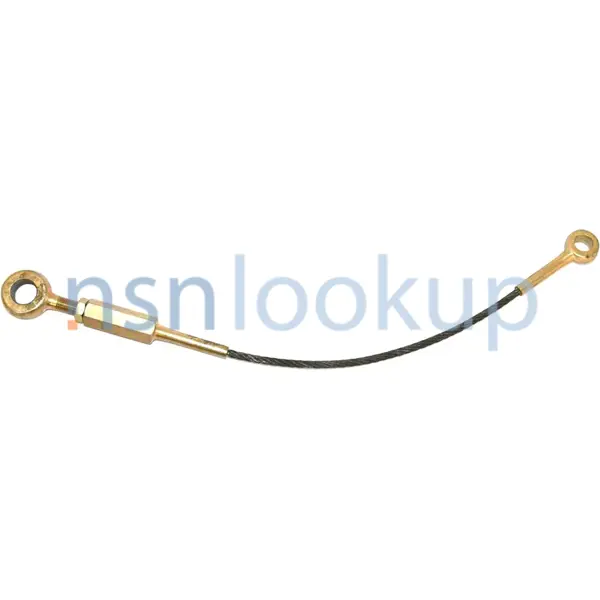

Single Leg Wire Rope Assembly
4010009070662 009070662 10954637
An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL. View more Single Leg Wire Rope Assembly
July 2025
34
Marketplace 4010-00-907-0662
Request a Quotation from participating marketplace vendors
Related Documents 4010-00-907-0662 5+ Documents (More...)
4010-00-907-0662 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-907-0662
Single Leg Wire Rope Assembly 4010009070662 NE Updated Every Day 4010-00-907-0662 RQST Updated Every
Restrictions 4010-00-907-0662
4010-00-907-0662 is a Single Leg Wire Rope Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4010-00-907-0662
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A183
- Supplementary Receivers:
- AZBF
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 10 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
Approved Sources 4010-00-907-0662
- Part Number
- Manufacturer
- Status
- 10954637
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 4010009070662
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4010-00-907-0662
- Characteristic
- Specifications
- FIIG
- Specifications
- A082A0
- Breaking Strength [BZQQ]
- 4200.000 Pounds Minimum
- Core Construction [CTXX]
- Wire
- Diameter [ABMZ]
- 0.187 Inches Minimum Rope And 0.205 Inches Maximum Rope
- Material Document And Classification [MDCL]
- Mil-W-1511 Mil Spec Single Material Response Wire Rope
- Material [MATT]
- Steel Wire Rope
- Lay Method [AJXH]
- Right Regular All Layers
- Prefabrication Form [CTXY]
- Preformed
- Style Designator [STYL]
- 7 X 19
Weapon Systems (WSDC) 4010-00-907-0662
DLA Procurement Analysis 4010-00-907-0662
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4010-00-907-0662
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4010-00-907-0662
Freight Information 4010-00-907-0662
4010-00-907-0662 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 030940. A Sub NMFC of X. It has a NMFC Description of BBC WIRE ROPE R STRAND. 4010-00-907-0662 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 15090 which rates the freight between FCL and LCL. 4010-00-907-0662 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4010-00-907-0662 is not classified as a special type of cargo when transported by water. 4010-00-907-0662 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4010-00-907-0662
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Special requirement – See specific instructions or drawings provided
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4010-00-907-0662 2 Records
Contracting Technical Data File (CTDF) 4010-00-907-0662 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
