4010-00-740-9808
Single Leg Wire Rope Assembly
4010007409808 007409808 F2123 7409808 101874R91 S5357
An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL. View more Single Leg Wire Rope Assembly
January 2023
17
Marketplace 4010-00-740-9808
Request a Quotation from participating marketplace vendors
Related Documents 4010-00-740-9808 5+ Documents (More...)
/fsg-40/fsc-4010/us 4010-00-740-9808 Single Leg Wire Rope Assembly 4010007409808 7409808F2123101874R91S5357
RQST NE Updated Every Day 4010-00-740-9808 RQST Updated Every Day 4010-00-740-9808 RQST NE Related
5365 -99-373-1096 Bush 5365993731096 993731096,5ND-F2123 Metal Plate 9515016876674016876674,F2123 https
Assembly 4010007409808 Active) NATO Reference RNCC 6 RNVC 9 DAC 9 S5357 https//www.nsnlookup.com /fsg
Metal Plate 9515016876674016876674,F2123 687-6674 Metal Plate 9515016876674016876674,F2123 https //www.nsnlookup.com
/fsg-40/fsc-4010/us 4010-00-740-9808 Single Leg Wire Rope Assembly 4010007409808 your Account Upgrade
5092 Part NumberManufacturerStatus1 2879-001 https https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-740-9808
Single Leg Wire Rope Assembly 4010007409808 9808 Single Leg Wire Rope Assembly 4010007409808 https
Day 5305-99-135-0713 RQST NE Related Documents https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-740-9808
007409808 7409808 F2123 101874R91 S5357 X 9560SB001 73160 - Federal-Mogul Corp Powertrain (Obsolete)
Restrictions 4010-00-740-9808
4010-00-740-9808 is a Single Leg Wire Rope Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4010-00-740-9808
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4010-00-740-9808
- Part Number
- Manufacturer
- Status
- 101874R91
- Manufacturer
- 89346 - Navistar Intl Corp Truck Br Ohio (Active)
- Primary Buy
- Primary Buy
- F2123
- 80406 - Bethlehem Steel Corp (Obsolete)
- Secondary Buy
- Secondary Buy
- 7409808
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- 101874R91
- 31007 - Navistar International Corporation (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- S5357
- 01976 - Acco Industries Inc Sub Of Babcock (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4010-00-740-9808
- Characteristic
- Specifications
- FIIG
- Specifications
- A082A0
- Material [MATT]
- Steel Wire Rope

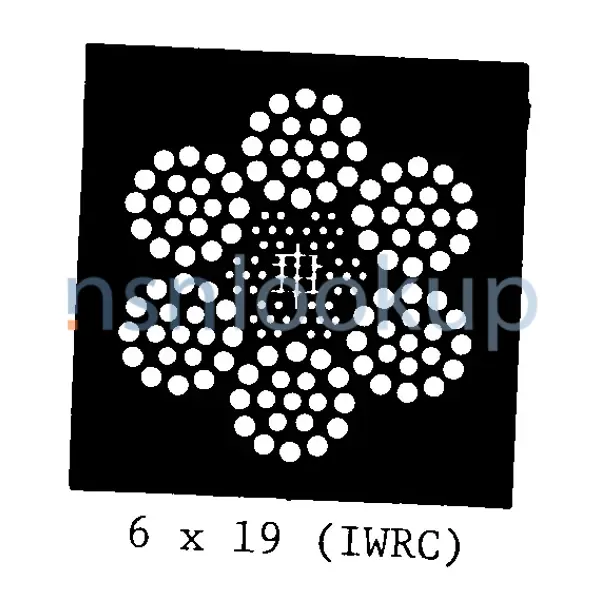

- Style Designator [STYL]
- 6 X 19 (Iwrc)
- Prefabrication Form [CTXY]
- Preformed
- Overall Length [ABHP]
- 206.000 Feet Nominal
- Diameter [ABMZ]
- 0.625 Inches Nominal Rope
- End Type [APTD]
- Terminal Attachment First End
- End Type [APTD]
- Plain Second End
- Attachment Style [AMXF]
- Hoist Hook Terminal Attachment First End
- Attachment Style [AMXF]
- Pear Shaped Link 1St Intermediate Attachment
- Attachment Style [AMXF]
- Pear Shaped Link 2Nd Intermediate Attachment
- Special Features [FEAT]
- W/Two Steel 5/8 In. Swing Links Attached To Pear Shape Link
Similar Supply Items to 4010-00-740-9808
Freight Information 4010-00-740-9808
4010-00-740-9808 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 107520. A Sub NMFC of X. It has a NMFC Description of WIRE ROPE/STRAND I/S. 4010-00-740-9808 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 4010-00-740-9808 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 55290 which rates the freight between FCL and LCL. 4010-00-740-9808 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4010-00-740-9808 is not classified as a special type of cargo when transported by water. 4010-00-740-9808 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
