4010-00-292-9869
Wire Rope
4010002929869 002929869 MILW18242
Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications. View more Wire Rope
May 2023
7
Marketplace 4010-00-292-9869
Request a Quotation from participating marketplace vendors
Related Documents 4010-00-292-9869 5+ Documents (More...)
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-292-9869 Wire Rope 4010002929869002929869,MILW18242
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-292-9869 Wire Rope 4010002929869002929869,MILW18242
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-292-9869 Wire Rope 4010002929869 002929869,MILW18242
Upgrade for $1 a day Upgrade your Account Upgrade 4010-00-292-9869Wire Rope4010002929869 002929869 MILW18242
Wire Rope 4010007825431007825431,MILW18242 Upgrade for $1 a day Upgrade your Account Upgrade 4010 -00
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-292-9869 Wire Rope 4010002929869 002929869,MILW18242
Rope 4010001849556001849556,MILW18242 United States (US) 4. 4010-00-184-9556 Marketplace Restrictions
https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-00-292-9869 Wire Rope 4010002929869 002929869,MILW18242
-00-292-9869Wire Rope4010002929869 002929869 MILW18242 https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010
-00-292-9866 Wire Rope 4010002929866002929866,MILW18242 https//www.nsnlookup.com /fsg-40/fsc-4010/us
Restrictions 4010-00-292-9869
4010-00-292-9869 is a Wire Rope that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4010-00-292-9869
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4010-00-292-9869
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Supplementary Collaborators:
- GE
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- United States of America (ZZ)
Approved Sources 4010-00-292-9869
- Part Number
- Manufacturer
- Status
- MILW18242
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4010-00-292-9869
- Characteristic
- Specifications
- FIIG
- Specifications
- A082A0
- Breaking Strength [BZQQ]
- 32000.000 Pounds Minimum
- Core Construction [CTXX]
- Wire
- Departure From Cited Designator [ZZZX]
- As Modified By Solid Wire Core
- Diameter [ABMZ]
- 0.797 Inches Nominal Rope
- Material [MATT]
- Steel Comp 305 Strand
- Nondefinitive Spec/Std Data [ZZZT]
- 5 Type
- Lay Method [AJXH]
- Left Regular All Layers
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Strand
- Prefabrication Form [CTXY]
- Preformed
- Style Designator [STYL]

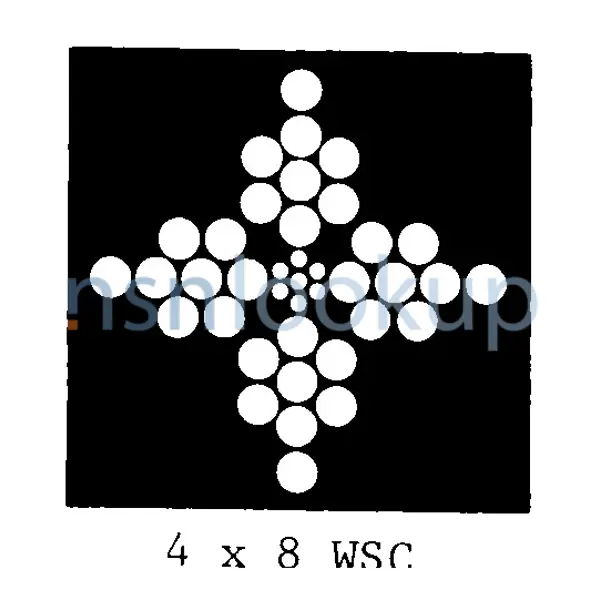

- 4 X 8 Wsc
DLA Procurement Analysis 4010-00-292-9869
Management Data 4010-00-292-9869
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- RL
- Subscribe
- 1
- RL
- Oct 2021
- Department of the Navy (DN)
- RL
- Subscribe
- 1
- RL
- Oct 2020
- Department of the Navy (DN)
- RL
- Subscribe
- 1
- RL
- Oct 2019
- Department of the Navy (DN)
- RL
- Subscribe
- 1
- RL
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- K
- U/I Contains 4500 Ft
- 00000004500FT
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 4500 Ft
- 00000004500FT
- K
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4010-00-292-9869
Freight Information 4010-00-292-9869
4010-00-292-9869 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 107520. A Sub NMFC of X. It has a NMFC Description of WIRE ROPE/STRAND I/S. 4010-00-292-9869 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55290 which rates the freight between FCL and LCL. 4010-00-292-9869 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4010-00-292-9869 is not classified as a special type of cargo when transported by water. 4010-00-292-9869 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4010-00-292-9869 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
