4010-00-269-9341

Wire Rope

4010002699341 002699341 RR-W-410-5/8DIA RR-W-410, TY1, CL3, CON6, 600FT RRW410 RR-W-410-122 RRW-410-I36/600FT-IPS

Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications. View more Wire Rope

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
14

NATO Data Quality

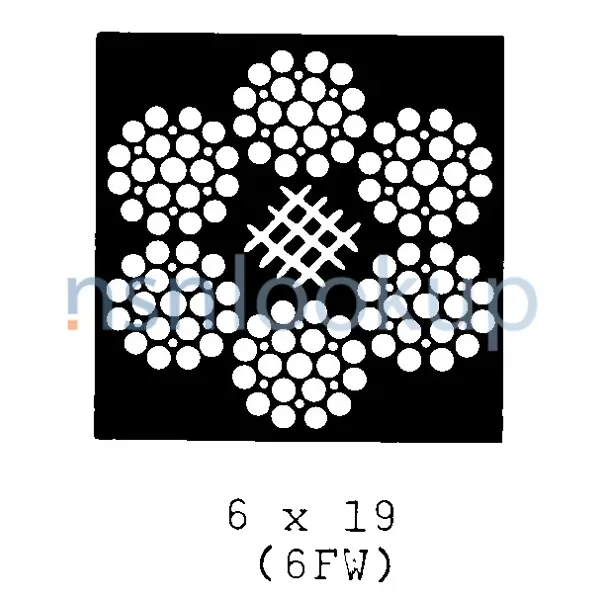

STYL Style A116 for 4010-00-269-9341 1/1 — NSN 4010-00-269-9341 (Identification) 1/1

Marketplace 4010-00-269-9341

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

RR-W-410 ROPE,WIRE RQST NS

Subscribe to View Vendor Details...

RR-W-00410 ROPE,WIRE 5458 RL NS

RR-W410 ROPE,WIRE 2250 RL NS

Updated Every Day

4010-00-269-9341 RQST NE

Updated Every Day

4010-00-269-9341 RQST

Updated Every Day

4010-00-269-9341 RQST NE

Restrictions 4010-00-269-9341

4010-00-269-9341 is a Wire Rope that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4010-00-269-9341

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4010-00-269-9341

US Army (A920)
Effective Date:: 1 May 2006
Former MOE Rule:: A183
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Marine Corps (MC41)
Effective Date:: 1 May 2006
Former MOE Rule:: MC04; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 May 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Spain (YB01)
Effective Date:: 1 Oct 2003

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Approved Sources 4010-00-269-9341

Part Number
Manufacturer
Status
RR-W-410, TY1, CL3, CON6, 600FT: 81348 - Federal Specifications Promulgated (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
RRW-410-I36/600FT-IPS: 81348 - Federal Specifications Promulgated (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
RR-W-410-5/8DIA: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 3
RRW410: 81348 - Federal Specifications Promulgated (Active); Transferred; RNCC E RNVC 8 DAC 4
RR-W-410-122: 81348 - Federal Specifications Promulgated (Active); Transferred; RNCC E RNVC 8 DAC E

Datasheet 4010-00-269-9341

Characteristic
Specifications
FIIG: A082A0
Breaking Strength [BZQQ]: 33150.000 Pounds Minimum
Core Construction [CTXX]: Wire
Diameter [ABMZ]: 0.625 Inches Minimum Rope And 0.656 Inches Maximum Rope
Material [MATT]: Steel Improved Plow Core
Material [MATT]: Steel Improved Plow Strand
Nondefinitive Spec/Std Data [ZZZT]: 1 Type And 3 Class And 6 Construction
Lay Method [AJXH]: Right Regular All Layers
Prefabrication Form [CTXY]: Preformed
Overall Length [ABHP]: 600.000 Feet Nominal
Style Designator [STYL]: 6 X 19 (6Fw)

Weapon Systems (WSDC) 4010-00-269-9341

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 4010-00-269-9341

Last Stock Position:: 7800 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4010-00-269-9341

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); RL; Subscribe; 1
Dec 2021: Department of the Army (DA); RL; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); RL; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); RL; Subscribe; 1
Oct 2019: Department of the Army (DA); RL; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Army (DA): A; K; U/I Contains 600 Ft; 00000000600FT
Department of the Navy (DN): N; K; U/I Contains 600 Ft; 00000000600FT
Defense Logistics Agency (DS): I; K; U/I Contains 600 Ft; 00000000600FT

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 4010-00-269-9341

Freight Information 4010-00-269-9341

4010-00-269-9341 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 107520. A Sub NMFC of X. It has a NMFC Description of WIRE ROPE/STRAND I/S. 4010-00-269-9341 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55290 which rates the freight between FCL and LCL. 4010-00-269-9341 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4010-00-269-9341 is not classified as a special type of cargo when transported by water. 4010-00-269-9341 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4010-00-269-9341

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; ASTM-D5118, Type CF, Class Domestic, Double Wall, Corrugated Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 4010-00-269-9341 9 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623F271C: 09 Jul 2023; Subscribe; 2; Subscribe; Subscribe
SPE4A623F149E: 19 May 2023; Subscribe; 2; Subscribe; Subscribe
SPE4A623F071C: 14 Apr 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623F5473: 10 Jan 2023; Subscribe; 6; Subscribe; Subscribe
SPE4A623F5473: 10 Jan 2023; Subscribe; 6; Subscribe; Subscribe
SPE4A622V001F: 28 Jan 2022; Subscribe; 2; Subscribe; Subscribe
SPE4A522P2941: 17 Dec 2021; Subscribe; 1; Subscribe; Subscribe
SPE4A621V705Z: 23 Aug 2021; Subscribe; 5; Subscribe; Subscribe
SPE4A621PH972: 29 Apr 2021; Subscribe; 4; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 4010-00-269-9341 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
